Setting up the S mix

The basic procedure for setting up and using your S mix miniature mixer takes only a few
minutes. Remove all packing materials (save them in case of need for future service) and
check to make sure that you remove the supplied AC/DC power adapter.
Note: Before plugging in and turning on, remember the "last on, first off" rule of power ampli-
fiers and powered speakers. When powering up your system, be sure that all the wires are con-
nected, turn your mixer and any other outboard gear on, and then last, turn your power amplifi-
er or powered speakers on. When powering down, turn your power amplifier or powered speak-
ers off first and then your mixer and outboard gear.

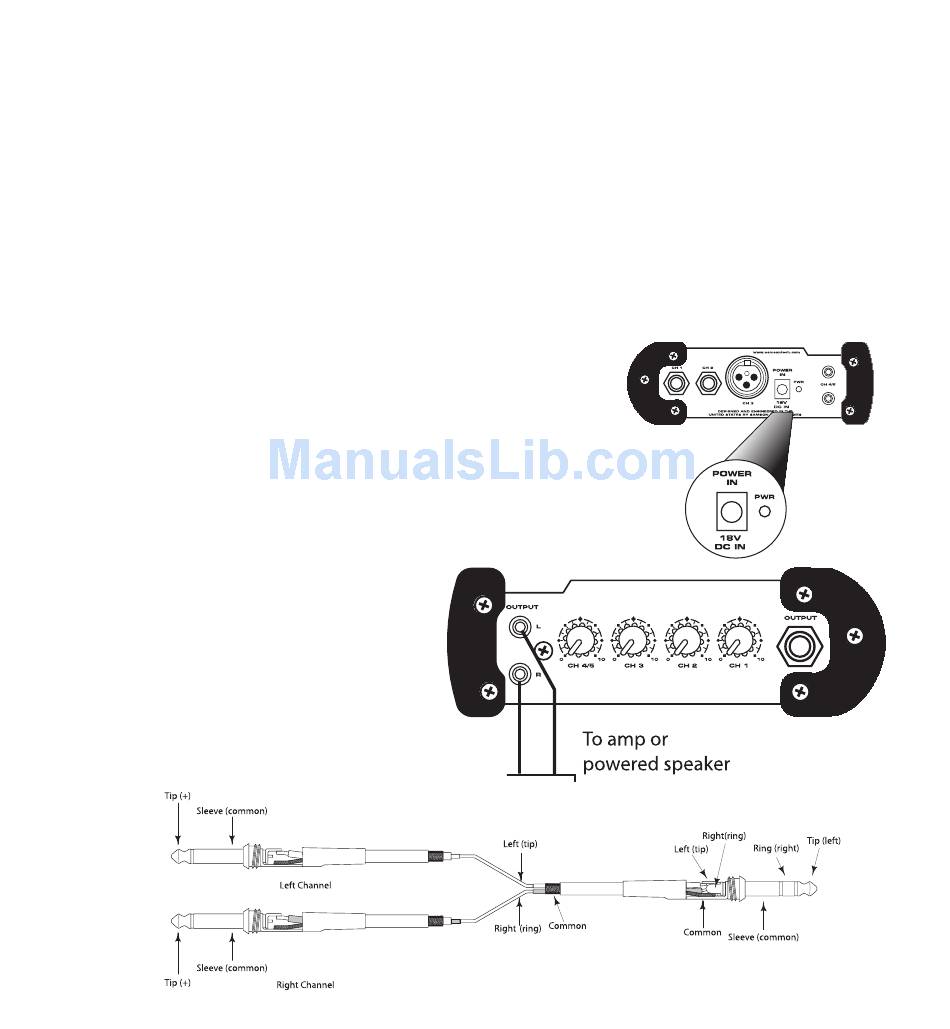

• Connect the supplied AC/DC adapter to the DC
Input on the rear panel of the S mix (Figure 1), then
plug the adapter into any standard AC outlet.
• Set the S mix volume control knobs to the following
default positions: All off. (Figure 2):
• Connect the S mix outputs to your power amp or
powered speaker using the Left
and Right RCA OUTPUT, or the
1/4" TRS jack OUTPUT connec-
tors.
Below is a wiring diagram for the
1/4" TRS stereo OUTPUT connector
(Figure 3).
Figure 3
Figure 2
5

Operating the S mix

Figure 1
