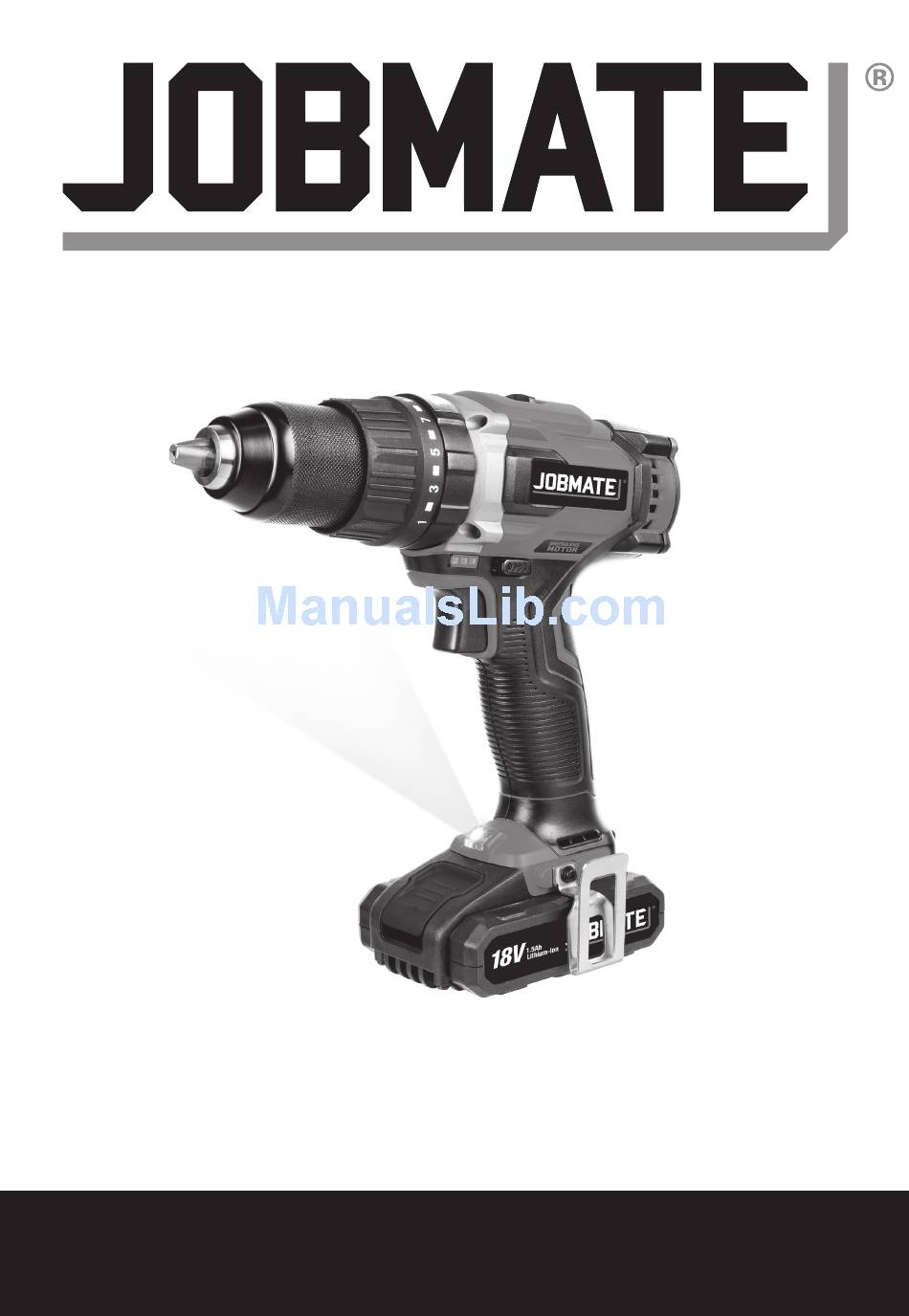

SAFETY AND OPERATING MANUAL
18V
BRUSHLESS HAMMER DRILL KIT
JMCDI218GB. 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JMCDI218GB.1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for jobmate JMCDI218GB.1

Summary of Contents for jobmate JMCDI218GB.1

  • Page 1 SAFETY AND OPERATING MANUAL BRUSHLESS HAMMER DRILL KIT JMCDI218GB. 1...

  • Page 3: General Power Tool Safety Warnings

    GENERAL POWER TOOL 3) PERSONAL SAFETY a) Stay alert, watch what you are doing and SAFETY WARNINGS use common sense when operating a power tool. Do not use a power tool while you are WARNING! Read all safety warnings and all tired or under the influence of drugs, alcohol instructions.

  • Page 4: Safety Warnings For Battery Pack

    ADDITIONAL SAFETY children and do not allow persons unfamiliar with the power tool or these instructions POINTS FOR YOUR BATTERY to operate the power tool. Power tools are OPERATED DRILLS & IMPACT dangerous in the hands of untrained users. e) Maintain power tools. Check for DRILL misalignment or binding of moving parts, breakage of parts and any other condition...
  • Page 5 SYMBOLS l) Battery pack gives its best performance when it is operated at normal room temperature (20°C ± 5°C). To reduce the risk of injury, user must m) When disposing of battery packs, keep battery read instruction manual packs of different electrochemical systems separate from each other.

  • Page 7: Component List

    COMPONENT LIST 1. Keyless chuck 2. Torque adjustment ring 3. Hammer / screw driving / drilling adjustment ring 4. Two-speed gear control 5. Forward/Reverse rotation control 6. On/off switch 7. Soft grip handle 8. Belt Clip 9. Battery pack 10. Battery pack release button 11.

  • Page 8: Operating Instructions

    OPERATING INSTRUCTIONS NOTE: Before using the tool, read the instruction book carefully. INTENDED USE The machine is intended for driving in and loosening screws as well as for drilling in wood, metal and plastic. The machine is also intended for impact drilling in brick, concrete and stone as well as for drilling in wood, metal and Fig.A plastic.
  • Page 9 Fig.B2 OPERATION 1. ON / OFF SWITCH (SEE FIG. C) Depress the On/Off switch (6) to start and release it to stop your drill. The on/off switch is fitted with a brake function which stops your chuck immediately when you quickly release the switch.
  • Page 10 Fig.E2 5. TWO-SPEED GEAR CONTROL (SEE FIG. F) The drill has a two-speed gear control (4) designed for drilling or driving at Low (mark is 1) or High (mark is 2) speeds. A slide switch is located on top of the drill to select either Low or High speed.
  • Page 11 Fig.H 8. AUTOMATIC SPINDLE LOCK (SEE FIG. I) The automatic spindle lock allows you to use it as a regular screwdriver. You can give an extra twist to firmly tighten a screw, loosen a very tight screw or continue working when the battery energy has expired.

  • Page 12: Problem Solution

    Fig.I authority for information regarding available recycling and/ or disposal options. Discharge your battery pack by operating your drill, then remove the battery pack from the drill housing and cover the battery pack connections with heavy-duty adhesive tape to prevent short circuit and energy discharge. Do not attempt to open or remove any of the components.

  • Page 13: Maintenance

    3. REASONS FOR DIFFERENT BATTERY PACK WORKING TIMES Charging time problems, as above, and having not used a battery pack for a prolonged time will reduce the battery pack working time. This can be corrected after several charge and discharge operations by charging &...
