Page 92 - 4. Patching
•
[Options], [AutoGroups] sets whether the console will automatically create
groups from the fixtures you patch. If Enabled, a group is created for all fixtures
of the same type, and another if you patch a quantity of fixtures.
•
To show the DMX address for fixtures, press <View/Open> then <Patch>. To
show patch details for a single fixture press <View/Open> then the fixture select
button. On touch buttons the DMX address is displayed on the top right of the
button in the format {DMX line}.{Address} (this display can be disabled using the
context menu).
•
If a patch goes over the capacity of a DMX line, the console will patch at the
beginning of the next line. For example if you try to patch a moving head fixture
at channel 1.510, it will actually be patched at 2.1.
•

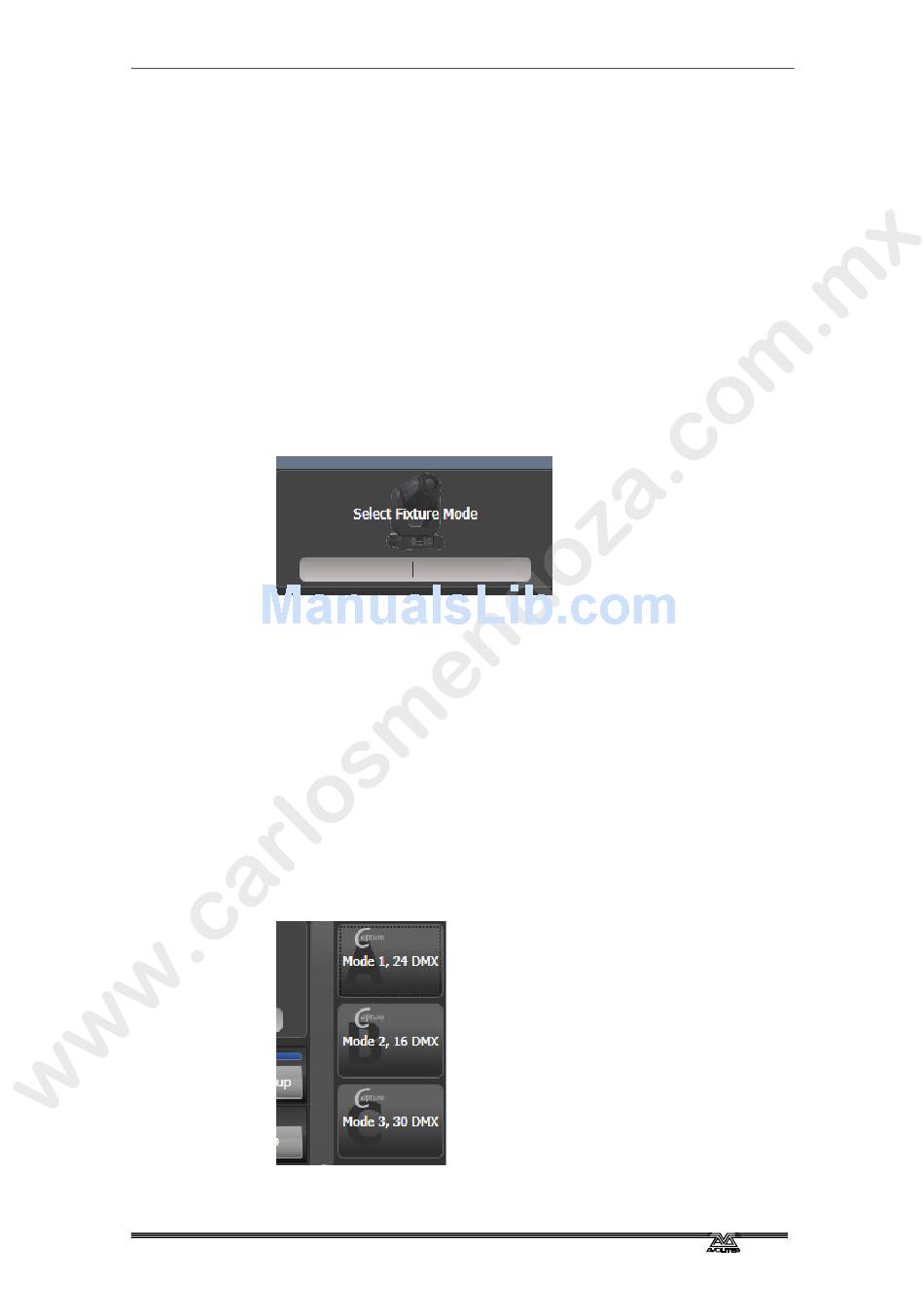

The console will show a picture of the fixture you select in the prompt area to
help you check you have got the right one (if provided in the fixture personality;
some fixtures do not include this information)
4.1.4

CAPTURE VISUALISER AUTO PATCH

If you want to use Capture Visualiser, start it by pressing <View/Open> then [Open
Workspace Window] then [Visualiser]. Some consoles also have a dedicated <Visualiser>
button. Capture will open in a workspace window with an automatic representation of
your patch.
You will see the fixtures you have patched laid out on screen in handle number order.
You can then use the Visualiser controls to reposition the fixtures if you wish – see
chapter 11.
•
You can turn off Auto Patch in the Capture Visualiser settings.
•
Fixture modes which will work with Auto Patch show a Capture icon in the
button. If the icon is not shown, that fixture mode isn't supported in the
integrated Capture.
