Operating Guide
Read this document when using the AK-HRP1000G Remote Operation Panel in
conjunction with AW-HR140 or AW-HE130 Series HD Integrated Cameras.
For details of operating Remote Operation Panel AK-HRP1000G, please
visit the Panasonic website (http://pro-av.panasonic.net/en/manual/index.
html), and refer to the Operating Instructions (HTML or PDF).
W0817MN0 -PS

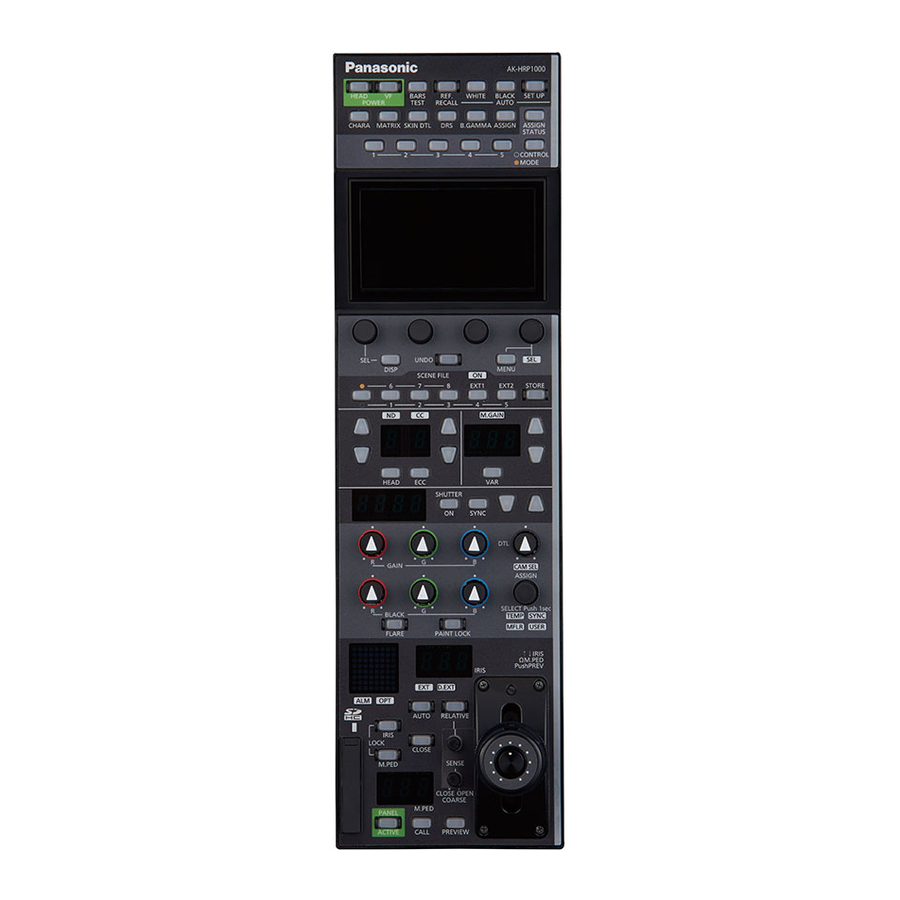

Remote Operation Panel
  AK-HRP1000G
Model No.
ENGLISH
DVQP1627ZA

Advertisement

   Also See for Panasonic AK-HRP1000G

   Related Manuals for Panasonic AK-HRP1000G

   Summary of Contents for Panasonic AK-HRP1000G

  • Page 1 Remote Operation Panel   AK-HRP1000G Model No. Read this document when using the AK-HRP1000G Remote Operation Panel in conjunction with AW-HR140 or AW-HE130 Series HD Integrated Cameras. For details of operating Remote Operation Panel AK-HRP1000G, please visit the Panasonic website (http://pro-av.panasonic.net/en/manual/index.
  • Page 2: Table Of Contents

    Table of Contents Connecting the Unit to AW-HR140/AW-HE130 Series Cameras Connection examples Connections Compatible Functions List ROP Menu (when AW-HR140/AW-HE130 is connected) ROP menu list 01 SHUTTER SPEED 02 PEDESTAL 03 CHROMA 04 GAIN 05 WHITE BALANCE 06 GAMMA 07 KNEE 08 WHITE CLIP 09 DETAIL 10 MATRIX...
  • Page 3: Connecting The Unit To Aw-hr140/aw-he130 Series Cameras

    Connecting the Unit to AW-HR140/AW-HE130 Series Cameras Connecting the Unit to AW-HR140/AW-HE130 Series Cameras Connection examples Serial connection with AW-HR140 IP connection with AW-HR140 HD Integrated Camera HD Integrated Camera AW-HR140 AW-HR140 External DC External DC power supply power supply <RS-422>...
  • Page 4 LAN cable (straight cable) cable specifications. PoE compatible switching hub or injector Switching hub with PoE support LAN cable (straight cable) Serial connection cable specifications AK-HRP1000G [CCU] connector side AW-HR140/AW-HE130 Pin No. Function Polarity Flow of signal <RS-422> connector side (RJ45)
  • Page 5: Connections

    Connecting the Unit to AW-HR140/AW-HE130 Series Cameras Connections Set the connection setting to [Serial(AW2)] or [LAN(AW2)] in the [CONNECT SETTING] menu. NOTE To connect with the AW-HR140/AW-HE130, upgrade the system version of the unit to 4.30-00-0.00 or later. When connecting, observe the following points. Serial connection Use a dedicated cable to connect the [CCU] connector of this unit to the <RS-422>...
  • Page 6: Compatible Functions List

    Connecting the Unit to AW-HR140/AW-HE130 Series Cameras Compatible Functions List When the unit is used in conjunction with an AW-HR140 Series or AW-HE130 Series HD Integrated Camera, there will be functions that are limited or disabled for some of the unit’s buttons, dials, and other controls. Be sure to refer to the following table. Front panel 1 Front panel 2 Front panel 3...
  • Page 7 Connecting the Unit to AW-HR140/AW-HE130 Series Cameras ✓ : Enabled Number Part name Remarks ×: Disabled ✓ [ASSIGN STATUS] button ✓ Front panel 2 Buttons [1] to [5] (CONTROL/MODE) ✓ [CONTROL/MODE] button ✓ LCD panel ✓ [MENU] dial ✓ Front panel 3 [EXIT] button ✓...
  • Page 8 Connecting the Unit to AW-HR140/AW-HE130 Series Cameras ✓ : Enabled Number Part name Remarks ×: Disabled ✓ [GAIN R] and [GAIN B] dials [GAIN G] dial × ✓ [BLACK R] and [BLACK B] dials Only the pedestal can be adjusted. [BLACK G] dial ×...
  • Page 9 Connecting the Unit to AW-HR140/AW-HE130 Series Cameras ✓ : Enabled Number Part name Remarks ×: Disabled ✓ Camera number/tally display ✓ [ALM] indicator [OPT] indicator × ✓ [PANEL ACTIVE] button Front panel 9 [CALL] button × ✓ [PREVIEW] button ✓ Memory card slot ✓...
  • Page 10: Rop Menu (when Aw-hr140/aw-he130 Is Connected)

    ROP Menu (when AW-HR140/AW-HE130 is connected) ROP Menu (when AW-HR140/AW-HE130 is connected) ROP menu list When an AW-HR140/AW-HE130 HD Integrated Camera is connected, the ROP menu will be as follows. The setting values will vary depending on the connected model. Depending on the model, unsupported functions will be displayed as [-]. For details on menu operations, refer to the following sections in the Operating Instructions.
  • Page 11 ROP Menu (when AW-HR140/AW-HE130 is connected) “TYPE” (see page 26) TYPE COLOR CORRECT “COLOR CORRECT” (see page 26) “SAT” (see page 26) PHASE “PHASE” (see page 26) “SAT B_Mg” (see page 26) SAT B_Mg “PHASE B_Mg” (see page 26) PHASE B_Mg “SAT Mg”...
  • Page 12 ROP Menu (when AW-HR140/AW-HE130 is connected) “FOCUS MODE” (see page 32) FOCUS MODE FOCUS SPEED “FOCUS SPEED” (see page 32) FOCUS “FOCUS” (see page 32) ZOOM WIDE “ZOOM WIDE” (see page 32) “ZOOM SPEED” (see page 32) 16 LENS CONTROL ZOOM SPEED “ZOOM TELE”...
  • Page 13 ROP Menu (when AW-HR140/AW-HE130 is connected) CONTROL(MENU)1 Refer to the following section in the Operating Instructions. “34 ROP SETTING” CONTROL(MENU)2 CONTROL(MENU)3 CONTROL(MENU)4 CONTROL(MENU)5 MODE(ON/OFF)1 MODE(ON/OFF)2 MODE(ON/OFF)3 MODE(ON/OFF)4 MODE(ON/OFF)5 ECC BTN CTRL ASSIGN BUTTON USER ASSIGN IRIS LEV MOD CAMERA SELECT DTL VOL SKIN DTL SW LCD BRIGHT...
  • Page 14 ROP Menu (when AW-HR140/AW-HE130 is connected) ROP IP ADDRESS Refer to the following section in the Operating Instructions. “36 ROP IP SETTING” ROP PORT UPLOAD ROP SUBNET MASK 21 ROP IP SETTING UPLOAD ROP DEFAULT GATEWAY UPLOAD MAC ADDRESS CAM1 to CAM99 IP ADDRESS Refer to the following section in the Operating Instructions.
  • Page 15: Shutter Speed

    ROP Menu (when AW-HR140/AW-HE130 is connected) 01 SHUTTER SPEED Item Setting details MODE Selects the operation mode of the shutter. SPEED Sets the shutter speed. The setting can be changed when [MODE] is [STEP]. The shutter speed of [SYNC] is not displayed. - 15 -...
  • Page 16: Pedestal

    ROP Menu (when AW-HR140/AW-HE130 is connected) 02 PEDESTAL Item Setting details M.PED Adjusts the black level of the master pedestal. PED R Sets the correction level of red to the master pedestal. PED B Sets the correction level of blue to the master pedestal. - 16 -...
  • Page 17: Chroma

    ROP Menu (when AW-HR140/AW-HE130 is connected) 03 CHROMA Item Setting details LEVEL (%) Sets the color intensity of images. - 17 -...
  • Page 18: Gain

    ROP Menu (when AW-HR140/AW-HE130 is connected) 04 GAIN [SUPER GAIN] is a function for only the AW-HR140. Item Setting details SUPER GAIN Enables/disables the super gain (increased sensitivity) function. GAIN Adjusts the gain of images. AGC MAX GAIN When [AUTO] is selected as the [GAIN] setting, the maximum gain-up amount can be set. - 18 -...
  • Page 19: White Balance

    ROP Menu (when AW-HR140/AW-HE130 is connected) 05 WHITE BALANCE [ATW SPEED] and [ATW WIDTH] are functions for only the AW-HR140. Item Setting details MODE Sets the white balance mode. COLOR TEMP Sets color temperature settings. GAIN R Adjusts the R gain. GAIN B Adjusts the B gain.
  • Page 20: Gamma

    ROP Menu (when AW-HR140/AW-HE130 is connected) 06 GAMMA Item Setting details TYPE Selects the type of gamma curve. GAMMA Adjusts the gamma correction level. Sets the DRS function which performs correction when video with high light/dark contrast is displayed. - 20 -...
  • Page 21: Knee

    ROP Menu (when AW-HR140/AW-HE130 is connected) 07 KNEE Item Setting details KNEE MODE Sets the operating mode for gradation compression (knee). KNEE POINT Sets the compression level (knee point) position for high-brightness video signals. KNEE SLOPE Sets the knee slope. - 21 -...
  • Page 22: White Clip

    ROP Menu (when AW-HR140/AW-HE130 is connected) 08 WHITE CLIP Item Setting details WHITE CLIP Enables/disables the white clip function. WHITE CLP LV(%) Sets the white clip level. - 22 -...
  • Page 23: Detail

    ROP Menu (when AW-HR140/AW-HE130 is connected) 09 DETAIL Item Setting details M.DTL Adjusts the level of master detail. V DTL LEVEL Adjusts the level of vertical detail. DTL BAND Sets the boost frequency for detail. NOISE SUPPRESS Reduces the screen noise which is generated by the detail effect. FLSHTN NIS SUP.
  • Page 24: Matrix

    ROP Menu (when AW-HR140/AW-HE130 is connected) 10 MATRIX Item Setting details TYPE Selects the type of color matrix. Adjusts the linear matrix between red and green. Adjusts the linear matrix between red and blue. Adjusts the linear matrix between green and red. Adjusts the linear matrix between green and blue.
  • Page 25: Color Correction

    ROP Menu (when AW-HR140/AW-HE130 is connected) 11 COLOR CORRECTION - 25 -...
  • Page 26 ROP Menu (when AW-HR140/AW-HE130 is connected) Item Setting details TYPE Selects the type of color matrix. COLOR CORRECT Selects the color component in 12-axis matrix memory to adjust. Adjusts the saturation of the color component selected in [COLOR CORRECT]. PHASE Adjusts the hue of the color component selected in [COLOR CORRECT].
  • Page 27 ROP Menu (when AW-HR140/AW-HE130 is connected) Item Setting details PHASE G_Cy Adjusts the hue between green and cyan. SAT Cy Adjusts cyan color saturation. PHASE Cy Adjusts cyan hue. SAT Cy_B Adjusts the color saturation between cyan and blue. PHASE Cy_B Adjusts the hue between cyan and blue.
  • Page 28: Dnr

    ROP Menu (when AW-HR140/AW-HE130 is connected) 12 DNR Item Setting details Sets the level for the noise reduction. - 28 -...
  • Page 29: Digtal Haze Clear

    ROP Menu (when AW-HR140/AW-HE130 is connected) 13 DIGTAL HAZE CLEAR Item Setting details LEVEL Sets the level of the haze elimination. The larger the value, the stronger the haze elimination effect. Enables/disables the haze elimination function. - 29 -...
  • Page 30: Housing

    ROP Menu (when AW-HR140/AW-HE130 is connected) 14 HOUSING Operation is possible only for the AW-HR140. Item Setting details Sets the cooling fan operation. HEATER Sets the heater operation. DFRSTR Sets the defroster device operation. WIPER Sets the wiper operation. WASHER(push) Clean the lens by spraying washer fluid on to it.
  • Page 31: Brightness

    ROP Menu (when AW-HR140/AW-HE130 is connected) 15 BRIGHTNESS Item Setting details PICTURE LEVEL Sets the target picture level for auto exposure correction. FRAME MIX Selects for frame addition (gain-up using sensor storage) amount. DAY/NIGHT Switches between standard shooting (day mode) and night-vision shooting (night mode: shooting with infrared light).
  • Page 32: Lens Control

    ROP Menu (when AW-HR140/AW-HE130 is connected) 16 LENS CONTROL Item Setting details FOCUS MODE Selects auto or manual mode for the focus adjustment function. FOCUS SPEED Adjusts the focus operation speed. FOCUS Adjusts the lens focus manually. ZOOM WIDE Adjusts the lens zoom to wide angle (Wide). ZOOM SPEED Adjusts the zoom operation speed.
  • Page 33: System Cam

    ROP Menu (when AW-HR140/AW-HE130 is connected) 17 SYSTEM CAM [FREQUENCY], [3G SDI OUT], and [I.S.] are functions for only the AW-HR140. Item Setting details FORMAT Displays the system format. FREQUENCY Displays the frame frequency. 3G SDI OUT When the video format is 1080/59.94p or 1080/50p, select the format for outputting 3G-SDI signals. I.S.
  • Page 34: Camera Menu Control

    ROP Menu (when AW-HR140/AW-HE130 is connected) 18 CAMERA MENU CONTROL Item Setting details MENU ON/OFF Turns the menu on or off. CURSOR/PARAMETER Moves the menu cursor or changes setting values. EXECUTE Executes the selected process. - 34 -...
  • Page 35: Rop Setting

    ROP Menu (when AW-HR140/AW-HE130 is connected) 19 ROP SETTING For details on operations and settings, refer to the following sections in the Operating Instructions. “34 ROP SETTING” - 35 -...
  • Page 36: Connect Setting

    ROP Menu (when AW-HR140/AW-HE130 is connected) 20 CONNECT SETTING Item Setting details CONNECT MODE(push) CAM1 Sets the connection method for camera 1. Changes to settings are applied by pressing the [MENU] dial. Select [LAN(AW2)] and [Serial(AW2)] when connecting with the AW-HR140 series and AW-HE130 series.
  • Page 37: Rop Ip Setting

    ROP Menu (when AW-HR140/AW-HE130 is connected) 21 ROP IP SETTING For details on operations and settings, refer to the following sections in the Operating Instructions. “36 ROP IP SETTING” 22 CAMERA IP SETTING For details on operations and settings, refer to the following sections in the Operating Instructions. “37 CAMERA IP SETTING”...
