Description

2 Description
2.1

Overview

Anybus X-gateway PROFINET IRT (2.32) is a multi purpose communication solution offering in-
dustrial protocol support as well as web and email capabilities. It acts as a PROFINET device
(slave), which means it can be accessed by a PROFINET controller (master), but it will not ini-
tiate communication by itself.
The PROFINET IRT network interface exchanges data via two memory buffers that can be ac-
cessed via a built in webserver or via industrial network protocols such as PROFINET IO.
Input Buffer
Output Buffer

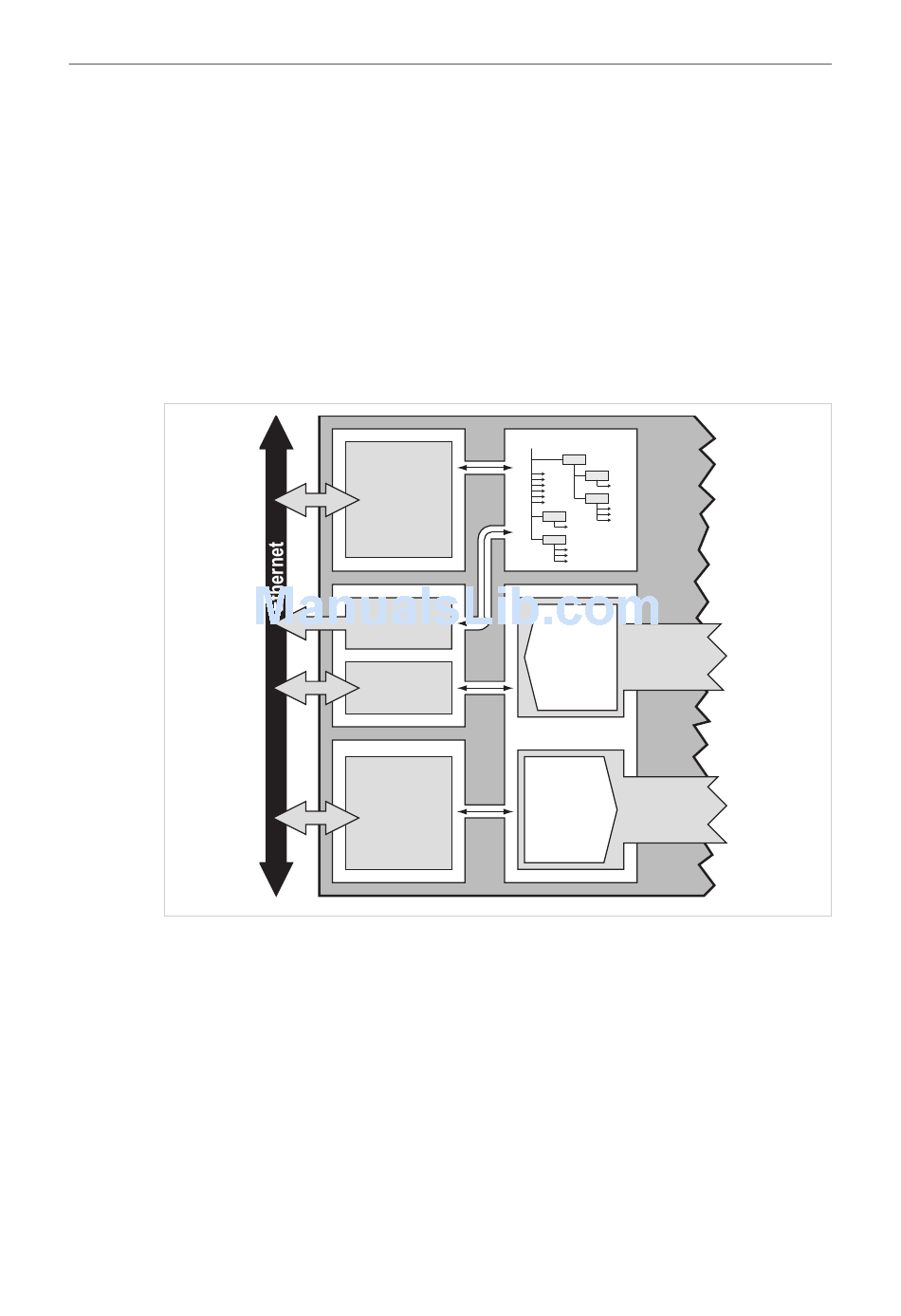

Fig. 1 Overview of data flow
See also PROFINET Data Exchange, p.
®
Anybus X-gateway ™ PROFINET
Contains data coming from the gateway, i.e. data from another network.
Contains data to be sent through the gateway to another network.
FTP Server
Email Client
Web Server
PROFINET IO
Server
®
IRT (2.32) Interface Network Guide
Filesystem
Input
Buffer
Output
Buffer
13.
5 (18)
(from Gateway)
(to Gateway)
