Description

2 Description
2.1

Overview

The Anybus X-gateway IIoT Interface allows you to seamlessly interconnect a PLC and its
connected devices to IIoT networks using MQTT and OPC UA.
2.2

Connectors

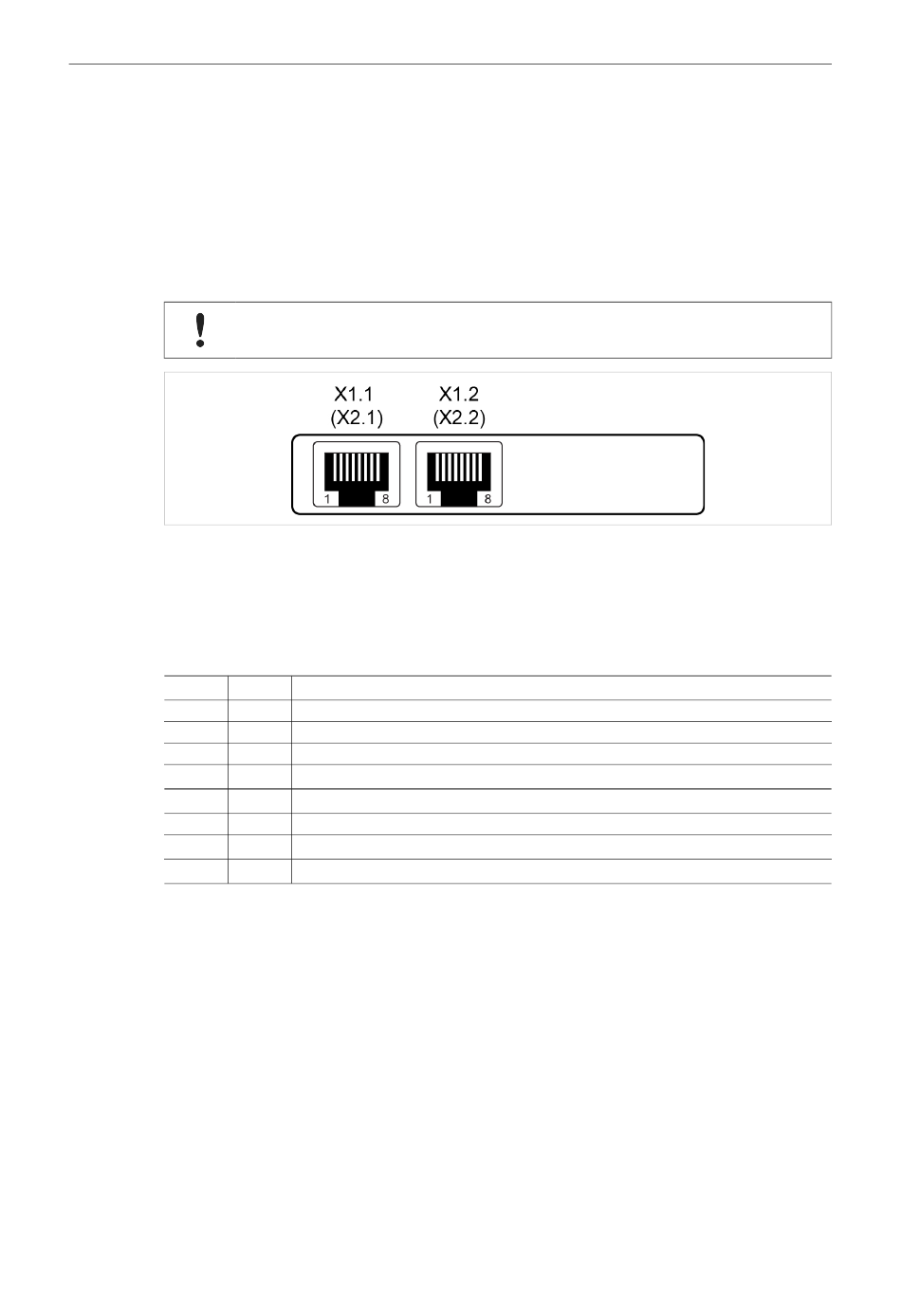

Fig. 1 IIoT interface
Ethernet Connectors
The IIoT interface contains a dual port Ethernet switch with RJ45 type connectors. The two
Ehernet ports are labeled X1.1 and X1.2 if the interface is top-mounted, and X2.1 and X2.2 if
the interface is bottom-mounted.
Pin Signal
1 TD+
2 TD-
3 RD+
-
4
-
5
6 RD-
-
7
-
8
IIoT User Manual
This product contains parts that can be damaged by electrostatic discharge (ESD).
Use ESD prevention measures to avoid damage.
Description
Transmit data +
Transmit data -
Receive data +
(reserved)
(reserved)
Receive data -
(reserved)
(reserved)
