TCP/IP Configuration

4.2.1 Installing the IPconfig Utility
IPconfig is a Windows-based tool for configuration of TCP/IP settings in HMS devices. The tool
will detect all compatible and active HMS devices on the local network.
1. Download IPconfig from www.anybus.com/support.
2. Unpack the contents of the zip archive and run the installer program.
4.2.2 Scanning for Connected Devices
When IPconfig is started it will automatically scan all available local networks for HMS devices.
Detected devices will be listed in the main window. To refresh the list, click on Scan.

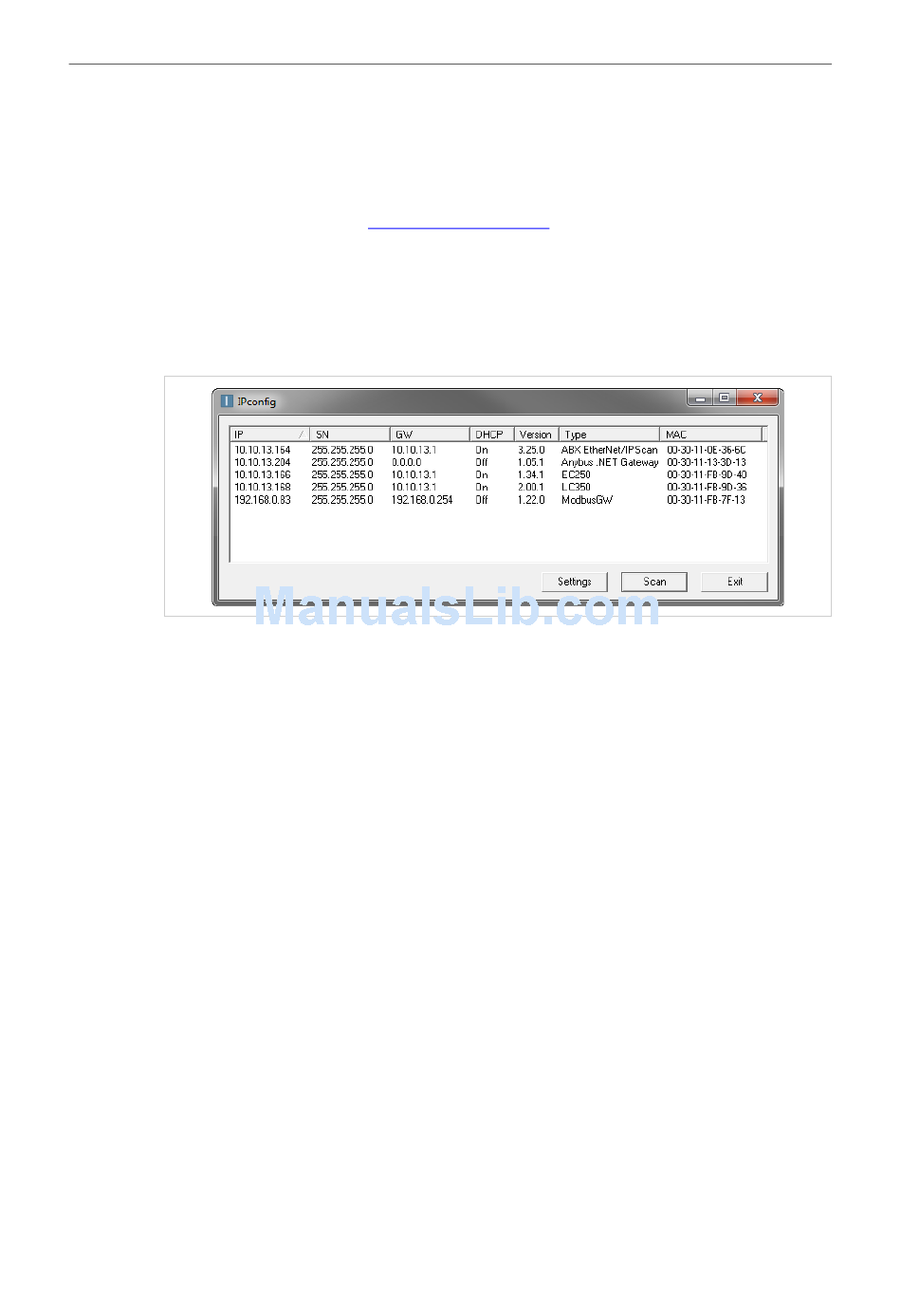

Fig. 6 IPconfig main window
IP
SN
GW
DHCP
Version
Type
MAC
®
Anybus X-gateway ™ PROFINET
IP address of the device
Subnet mask
Default gateway
Automatically managed IP configuration
Firmware version
Product name
Ethernet MAC address (System ID)
®
