Masibus 408-M Quick User Manual

Quick User Guide
DIGITAL INDICATOR
SPECIFICATIONS
Input type Range
PT100 (0.1ºC) -199.9 to 850.0 ºC
PT100 (1ºC)
-200 to 850ºC
J -199.9 to 1200ºC
K -199.9 to 1372ºC
T
-199.9 to 400ºC
R 0 to 1768ºC
S 0 to 1768ºC
*4-20mA /1- -1999 to 9999
5VDC (Field Scalable)
*0-20mA /0-
5VDC
0-10VDC
*Use external 250ohms, 0.1% for current Input
Table 1.1
Inputs
Input Type Thermocouple, RTD
(Pt100), Current, Voltage
Accuracy
T /C and RTD : +0.25% of FS + 1 degree
Linear: +0.1% of FS + 1 count
Resolution ADC:16bits
Display:0.1°C/1°C
Sampling Rate 5 Samples/Sec
CJC Error ±2.0 °C Max
Sensor Burnout 0.25uA
current
RTD excitation 0.166mA (Approx.)
current
Allowable Maximum 15 ohms/wire
wiring (Conductorresistance
resistance for between three wires
RTD should be equal)
Doc.Ref. No. m61C/QG/501 Issue No.:00
NMRR > 40 dB
408-M CMRR > 120 dB
Input > 1MΩ (Voltage Input)
Impedance 250Ω (Current Input)
Max Voltage 20VDC
Display & Keys
PV 4-Digit 7-Segment, 0.8" High,Red
Keys Enter,Increase,Decrease
Output Types
Loop Power 24VDC (±10%)
Supply @26mAwith Inbuilt Short
Circuit Protection
Power Supply
Standard 85-265VAC/ 100-
300VDC
Optional 18-36VDC
Power <5VA
consumption
Isolation (Withstanding voltage)
Between primary terminals* and secondary

terminals**:
At least 1500 V AC for 1 minute
Between primary terminals* and grounding

terminal:
At least 1500 V AC for 1 minute
Between grounding terminal and secondary

terminals**:
At least 1500 V AC for 1 minute
Between secondary terminals**:

At least 500 V AC for 1 minute
* Primary terminals indicate power terminals
and relay output terminals.
** Secondary terminals indicate analog I/O
signal and Communication O/P.
Insulation resistance: 20MΩ or more at 500
V DC between power terminals and grounding
terminal.
Physical
Dimension
(WxHx D)mm
Front Bezel(H x W)mm
Panel Cutout mm
Depth Behind Panel mm
Weight Approx.
Enclosure Material
Enclosure Protection
Terminal Cable Size
Environmental Conditions
TEMPCO
Humidity
Ambient
temperature
Storage
Temperature
Advance Feature
 Input scalability for linear input
MOUNTING DETAILS
ORDERING CODE
Model Input
408-M 1
2
3
4
5
6 Pt-100
C 4-20mA
D 0-20mA
E 1-5 V
F 0-5 V
G 0-10 V
96 x 48 x 85
48 x 96
TERMINAL CONNECTIONS
92 x 46
75
Terminal No.
260g.
ABS Plastic
1 LPS+
IP 20
2.5mm 2
< 100ppm/°C 2 C+
20% to 95% RH
(Non-Condensing) 3 TC+/ V+
0 to 55°C
4 TC- / V- / LPS-
9 L/+
0 to 80°C
10 N/-
SAFETY/WARNING PRECAUSTIONS
To ensure that the device can be operated
safely and all functions can be used, please read
these instructions carefully.
Installation and Start-up must be carried out by
qualified personnel only. The relevant county-
specific regulations must also be observed.
Before start-up it is particularly important to
ensure:
Auxiliary Power
 Terminal wiring: check that all cables are
Supply
correctly connected according to the connection
J diagram
85-265 VAC /
U1
 All wiring
K 100-300 VDC
standards of good practice and local codes and
T U2 18-36 VDC
regulations. Wiring must be suitable for voltage,
R
current and temperature rating of the system.
S
 Unused control terminals should not be used
as jumper points as they may be internally
connected, which may cause damage to the
unit.

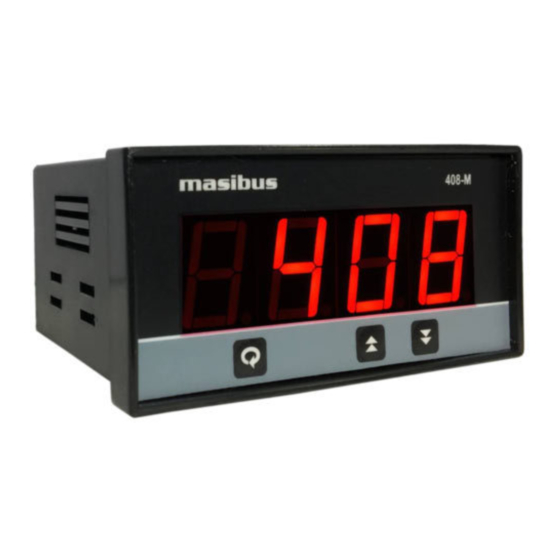

FRONT PANEL DESCRIPTION
Name of
Part
Description
Increment
24VDC Loop power Key
supply Terminal 4 is
ground Reference.
For RTD Input Only
(Three wire
Compensation).
For Thermocouple, RTD
&Linear Input
Power Supply Input
must confirm to appropriate
Symbol Function
 Increment the
Value of any
Parameter in edit
mode.
 Shuffle to next
parameter in the
Sub Menu
Page 1 of 2
