B. DDNS
When the user connects to the Internet through ADSL (PPPOE Service), the IP address that you
receive from ISP is usually a dynamic IP Address. Therefore when someone wants to visit your
device they are usually not able to because the IP Address is dynamic and it will keep changing.
By using DDNS this problem is solved.
Below we will explain using the DDNS service provided by www.dyndns.com:
1.) First, apply for a domain name (Ex. yourdomain@dyndns.org) in www.dyndns.com for the
9258.
2.) Set the domain password and select the proper DNS server (for example, dnsdojo.net) for
domain name resolve.
Then input the Domain Name Server (host name), user name, password, and, etc in the DDNS
webpage of 9258.
After you have set every up correctly every time the 9258 start or user selects submit, the 9258
will send a message package including its current IP address, domain name to
www.dyndns.com, then the DNS server you choose will link the domain name of 9258 to its
current IP address. That way the visitor can visit the 9258 webpage by inputting the domain
name of 9258 (abcdefg.dnsdojo.net) in the address column of the browser.

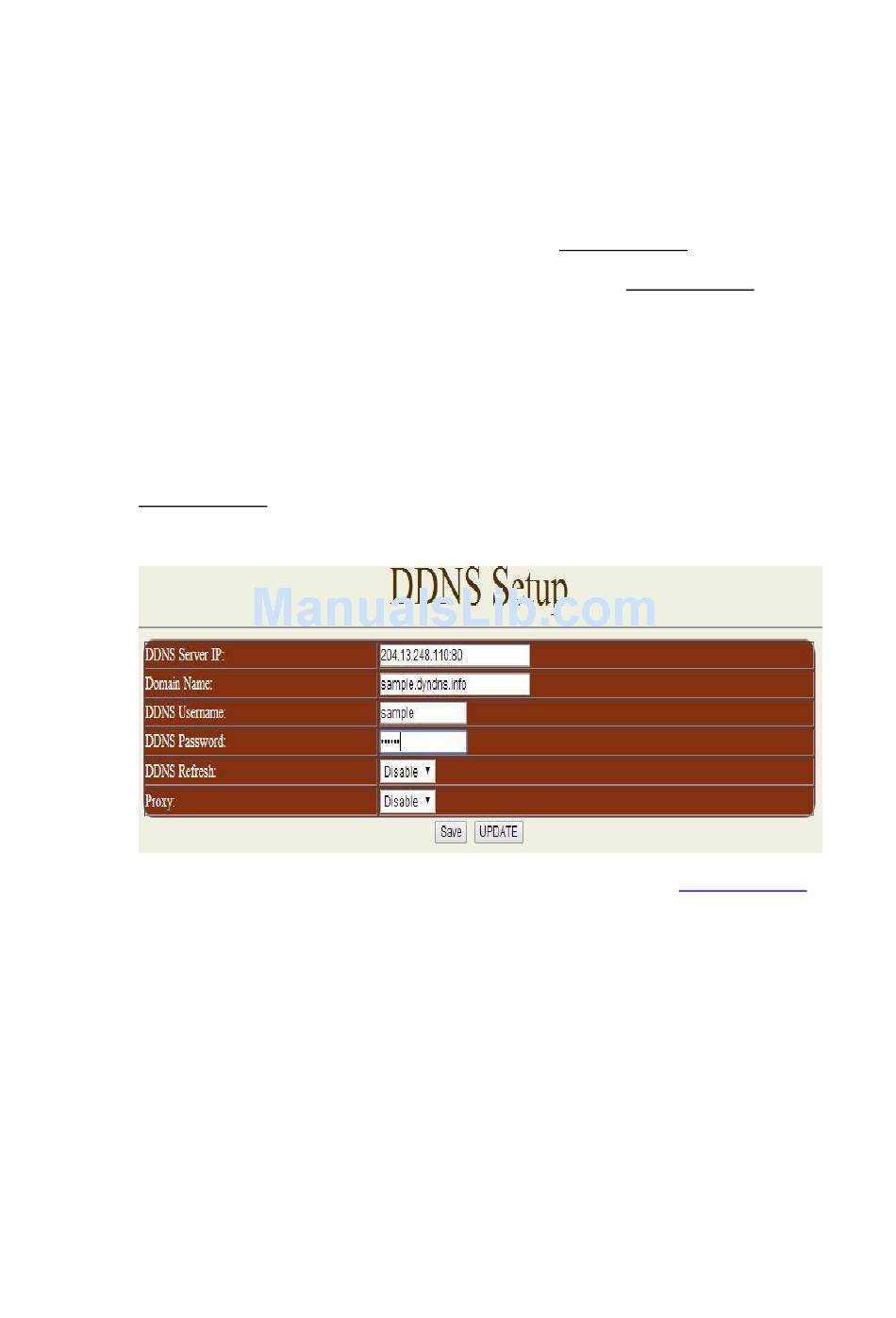

- DDNS Server IP: Type in the IP Address and port number provided by
Please refer to the figure above for reference.
- Domain Name : Please type in the domain name that you have chosen to use.
- DDNS UserName: Enter your DDNS User Name here
- DDNS Password: Enter your DDNS password here
- DDNS Refresh = Enable /Disable DDNS: This setting allows you to enable DDNS or
disable. Select True – If you want to enable DDNS and Select False – If you want to disable
DDNS
Proxy : If you need to use a proxy Server, Select True – to enable proxy and Select False –
-
to disable proxy.
Note: Once you are done setting up these configuration settings make sure you hit the
Save Button and then the Update to confirm completion
