Sonnet Thunderbolt 3 Quick Start Manual

Connecting Dual 4K Monitors

1. Plug in the Sonnet adapter's Thunderbolt 3 (USB-C) connector
into a Thunderbolt 3 port on your computer.
2. Connect a DisplayPort cable (not included) between each port on
the Sonnet adapter and a port on each monitor.
3. Power on your displays and computer; the monitors will be
recognized immediately. Make any display settings changes as
necessary.

Connecting a Single 5K Monitor

1. Plug in the Sonnet adapter's Thunderbolt 3 (USB-C) connector
into a Thunderbolt 3 port on your computer.
2. Connect two DisplayPort cables (not included) between the ports
on the Sonnet adapter and ports on the monitor.
3. Power on your display and computer; the monitor will be
recognized immediately. Make any display settings changes as
necessary.

Need More Information?

Please visit www.sonnettech.com/support/kb/kb.php, click on the
Thunderbolt link, and then click on the Thunderbolt 3 to Dual
DisplayPort Adapter link for important information, useful tips, and
answers to frequently asked questions.

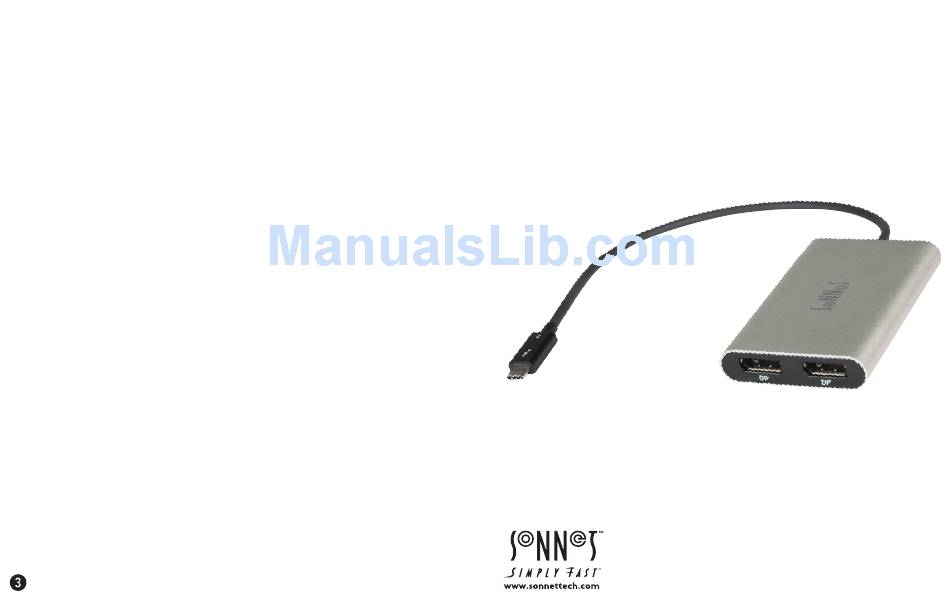

Quick Start Guide

for Sonnet Thunderbolt
Dual DisplayPort
™
