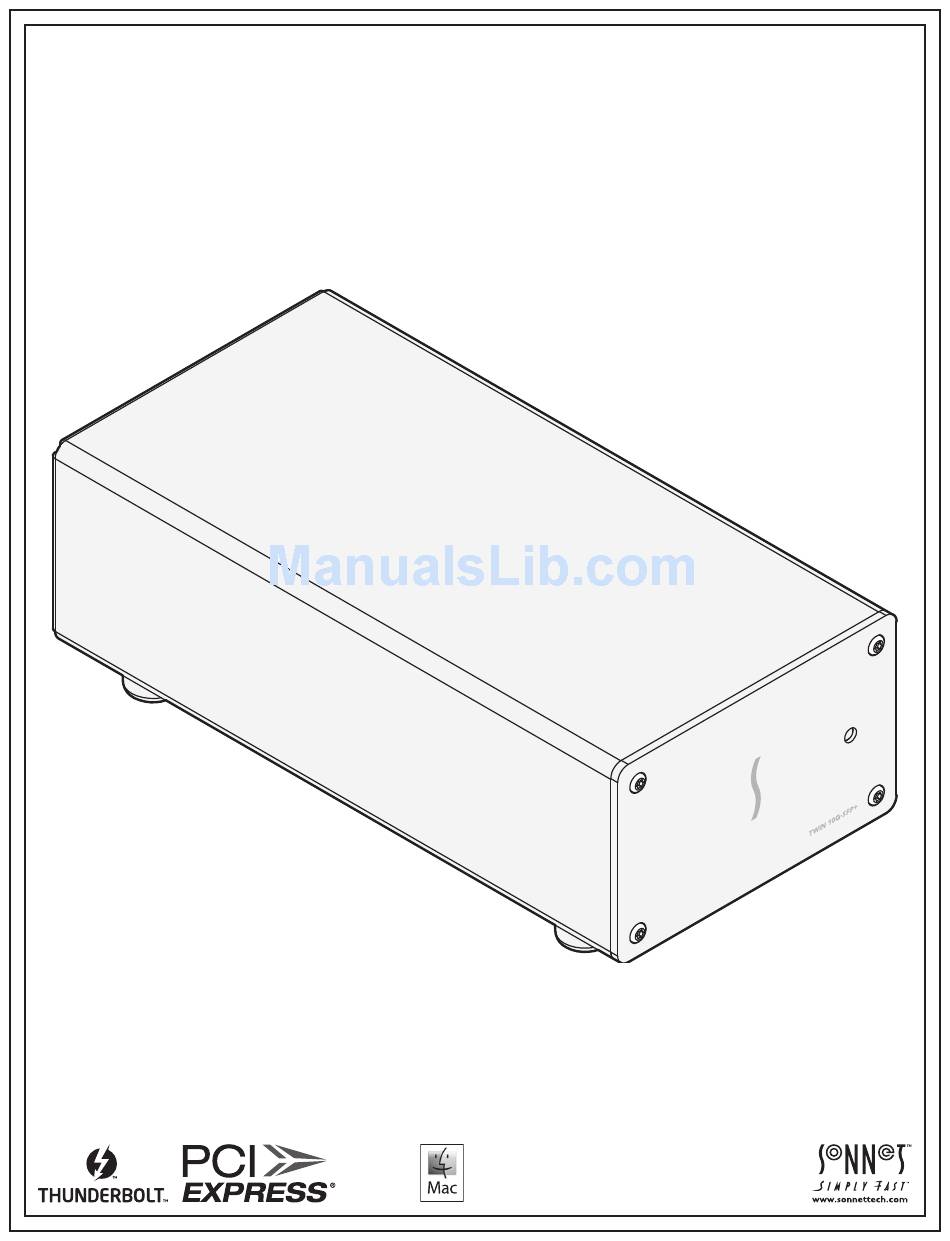

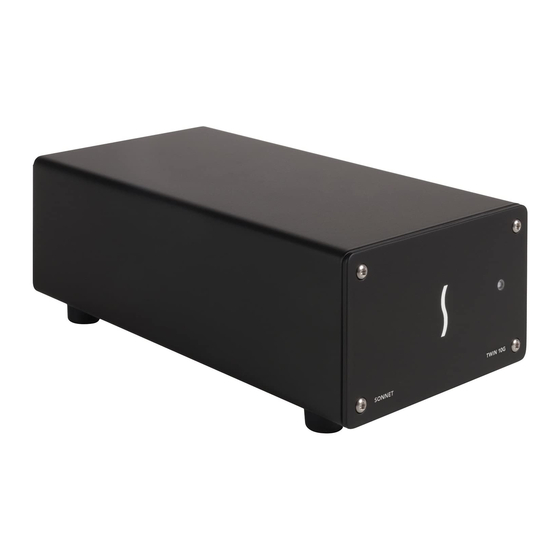

- Page 1 User’s Guide for Twin G™ SFP+ Thunderbolt 3 Edition Dual-Port SFP+ 10 Gigabit Ethernet Thunderbolt 3 Adapter ™ Windows...
-
Page 3: Table Of Contents
4 Twin 10G SFP+ T3E Adapter Connection Steps 5 Verification and Configuration Steps Confirm the Twin 10G SFP+ T3E and Its Ethernet Controllers are Recognized—Mac Users Confirm the Twin 10G SFP+ T3E and Its Ethernet Controllers are Recognized—Windows Users Basic Configuration Steps—Mac Users Basic Configuration Steps—Windows Users... - Page 4 This page left intentionally blank...
-
Page 5: Chapter 1 - Introduction, System Requirements, And Setup Overview
1. Go to www.sonnettech.com/support/kb/kb.php fiber optic cables, or two SFP+ terminated Twinax copper cables 2. Click the Thunderbolt Product link. 3. Click the Twin 10G SFP+ Thunderbolt 3 Edition link, and then Driver Information click the Documentation link. The drivers that enable the Twin 10G SFP+ T3E adapter to work 5. -
Page 6: Setup Overview-Mac Users
SETUP OVERVIEW—MAC USERS SETUP OVERVIEW—WINDOWS USERS To enable the Twin 10G SFP+ T3E to work with your system, you To enable the Twin 10G SFP+ T3E to work with your system, you will do the following as described in the following pages: will do the following as described in the following pages: 1. -
Page 7: Twin 10G Sfp+ Thunderbolt 3 Edition (T3E) Description
Chapter 2 – Twin 10G SFP+ Thunderbolt 3 Edition (T3E) Description Twin 10G SFP+ T3E Indicators, Sockets, and Ports 1 – Power Indicator This lights when the Twin 10G SFP+ T3E adapter is powered, the Thunderbolt cable between the adapter and your computer is plugged in securely, and the computer powered on. -
Page 8: Power Adapter
Chapter 2 – Twin 10G SFP+ Thunderbolt 3 Edition (T3E) Description Power Adapter 1 – Power Adapter Connect this to the Twin 10G SFP+ T3E adapter’s 12VDC socket. Note that the power indicator on top lights when the adapter is connected to AC power. -
Page 9: Computer Update And Driver Download/Installation Steps
10.12.1 or later. If you need to update the OS, follow click on the search result. Otherwise, go to the next step. the steps below. Sonnet recommends using the latest version of macOS, but you should confirm that any critical applications you use support it before you update. -
Page 10: Driver Download And Installation Steps-Mac Users
2. On the Support Categories page, click the Thunderbolt link, MAC USERS and then click the Twin 10G SFP+ Thunderbolt 3 Edition link. This section describes the download and installation of the 3. On the Twin 10G SFP+ Thunderbolt 3 Edition page, click drivers required to support the Twin 10G SFP+ T3E adapter connected to your Mac computer. -
Page 11: Twin 10G Sfp+ T3E Adapter Connection Steps
Note that the power adapter’s power indicator will light at this time. 5. Connect the power adapter cable to the Twin 10G SFP+ T3E adapter’s 12V power socket. Note that the Sonnet adapter’s power indicator... - Page 12 This page left intentionally blank...
-
Page 13: Verification And Configuration Steps
CONFIRM THE TWIN 10G SFP+ T3E AND ITS ETHERNET CONTROLLERS ARE RECOGNIZED— MAC USERS This page instructs Mac users how to verify the Twin 10G SFP+ T3E is recognized by the computer; Windows users should skip to the next page. - Page 14 For Figure 6 most users, the Twin 10G SFP+ T3E adapter’s will be the only other Ethernet ports listed, with the computer’s onboard Ethernet port listed as “Network”. Click on one of the other ports;...
-
Page 15: Basic Configuration Steps-Mac Users
Chapter 5 – Verification and Configuration Steps BASIC CONFIGURATION STEPS—MAC USERS Listed below are the basic steps necessary to configure the Twin 10G SFP+ T3E adapter for use with your computer running macOS. 1. With the Twin 10G SFP+ T3E adapter connected to your computer and 10GbE infrastructure, open System Preferences, and then click Network. - Page 16 This page left intentionally blank...
-
Page 17: Tips, General Information, And Known Issues
Currently Not Supported As a result, when created, teams and VLANs do not pass traffic. Twin 10G SFP+ T3E Can Provide Up to 15 Watts of Upstream We expect that ANS will be supported on Windows 10 client in a... -
Page 18: Specifications, Warnings, Fcc Compliance, And Support Information
©2017 Sonnet Technologies, Inc. All rights reserved. Sonnet, the Sonnet logotype, Creativity Stored Here, Simply Fast, and the Simply Fast logotype, are trademarks of Sonnet Technologies, Inc. Mac, and the Mac logo are trademarks of Apple Inc., registered in the United States and other countries. Thunderbolt 3 and the Thunderbolt logo are trademarks of Intel Corporation in the U.S.
