Sonnet Solo10G Thunderbolt 3 Edition Quick Start Manual

10
Solo G ™ Thunderbolt
10GBASE-T / NBASE-T® to Thunderbolt 3 Adapter
Quick Start Guide

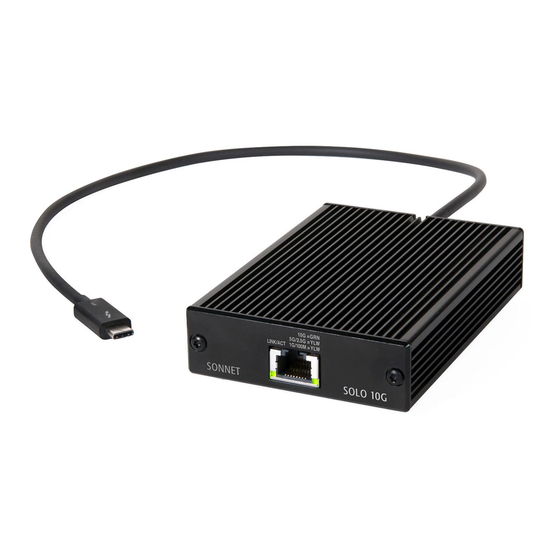

Solo10G Thunderbolt 3 Edition Description

1 – RJ45 (10GBASE-T/NBASE-T) Port
Connect a CAT 6A, CAT 6 or CAT 5e* cable between this port
and the switch's or device's RJ45 port.
2 – Link/Activity Indicator
This LED flashes green to indicate a link is established between
the adapter and the switch, and flashes yellow when the link is
training.
3 – Link Speed Indicator
When a link is established between the adapter and the switch,
this LED lights to indicate the link speed to the switch: green =
10Gb; yellow = 5Gb, 2.5Gb, 1Gb, or 100Mb.
* 10 Gb/s speed supported on CAT 6A and CAT 6 cabling at 100 and
55 meters, respectively. Lower speeds supported on CAT 5e and
better cabling at up to 100 meters. 5 Gb/s and 2.5 Gb/s link speed
support requires an NBASE-T (multi-Gigabit) compatible switch.

You Should Have

3
™ Edition
The following items should be included in your product package:
• One Solo10G Thunderbolt 3 Edition adapter
• QSG
Mac® Compatibility
• Mac with Thunderbolt 3 ports
• macOS
• macOS Mojave compatible
Windows® Compatibility
• PC with Thunderbolt 3 ports
• 64-bit editions of Windows
Important Note: Windows computers require the latest BIOS and
Thunderbolt drivers to support this product. Check with your
computer manufacturer for update information.
Thunderbolt 3 Connector—Plug this connector into one of your
computer's Thunderbolt 3 ports (often indicated by a logo), or at the
end of a Thunderbolt device chain. Ports marked with the USB icon
(

Driver Information

For Mac users, the drivers required to support the Solo10G
Thunderbolt 3 Edition are installed as part of macOS 10.13.4 and
later; the Sonnet adapter is ready for use when you power on your
computer.
For Windows users, please go to www.sonnettech.com/support/
kb/kb.php, and then click the Thunderbolt link. Locate and click
Solo10G Thunderbolt 3 Edition link, and then click the Driver link.
Locate, download, and install the appropriate drivers.
First Time Use—Windows
The first time you connect the Solo10G Thunderbolt 3 adapter to
your computer, an Approve New Thunderbolt™ Devices window will
appear. From the drop-down menu select Always Connect, and then
click OK.
®
10.13.6+
®
or later
Support Note:
This document was up to date at the time of
printing. However, changes to the hardware or software
may have occurred since then. Please check the Sonnet website for
the latest documentation.
1. Go to www.sonnettech.com/support/kb/kb.php
2. Click the Thunderbolt link.
3. Locate and click Solo10G Thunderbolt 3 Edition link, and then click
the Documentation link.
4. Click the Solo10G Thunderbolt 3 Edition Quick Start Guide
[English] link, and then check the Document Version information.
If the version listed is later than this document (revision D), click
the Download Now button for the latest version.
) are NOT compatible.
10, Version 1709 (Creator's Edition),
