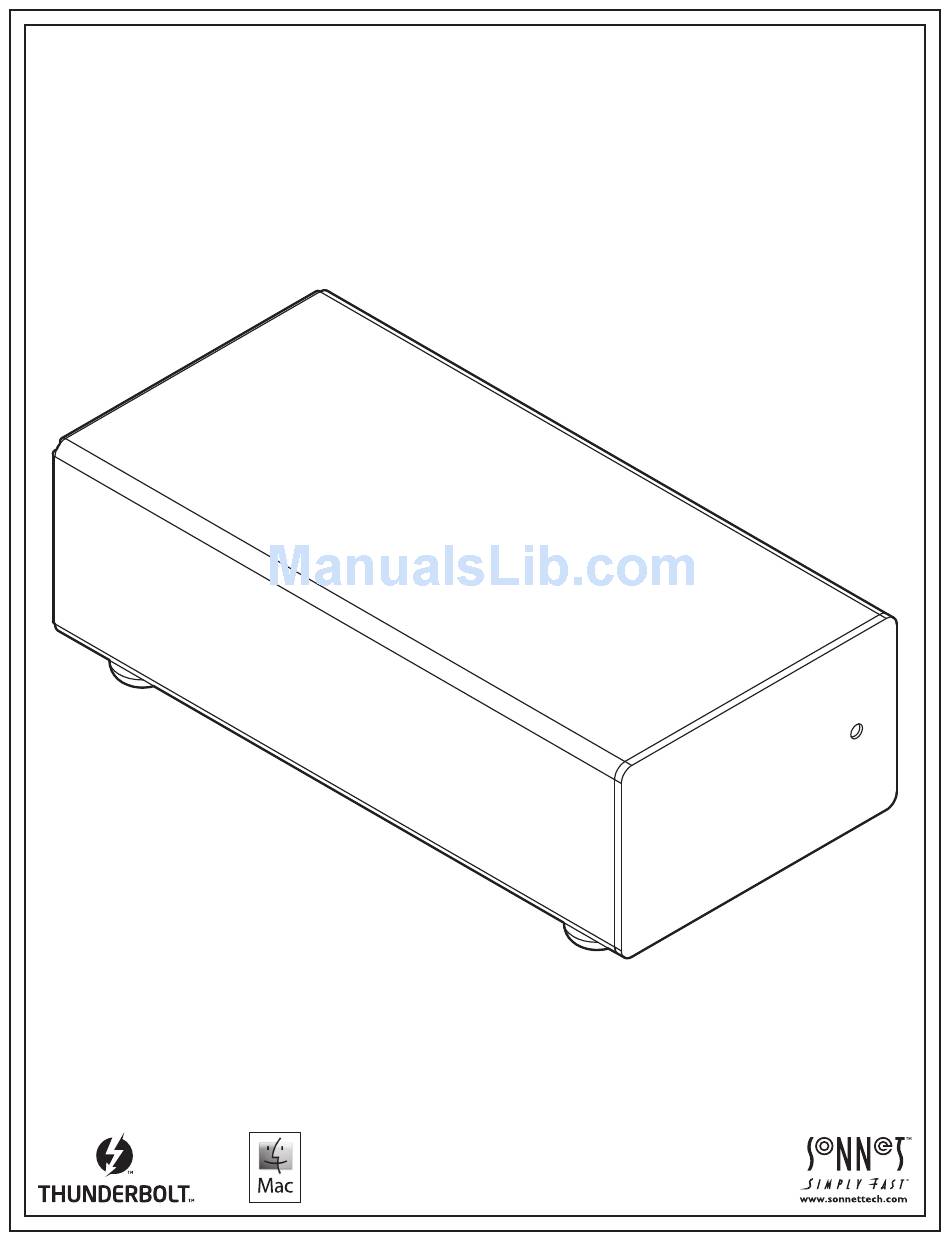

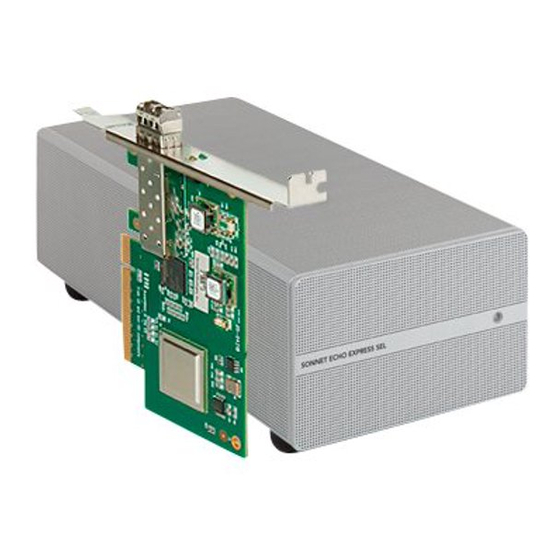

- Page 1 User’s Guide for Echo Express SEL ™ Gigabit Ethernet Thunderbolt 2 Adapter ™...
-
Page 3: Table Of Contents
Contents 1 Introduction, System Requirements, Driver Information 2 Echo Express SEL 10GbE Description Echo Express SEL 10GbE Exterior Power Adapter Thunderbolt Connector Lock 3 Software Installation OS X Driver Download and Installation 4 Echo Adapter Connection 5 Verifying Adapter Recognition Using System Report... - Page 4 This page left intentionally blank...
-
Page 5: Introduction, System Requirements, Driver Information
REAR VIEW TOP VIEW Introduction System Requirements Congratulations on your purchase! The Echo Express SEL 10GbE The Echo adapter requires the following to operate: is a Thunderbolt 2-to-10 Gigabit Ethernet (10GbE) adapter that • Mac computer with a Thunderbolt port... -
Page 6: Echo Express Sel 10Gbe Description
Chapter 2 – Echo Express SEL 10GbE Description Echo Express SEL 10GbE Exterior 1 – Power Indicator 3 – Link and Firmware Indicators This indicator lights when the Echo adapter is powered, the The green LED (labeled “L“) lights steadily to indicate that... -
Page 7: Power Adapter
Chapter 2 – Echo Express SEL 10GbE Description Power Adapter 1 – Power Adapter Connect this to the Echo adapter’s 12VDC socket. Note that the power indicator on top lights when the adapter is connected to AC power. 2 – Power Cord Connect this between a power outlet and the power adapter. -
Page 8: Software Installation
2. On the Support Categories page, click the Thunderbolt Product link, and then click the Echo Express SEL 10GbE link. 3. On the Echo Express SEL 10GbE page, click the Driver link, and then click the Download Now button next to “Echo Express SE 10GbE/Echo Express SEL 10GbE/Presto 10GbE Software (OS X)”;... -
Page 9: Echo Adapter Connection
Chapter 4 – Echo Adapter Connection Support Note: To ensure the best performance possible when connecting multiple Thunderbolt devices in a daisy chain, be sure to connect 20Gbps Thunderbolt 2 devices such as this Echo chassis closest to the computer, with 10Gbps Thunderbolt devices at the end. 1. -
Page 10: Verifying Adapter Recognition Using System Report
Chapter 5 – Verifying Adapter Recognition Using System Report Confirming Thunderbolt and the 10GbE Controller are Recognized 1. With the Echo adapter powered and connected to the computer, turn on the computer. Note that if there are any other Thunderbolt devices connected between the Echo adapter and your computer, they must also be powered for you to perform the following steps. -
Page 11: Basic Configuration Information
Chapter 6 – Basic Configuration Information Listed below are the basic steps necessary to configure the Echo adapter for use with your computer. 1. With the Echo adapter connected to your computer and 10GbE infrastructure, open System Preferences, and then click Network. 2. -
Page 12: Tips, General Information, And Known Issues
Echo adapter and your computer while your computer is on. may not work under a later version. Before updating to the latest OS, we recommend that you contact Sonnet to verify that the Connecting Additional Thunderbolt Devices existing drivers work. Note that other software updates for the You may connect up to six Thunderbolt devices total in a daisy computer may also break compatibility. -
Page 13: Specifications, Precautions, Fcc Compliance, And Support Information
Chapter 8 – Specifications, Precautions, FCC Compliance, and Support Information Specifications FCC Compliance Echo Express SEL 10GbE complies with Part 15 of the FCC Rules. External Connectors Two Thunderbolt Operation is subject to the following two conditions: This device SFP+... - Page 14 ©2014 Sonnet Technologies, Inc. All rights reserved. Sonnet, the Sonnet logotype, Creativity Stored Here, Simply Fast, the Simply Fast logotype, and Echo are trademarks of Sonnet Technologies, Inc. Mac, the Mac logo, and OS X are trademarks of Apple Inc., registered in the United States and other countries. Thunderbolt and the Thunderbolt logo are trademarks of Intel Corporation in the U.S.
