Spire SPw70 Quick Reference Manual

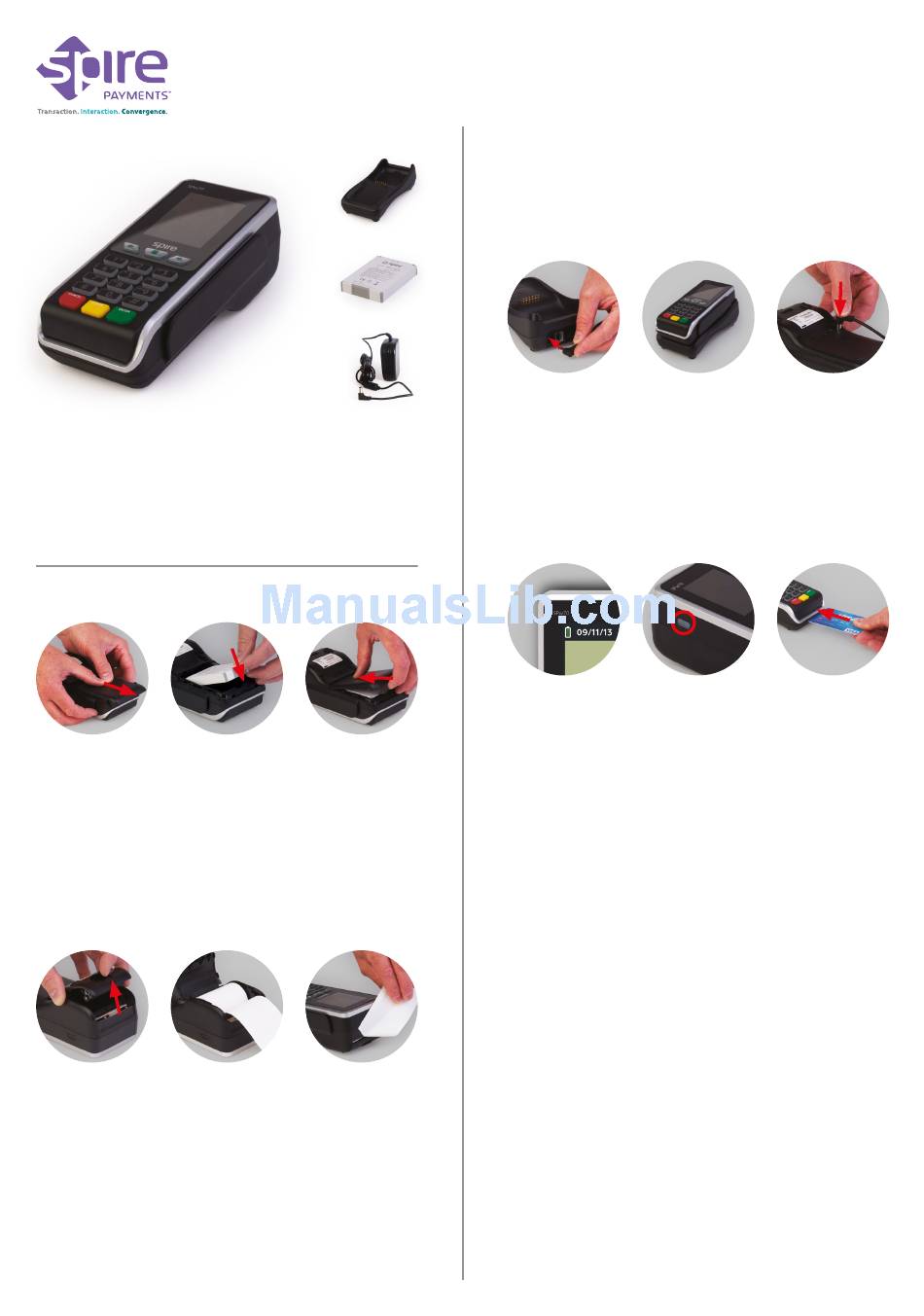

What you have received:
Terminal
(complete with paper roll)
© 2013 Spire Payments Holdings S.a.r.l. All rights reserved. All information is subject to change
without notice and Spire Payments does not warrant the information's accuracy or correctness.
Spire Payments, the Spire Payments logo, Thyron, Thyron Payments Systems and the Thyron
Payments Systems logo are trademarks, service marks or registered trademarks or service marks of
Spire Payments Holdings S.a.r.l. All other trademarks are the property of their respective owners.
Any Spire Payments software described in this document is subject to a Software License Agreement.
Please refer to the Software License Agreement for information regarding the terms of use.
Step 1. Terminal battery installation
fig. 1 fig 2.
• Place the terminal face down and remove the battery cover by
applying pressure on the ribbed oval and sliding it in the direction
shown. (fig. 1)
•
If a SIM is not pre-fitted insert the supplied SIM into the socket
marked SIM.
•
Remove the packaging and insert battery into the terminal. (fig. 2)
• Replace the cover. (fig. 3)
Step 2. Paper roll installation
fig 4. fig. 5
• With the terminal still facing down, gently pull upwards on the
lever located in the middle of the printer door. (fig. 4)
• Discard any packing material from the paper roll.
• Fit the roll as shown in the diagram. The correct orientation of
the paper is critical. (fig. 5)
•
Pull 10cm of paper until it protrudes from the top of the terminal.
• Close the printer door until a 'click' is heard.
• Turn the terminal over and remove the excess paper by tearing
along the serrated edge. (fig. 6)
SPw70 Mobile Terminal
Charging stand
(optional)
Battery
Power supply
(region specific)
fig 3.
fig. 6
Quick Reference Guide
Step 3. Charging stand connection (if supplied)
• Insert the small plug into the rear of the charging stand and plug
the power supply into a nearby electrical outlet (fig. 7)
• A red light on the charging stand will show power is present.
Step 4. Charging the terminal
fig. 7 fig. 8
•
Place the terminal on the stand (if supplied) (fig. 8) or insert the
power supply plug directly into the rear of the terminal. (fig. 9)
Only then plug the power supply into the electrical outlet.
• Charging of the battery will take between 2 and 4 hours.
• Battery condition is indicated in the top left hand corner of the
display when the terminal is switched on. (fig. 10)
• When not in use leave the terminal on the stand (if supplied) or
connected to the power supply to maintain charge.
fig. 10 fig. 11
Step 5. Turning on the terminal
•
Hold down the power key on the left hand side of the terminal
until the display illuminates (fig. 11).
• Remove the protective film from the display.
• Your terminal may prompt you to enter your MID as a security check.
Step 6. Performing a Chip Card sale transaction with PIN
•
The terminal does not have to be placed on the charging stand
(if supplied) to perform a transaction.
•
Insert the customer's Chip Card into the slot at the foot of the
terminal with the chip facing upwards. (fig. 12)
•
Enter the transaction amount when prompted and pass the terminal
to the customer for PIN entry.
•
The terminal will automatically contact the acquirer and approve/
decline the transaction.
•
A merchant copy of the receipt will be printed. Tear off and retain
for your records.
•
Confirm display prompt to print the customer's receipt. Once printed,
tear off, remove card and pass both to the customer.
Step 7. Other transaction types
• Please refer to the User Manual for performing all transaction
types and reading card data by Swipe, Keyed and Contactless.
Step 8. End of day/shift change procedures
• It is essential to perform specific processes at the end of a working
day, and possibly between shifts for internal records. Please refer
to the User Manual for more details.
fig. 9
fig. 12
