- Page 1 HeartSine samaritan ® 360P Trainer model TRN-360-1 User Manual HeartSine ® HeartSine PAD 360P Trainer User Manual...
- Page 2 This User Manual provides instructions on how to operate the HeartSine PAD 360P Trainer. The HeartSine PAD 360P Trainer is a non-medical device intended to be used for the training of emergency responders in the proper use of the HeartSine PAD 360P automated external defibrillator. The Trainer has no therapeutic capabilities and must not be used in real life rescue situations.
- Page 3 2) Place the HeartSine PAD 360P Trainer and the Trainer Pad-Pak on a flat surface. Push the Trainer Pad-Pak into the opening of the HeartSine PAD 360P Trainer and listen for a “click” sound to ensure that it is properly inserted.

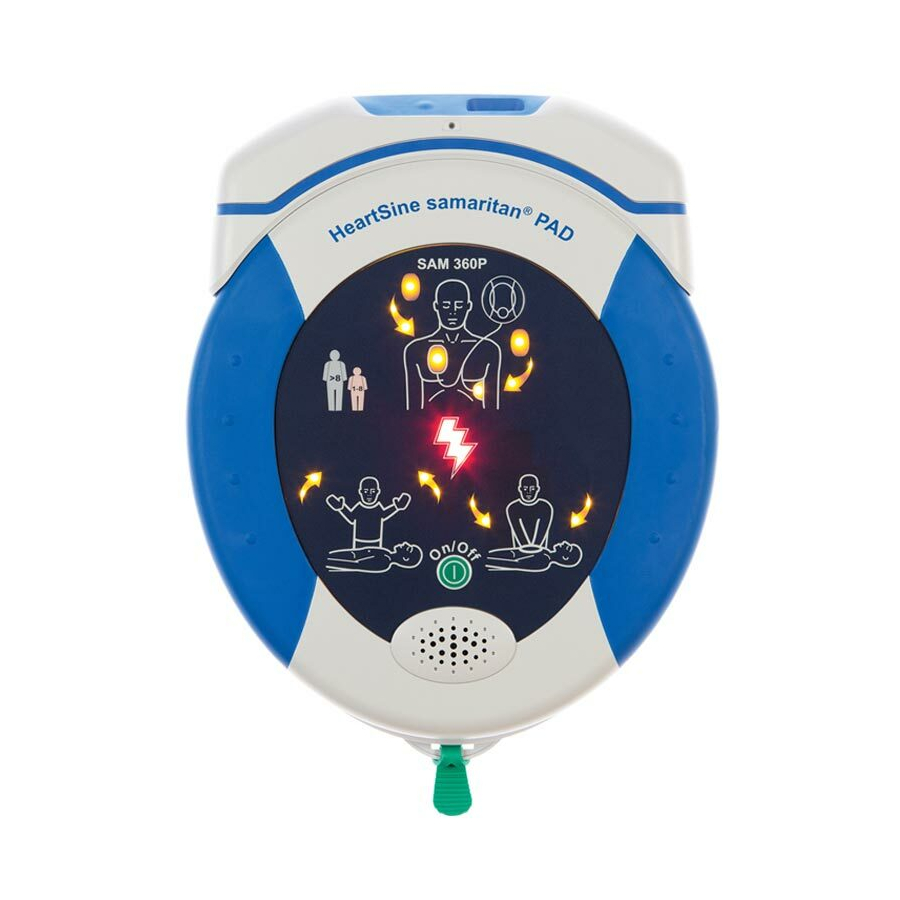

- Page 4 HeartSine samaritan PAD 360P Trainer, model TRN-360-1 ® HeartSine PAD 360P Trainer Data Port Battery Charge Status LED Status Indicator Shock Icon Safe To Touch Indicator Speaker Pad-Pak Cartridge On/Off Button Do Not Touch Indicator Pads Placement Indicator Action Arrows...
- Page 5 Coil Mechanism Coil Handle 4) Place the pads on top of the Pad-Pak cartridge, ensuring that the wires are beneath the pads. 5) Close the Pad-Pak cartridge by sliding the yellow tray into place. HeartSine PAD 360P Trainer User Manual...
- Page 6 Select Scenario Attach Electrode Pads Turning off the Trainer The Remote Control can be used to turn off the HeartSine PAD 360P Trainer. To turn the Trainer off press the red button on the Remote Control. Changing the Volume There are four volume settings available on the HeartSine PAD 360P Trainer. The volume control buttons are to the left of the Off button on the Remote Control.
- Page 7 Preprogrammed Training Scenarios The HeartSine PAD 360P Trainer has six preprogrammed training scenarios to choose from. All preprogrammed scenarios are based on AHA/ERC 2010 guidelines. Details of the scenarios are given below. Scenario 1 Setup mode “Call for Medical assistance”, “Pull green tab”, etc User intervention “Pads”...
- Page 8 User to apply CPR with advisory as required; this includes an audible indication of when to perform rescue breaths - the metronome changes from a “beep” to a “tick” for the duration of ten compressions. Repeat Steps 6 to 8 repeated until ‘On/Off’ button is pressed www.heartsine.com...
- Page 9 The Remote Control allows Training providers to control the scenario manually. When turned on the HeartSine PAD 360P Trainer will operate as detailed in the training scenarios listed. Training providers can override this by pressing the ‘Shock required’, ‘No Shock required’ or ‘Attach Electrode Pads’ button.
-
Page 10: Maintenance
“Warning. Low battery” If this warning is heard you may continue to use your HeartSine PAD 360P Trainer for a limited period of time. If the battery becomes completely depleted the Trainer device will shut itself down. At this point the Trainer should be recharged. - Page 11 Pairing a Remote Control with the HeartSine PAD 360P Trainer Each HeartSine PAD 360P Trainer has a specific Remote Control to operate it. This is to allow multiple devices to be used in close vicinity without interference. In the unlikely event that your Remote Control no longer operates with your Trainer it may need to be paired with your Trainer again.
- Page 12 Association (AHA) and the European Resuscitation Council (ERC) in their 2010 published Guidelines for CPR and ECC. This is intended only as a quick reference for trained CPR providers. HeartSine recommend that all potential users of the PAD 360P are trained by a competent training organization in both the use of CPR and PAD 360P, prior to placing a PAD 360P into service.
- Page 13 If you wish to dispose of the HeartSine PAD 360P Trainer unit, it should be disposed of at an appropriate recycling facility according to national, state and local requirements. Alternatively return the unit to your local distributor or HeartSine Technologies for disposal.
- Page 14 Notes www.heartsine.com...
- Page 15 Notes HeartSine PAD 360P Trainer User Manual...
- Page 16 Worldwide Headquarters: HeartSine Technologies Inc 121 Friends Lane Suite 400 Newtown, PA 18940 Tel: 1.215.860.8100 Fax: 1.215.860.8192 Manufactured by: HeartSine Technologies Ltd Canberra House 203 Airport Road West Belfast BT3 9ED Northern Ireland Tel: +44 (0)28 9093 9400 www.heartsine.com www.heartsine.eu support@heartsine.com...
