Siemens UP 588/12 Technical Specifications

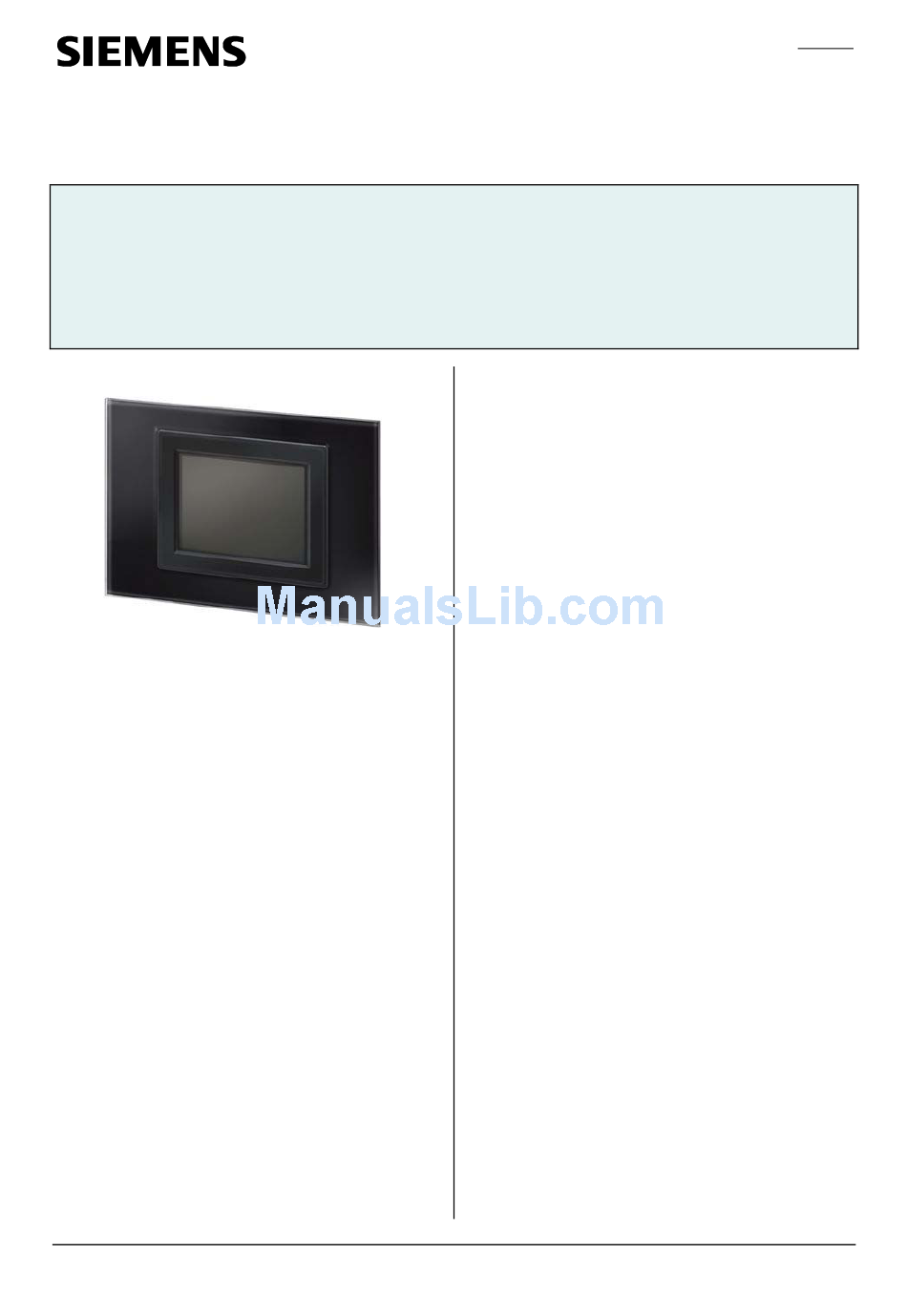

Colour touch panel UP 588/12
Colour touch panel UP 588/22
Accessories:
Design frame aluminium anodized
Design frame stainless steel
Design frame glass black
Design frame glass white
flush-type box
Product and Function Description
The Colour touch panel UP 588 is a multi-functional
display/control device for the KNX. The basis of the
device is a 320 × 240 pixels TFT colour display with touch
screen.
The colour depth is 263 K (R, G, B 6-bit), 2
operate the panel directly via the touch screen.
The display has LED background illumination, which you
dim with the user interface.
• UP 588/12 Colour touch panel
230V AC
• UP 588/22 Colour touch panel
24V AC/DC
In conjunction with the corresponding application
program, the display can be used to display and control
up to 110 KNX functions of at least 20 control and
display pages. Time programmes with weekly schedules,
a presence simulation feature and scenes can be
programmed for these functions or logic functions set
up. Up to 16 active alarms can be indicated and
acknowledged on a alarm page or there is an option to
use these activating conditions for 16 event tasks.
The panel has an internal real time clock and can
therefore function as the master timer in a KNX system.
Via the system settings one of four different design
templates can be selected for the display and
operator interface.
Siemens AG
Industry Sector, Building Technologies
Business Sector - Electrical Installation Technology
PO Box 10 09 53, D-93009 Regensburg
colours. You
18
5WG1 588-2AB12
5WG1 588-2AB22
UP 588, 6 pages
© Siemens AG 2008
Subject to change without further notice
The following accessories are needed for the colour
touch panel:
Design frame aluminium anodized
Design frame stainless steel
Design frame glass black
Design frame glass white
Relevant flush-type box
Application programs
25 CO Touch-Panel 910201
• Display and control of 110 KNX functions via at least
20 display and control pages. Each viewing and control
page includes up to 5 standard functions and 6
supplementary functions. A standard function can
contain up to 3 communication objects. An
supplementary function contains 1 communication
object.
• Implementation of time programmes with weekly
schedules for standard and supplementary function
objects
• Implementation of a presence simulation with
standard and supplementary function objects
• Implementation of scene programs with standard and
supplementary function objects
• Logic functions can be produced with supplementary
function objects
• Display of an alarm page with 16 alarm messages,
• Alternatively, the alarm activation conditions can be
used for 16 event tasks
• Date and time display, integrated real time clock
• Individual password protection for each page, for scene-,
weekly schedules-, logic programs and presence
simulation
• Selection out of four different design templates for the
display and operator interface
• Display of individual images on the start screen page or
up to 100 alternating images as a slide show
Installation notes
• The device can be used for permanent interior
installations in dry rooms.
• A masonry wall or cavity wall recess 161.5 × 135 × 64
mm is required to install the mounting socket.
• The depth of the recess must be at least 64 mm.
Update: http://www.siemens.com/gamma
GAMMA instabus
Technical Specification
November 2008
5WG1 588-2AB12
5WG1 588-2AB22
5WG1 588-8AB02
5WG1 588-8AB03
5WG1 588-8AB04
5WG1 588-8AB05
5WG1 588-8EB01
5WG1 588-8AB02
5WG1 588-8AB03
5WG1 588 8AB04
5WG1 588 8AB05
5WG1 588-8EB01
Technical Manual
2.3.1.6/1
