Shure R183B Replacement

REPLACEMENT CARTRIDGE KITS
R183B, R183W, R184B, R184W, R185B, AND R185W

GENERAL

Use the enclosed replacement cartridge with any Microflex
microphone.

APPLICATIONS

R183 (Omnidirectional): Sound reinforcement, recording, or
remote monitoring applications. Low handling noise. Pickup angle
= 360°.
R184 (Supercardioid): Sound reinforcement applications requir-
ing high rejection of ambient noise and narrow pickup angle. Use of
windscreen highly recommended. Pickup angle (-3db) = 115°.
R185 (Cardioid): Sound reinforcement applications requiring
good rejection of ambient noise. Use of windscreen highly recom-
mended. Pickup angle (-3db) = 130°.
(B=Black; W=White)

CHANGING CARTRIDGES

Simply unscrew the cartridge from the microphone base and re-
place it.
BODY
CHANGING CARTRIDGES IN MX300 SERIES
BOUNDARY MICROPHONES
Remove the top grille and unscrew the cartridge retaining brack-
et. Lift the adapter housing to replace the cartridge. See the users
guide that accompanied the microphone for details.
CARTRIDGE
For additional technical assistance, phone Shure at
1-847-600-8440. In Europe, phone 49-7131-72140.
Trademark Notices: SHURE, the Shure logo, and
MICROFLEX are registered trademarks of Shure Incorporated.
©2005 Shure Incorporated
27C2933 (Rev. 4)

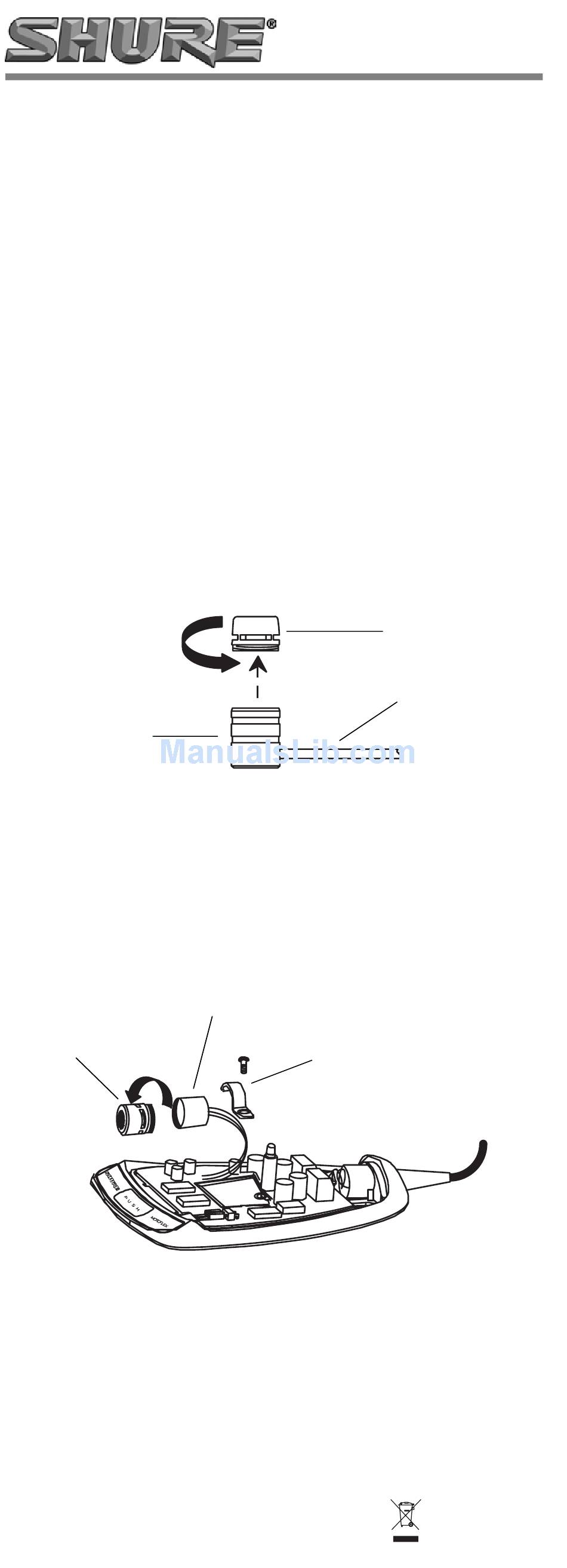

REMOVING A MICROPHONE CARTRIDGE

ADAPTER HOUSING

CARTRIDGE REPLACEMENT

FIGURE 1
BRACKET
FIGURE 2
REPLACEMENT
CARTRIDGE KITS
CARTRIDGE
CABLE
