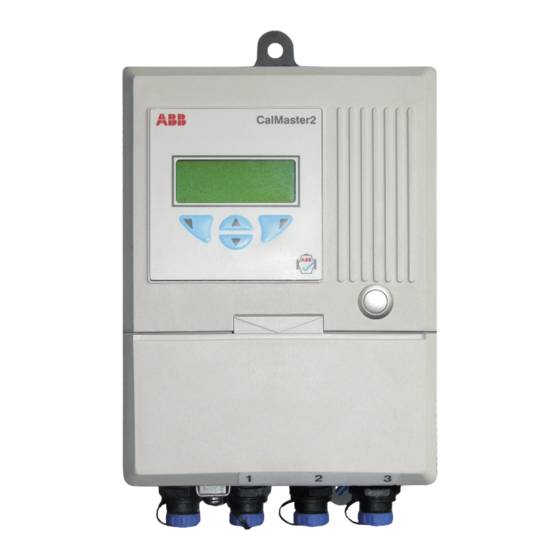

CalMaster2
Quick Start Guide
IM/VCM2/QRG Issue 2
1
Introduction
CalMaster IRIS and CheckMaster are stand-alone verification and
validation tools within the CalMaster2 Verification Suite.
There are two options of CalMaster2 available:
!
CalMaster IRIS
Enables the printing of service reports and certification to
within 1% of factory calibration (fingerprinted flow meters) or
2% (non-fingerprinted flow meters). Predictive diagnostics are
also provided to provide early warning of a possible system
failure, enabling maintenance
problems and take planned remedial action in advance.
CalMaster2 comprises:
– CalMaster IRIS Verification Tool
– Enhanced IRIS Software
!
CheckMaster
Enables the validation of flow meters and the printing of a
service report.
CheckMaster comprises:
– CheckMaster Validation Tool
– IRIS Software
2
Unpacking
Unpack and visually inspect the CheckMaster.
Also packed with the CheckMaster are:
!
CalMaster2 IRIS software CD.
!
Instruction manual.
!
Mains-operated battery charger & in-car adaptor
!
5 MagMaster adaptors kits (Part no. WADX0089):
Sensor
Cable
Plug
!
CheckMaster Leads:
AquaMaster Communications Leads
(Red and yellow numeric sleeves)
AquaMaster Explorer Leads
engineers to anticipate
(Red numeric sleeves)
MagMaster Leads
(Yellow numeric sleeves)
AquaMaster 7-way Output Cable
AquaMaster MIL Connector Leads
(Green numeric sleeves)
MagMaster Connection Lead 2
MagMaster
VKE
Adaptor
Connection Lead 1 WEBC2000 for RS232 Serial
WEBC0221 Communications WEBC2000
AquaMaster Transmitter AquaMaster Transmitter
Connection Lead 2 Connection Lead 3
WEBC0222 WEBC0223
AquaMaster MIL AquaMaster 19-way
Sensor Cable Output Cable
WEBC0233 WEBC235
AquaMaster 7-way Output Cable
WEBC0234 WEBC0232
MagMaster Connection Lead 3
WEBC0212 WEB0C213
AquaMaster Transmitter Connection Lead 2
WEBC211
