FLETCHER 2200 Owner's Manual

Professional mat cutter
Hide thumbs
Table of Contents

Advertisement

Quick Links

OWNER'S
MANUAL
FLETCHER 2200™
PROFESSIONAL MAT CUTTER
Tel 860.677.7331• 800.843.3826 • Fax 860.676.8858 • www.fletcher-terry.com
The Fletcher-Terry Company
65 Spring Lane • Farmington, CT 06032-3311
customerservice@fletcher-terry.com
1
German
Page
French
Page
Spanish
Page
19
37
55
FORM 122003
Ver. 3.16.4

Advertisement

Table of Contents
loading

Related Manuals for FLETCHER 2200

Summary of Contents for FLETCHER 2200

  • Page 1 OWNER’S MANUAL FLETCHER 2200™ PROFESSIONAL MAT CUTTER German Page French Page Spanish Page The Fletcher-Terry Company 65 Spring Lane • Farmington, CT 06032-3311 Tel 860.677.7331• 800.843.3826 • Fax 860.676.8858 • www.fletcher-terry.com customerservice@fletcher-terry.com FORM 122003 Ver. 3.16.4...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION WARRANTY COMPONENTS SET UP HOW TO CUT MATS SINGLE OPENING V-GROOVE DOUBLE MAT MULTI-ANGLE MAT OPTIONS MEASURING STOPS MAT CLAMP LIFTERS RIGHT SQUARING ARM BASE EXTENSION ANGLE MAT GUIDE ADJUSTMENTS SQUARE MAT GUIDE ADJUST CUTTING HEAD MAINTENANCE TROUBLESHOOTING GUIDE PARTS LISTS...

  • Page 3: Introduction

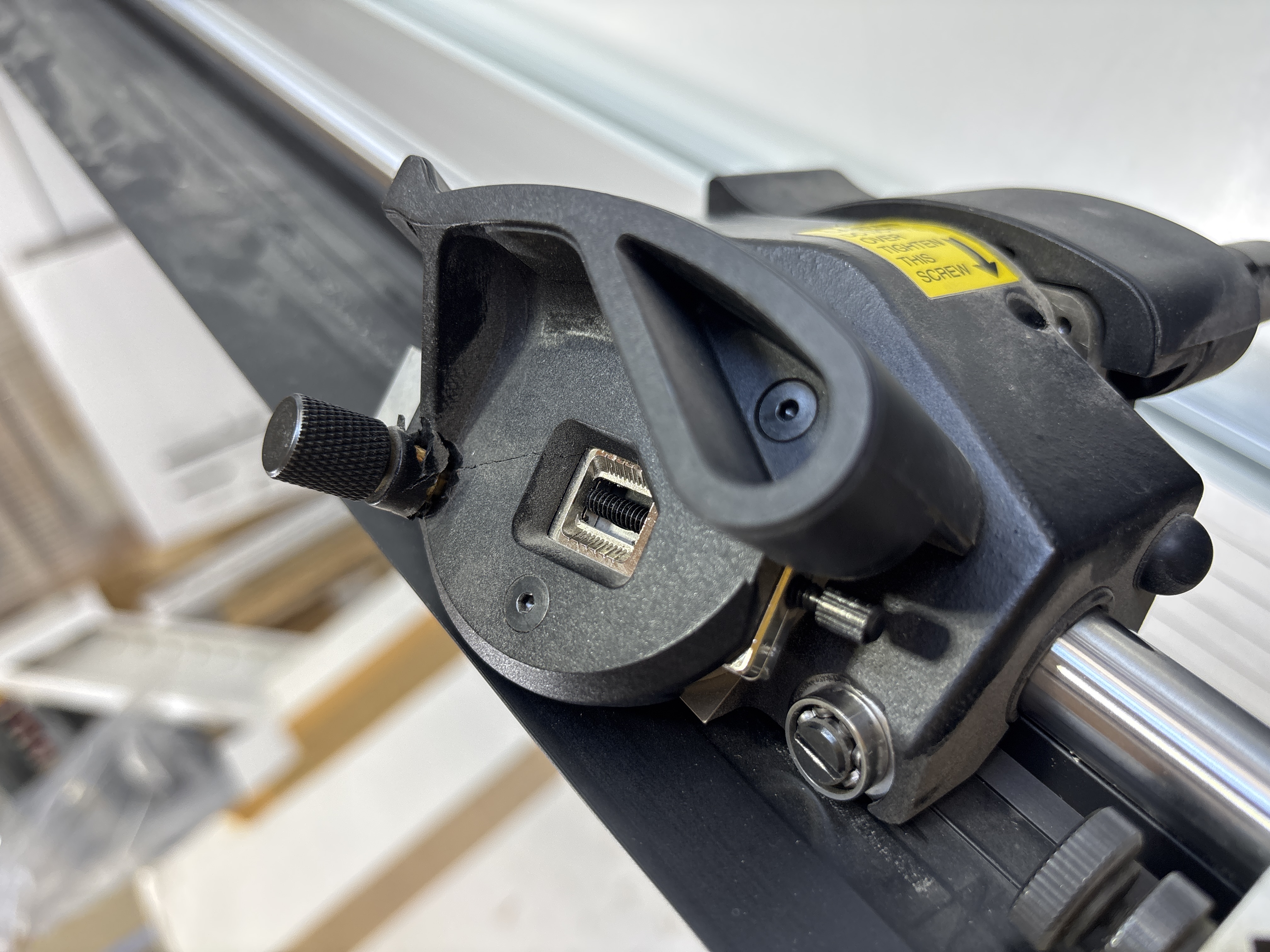

    Fletcher-Terry framing products. Particular attention has been devoted to ergonomic design to provide comfort and ease of use. The Fletcher 2200 is available in imperial (40”, 48” and 60”) and metric (1.0m, 1.2m and 1.5m) versions. The Cutting Head incorporates both bevel and straight cutting with comfort designed into both pivots. The straight (sizing) side uses a blade and magazine that cuts materials such as foamboard and gatorfoam ®...

  • Page 4: Components

    COMPONENTS Base Mat Guide Clamp Cutting Head Clamp Handle Lower Mat Guide Locking Knob Upper Mat Guide Locking Knob Mat Guide Slide Hinge Pivot Strap Upper Measuring Stop Lower Measuring Stop Upper Stop Scale Right Squaring Arm Right Squaring Arm Stop Right Squaring Arm Brace Squaring Fixture Angle Mat Guide...

  • Page 5: Set Up

    Place nine self adhesive rubber bumpers from the parts bag equally spaced on the bottom of the Base to prevent scratching a table top. Set the Fletcher 2200 on a flat table with the Clamp Handle to the left. CAUTION: USE EXTREME CARE HANDLING BLADES.

  • Page 6: How To Cut Mats

    HOW TO CUT MATS SINGLE OPENING The most important requirement for cutting a good mat is a sharp blade. Mats are abrasive and will wear out a blade eventually. The value of a well cut mat is far greater than the cost of a blade. 1.

  • Page 7: V-Groove

    Mat Guide. DOUBLE MAT A double mat with a V-groove is a very attractive and popular mat, and is easily produced on the Fletcher 2200 Profes- sional Mat Cutting System. Prepare a color contrasting mat to become the liner. Size it 1/8” (3mm) smaller in both width and length than the mat you used in the previous example.

  • Page 8: Options

    OPTIONS MEASURING STOPS The Measuring Stops are more than an aid to production of common size mats. They are quick to use and eliminate the time consuming technique of drawing lines on the back of the mat. In addition, they assure minimum overcuts and can prevent undercuts.

  • Page 9: Right Squaring Arm

    Angle Brace (B), a Squaring Arm Stop (C) and fasteners. See Figure 12. 1 . The Fletcher 2200 should be resting on a flat surface large enough to provide support for the Right Squaring Arm. You will see a hole in the Base about 5"...

  • Page 10: Base Extension

    7. The scale in the Right Squaring Arm has pressure sensitive adhesive on the underside. Slide the scale out to the right several inches. Peel off 4" of the protective paper from the adhesive and slide the scale back to the left, but do not set the adhesive yet. See Figure 14. 8.

  • Page 11: Multi-Angle Mat

    It is simple to attach the Angle Mat Guide to the Mat Guide on your Fletcher 2200. Refer to Figure 16. The Locking Pin (a) can be placed in any of the three holes (b). Selecting the hole on the left will locate the Angle Mat Guide at the lower end of the Mat Guide for smaller mats, up to 8"...

  • Page 12: Adjustments

    ADJUSTMENTS SQUARE THE MAT GUIDE 1. Slide the Mat Guide to the right until it contacts the Locator Pin (A) in the 2" (50mm) hole, and tighten the Lower (B), then Upper Locking Knobs on the Mat Guide. See Figure 17. 2.

  • Page 13: Maintenance

    MAINTENANCE Maintenance of your FLETCHER 2200 PROFESSIONAL MAT CUTTER is mostly a matter of cleanliness. 1. Keep a dry, lint free cloth near the machine. Wipe the Shaft and Mat Clamp daily and frequently during use to remove loose paper particles, dust, and other foreign matter. DO NOT USE OIL OR WAX. Cover the machine with a dust cover when not in use.

  • Page 14: Troubleshooting Guide

    Head “rumbles” Roller Bearing path dirty Clean Mat Clamp MAINTENANCE Roller Bearings dirty Remove Head and MAINTENANCE clean Bearings Use tape to remove MAINTENANCE foreign material FOR ASSISTANCE, CONTACT THE FLETCHER-TERRY COMPANY CUSTOMER SERVICE DEPARTMENT AT 800.843.3826 (U.S./CANADA) OR customerservice@fletcher-terry.com.

  • Page 15: Parts Lists

    PARTS LISTS Ref. Part No. Description Quantity Ref. Part No. Description Quantity 12-500 Base R.H. 40" Capacity 12-041 End Cap 12-001 Bass R.H. 48" Capacity 12-042 Mat Stop Knob 12-043 Washer 12-116 Base R.H. 60" Capacity 12-044 Mat Stop 12-501 Base L.H.
  • Page 16 CUTTING HEAD Ref. Part No. Description Quantity Ref. Part No. Description Quantity 12-572 Pivot Head Assembly (LH) 1 12-537 Shoulder Screw 12-530 Extension Spring 12-538 Bushing 12-588 Stainless Washer 12-591 Pivot Head Assembly (RH) 1 12-532 Pivot Screw 12-915 Knob (RH) 12-533 Shim Washer 12-542...
  • Page 17 BASE EXTENSION Ref. Part No Description Quantity 12-579 Scale/Mat Guide Slide 12-581 Scale (Inch) 12-582 Scale (Metric) 12-509 Base Nut 12-520 Mat Guide Slide 12-555 Mat Guide Slide (Metric) 12-130 Threaded Insert 12-132 Upper Stop Slide/Long 12-056 Button Head Screw 12-053 Square Nut 12-035...
  • Page 18 ANGLE MAT GUIDE Ref. Part No. Description Quantity 12-136 Housing 12-137 Disc 5,10 12-138 Angle Arm-Upper 12-139 Angle Arm-Lower 12-140 Angle Locking Knob 12-141 Locking Knob 12-575 Label-Upper 12-577 Label-Lower 12-144 Flat Head Mach. Screw 12-145 Nylon Washer DUST COVER Part No.
