Inovonics EE1265 EchoStream Installation And Operation Manual

EE1265 EchoStream® 360° Passive InfraRed
Motion Detector
Installation and Operation Manual

1 Overview

The EE1265 is a wireless, ceiling-mounted, four-element passive infrared
(PIR) intrusion detector providing protection from intruders by pyro-sensor
array. Micro-controller signal analysis with special technology for pulse
processing increases immunity to interference, vibration, static, lightning,
ambient temperature changes, and other common causes of false alarms.
Caution: The EE1265 needs one minute for stabilization after power up.
During the stabilization period, the LED will blink twice per second, and the
EE1265 will not be operational.

1.1 Inovonics Contact Information

For product and installation videos visit us at
www.inovonics.com/videos or use the QR
code below.
If you have any problems with this procedure, contact Inovonics technical
services:
• E-mail: support@inovonics.com.
• Phone: (800) 782-2709; (303) 939-9336.

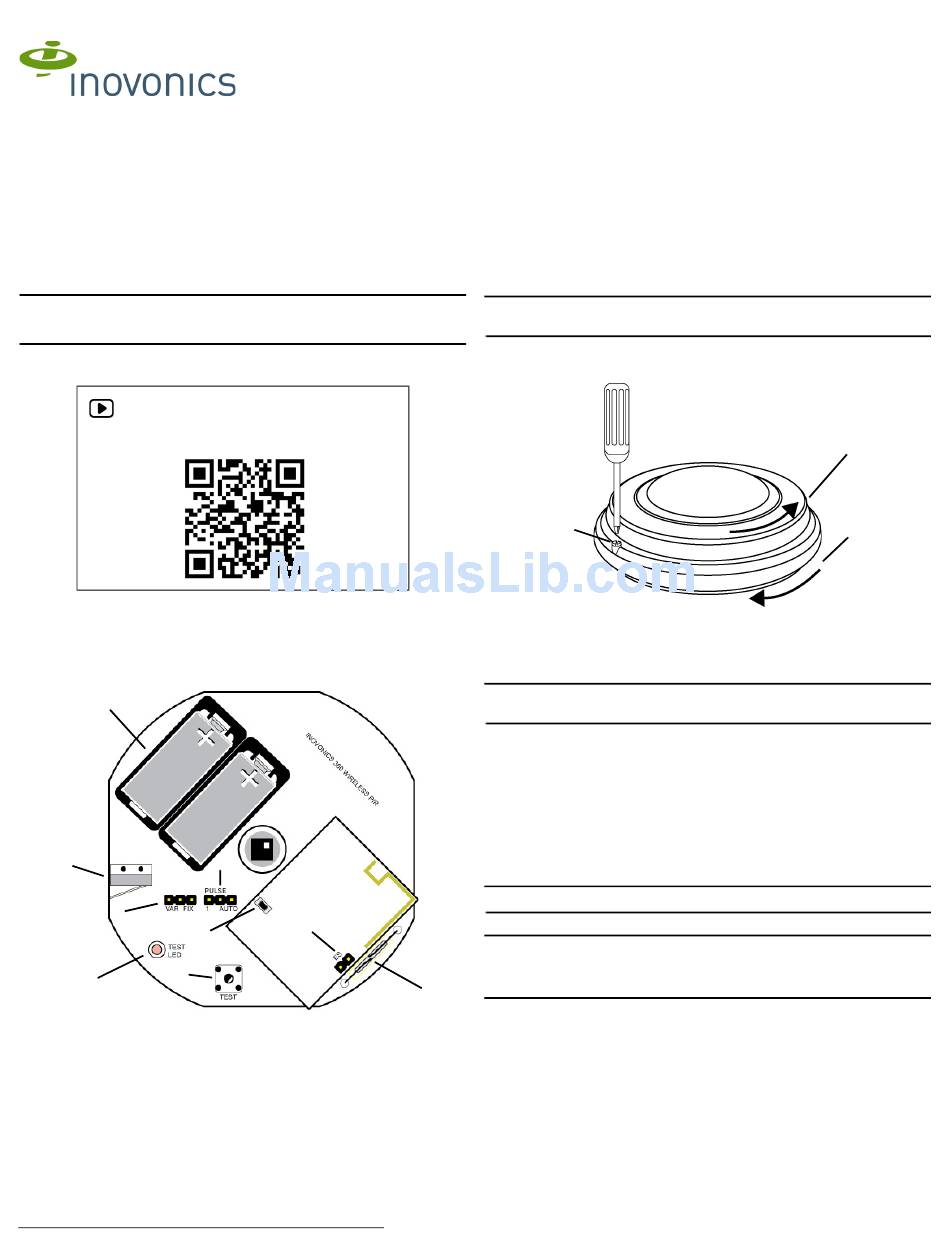

1.2 EE1265 Internal Components

A
B
I
E
F
D
Figure 1 EE1265 internal components
A Batteries B Tamper switch
D Test LED E Reset button
G ES selection H Test reed switch
pins
1.3 What's in the Carton
• Four drywall mounting anchors.
• Four mounting screws.
• Two selection jumper.
• Two 3.0V lithium batteries.
5.25.17 05377D © Inovonics, 2017 - www.inovonics.com
C
G
C Pulse count selection pins
F Test button
I Fixed/variable sleep time
selection pins

2 Installation and Startup

2.1 Installation Notes

• These products are designed to be maintained by professional
security technicians.
• Products are tested for indoor use.
• All products should be manually tested weekly.

2.2 Install the Batteries

The EE1265 can accommodate two batteries for extra battery life, but only
one is required for operation.
Note: When installing batteries, it is recommended that batteries are
replaced in new pairs from the same manufacturer.
To install batteries:
1. Loosen the housing tamper lock screw.
Housing
tamper lock
screw
Figure 2 Remove the housing cover and mounting bracket
2. Install the battery included with the unit.
3. Install an optional second battery.
4. Press the Reset button to initialize the transmitter.
Note: You must press the Reset button each time a new battery is
installed.

2.3 Enable EchoStream Select

To meet ETSI requirements, Inovonics has developed a new line of EE
868MHz-only products. These new 868MHz-only products are compatible
with older systems that include EchoStream Select products. If you are not
using any ES products in your current system, skip to 2.4, "Select PIR
Sensitivity"; if you are using ES products in your current system, you will
need to configure the transmitter.
To enable EchoStream Select compatibility:
5. To enable compatibility with ES products, place a selection jumper on
the ES selection pins.
Note: The selection jumper is included in the EE1265 hardware packet.
6. Press the Reset button to initialize the transmitter.
Caution: When pressing the Reset button, make sure you don't also touch
the ES selection pins. Touching the ES selection pins while pressing the
Reset button can inadvertently set the EE1265 to the wrong frequency
band.
H

2.4 Select PIR Sensitivity

The pulse count selection pins provide control for difficult operating
environments. Automatic pulse count is recommended for reliable
operation in environments subject to temperature fluctuation that can cause
false alarms. The single pulse count mode is more sensitive to minor
temperature variations, and should be used in sites where variant heat
sources will not cause alarms. Automatic pulse count is the factory default
because it allows more reliable operation in environments subject to
temperature fluctuation. If you are using automatic pulse count, skip to 2.5,
"Select Fixed/Variable Sleep Time"; if you are using single pulse count
mode, you will need to configure the transmitter.
To select PIR sensitivity:
7. Place the jumper on the left two pins to select a single pulse count.
Remove
the
housing
cover
Remove
the
mounting
bracket
