Inovonics EN1262HT Installation And Operation Manual

EN1262HT High Traffic Motion Detector
Installation and Operation Manual
1 Overview
The EN1262HT high traffic motion detector solves the battery limitation
problems of motion sensors in commercial applications through an
intelligent sleep timer and low current technology. It features a pet immune
PIR detection element, and wall and housing tamper switches.
1.1 Inovonics Contact Information
For product and installation videos visit us at
www.inovonics.com/videos or use the QR
code below.
If you have any problems with this procedure, contact Inovonics technical
support:
• E-mail: support@inovonics.com.
• Phone: (800) 782-2709; (303) 939-9336.
2 Installation and Startup
2.1 Installation Notes
• These products are designed to be maintained by professional
security technicians
.
• Products are tested for indoor use.
• All products should be manually tested weekly.
2.2 Mount the Housing and Install the Battery
1. Loosen the captive housing screw.
.
2. Open the housing

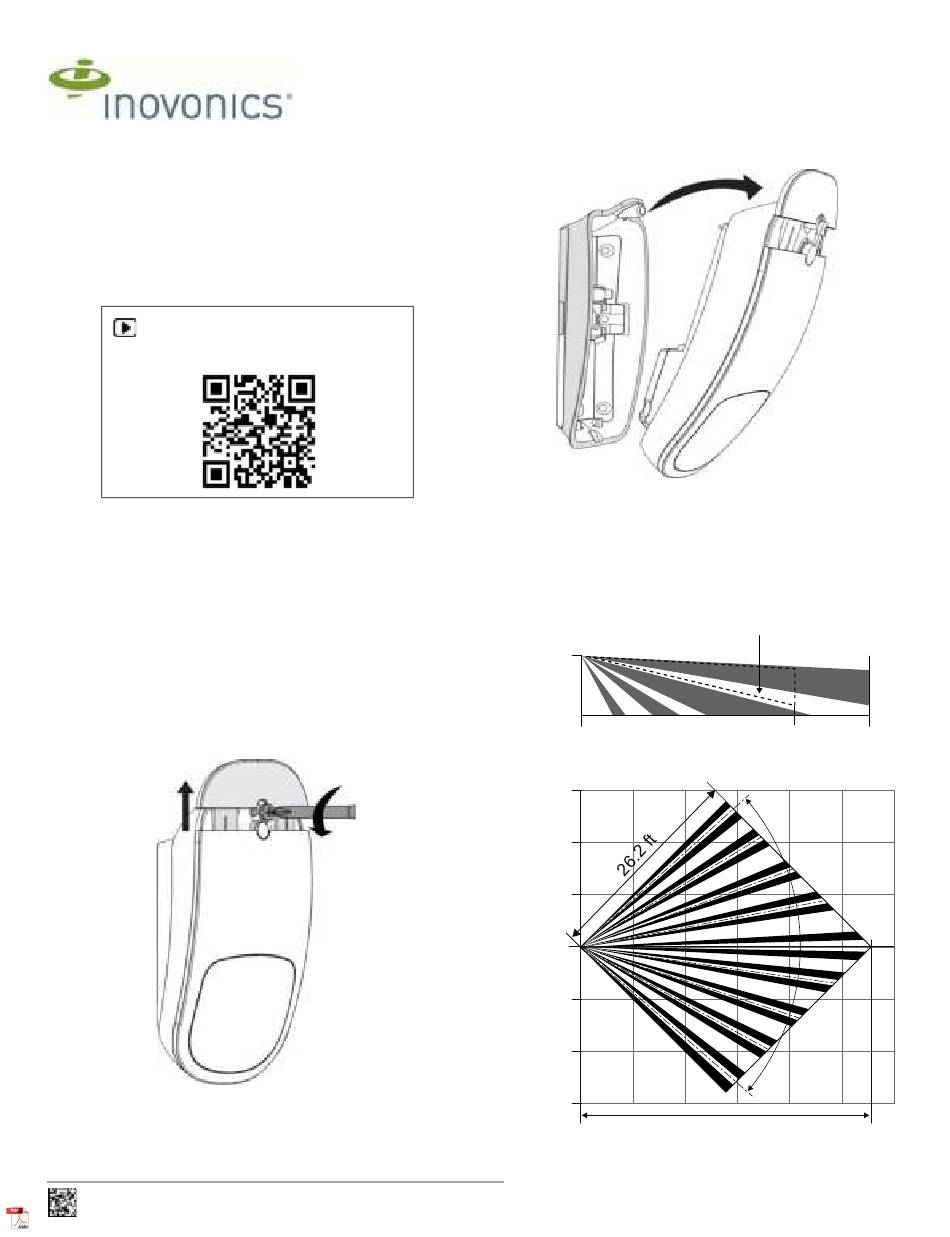

Figure 1 Open the housing
12.9.21 357-00056-01 Rev A © Inovonics, 2021 - www.inovonics.com
3. Remove the EN1262HT from the mounting bracket per Figure 2.
Figure 2 Remove the EN1262HT from the mounting bracket
4. Noting the detection coverage in Figure 3, determine mounting location.
• Avoid areas facing direct sunlight, areas that may change temperature
rapidly, and areas where there are air ducts or substantial airflows.
• The recommended mounting height is 6.5 feet to 7.5 feet
(2.1 to 2.3 m).
Side VIEW
7.2 ft
26.2 ft
13.1 ft
6.6 ft
0
6.6 ft
13.1 ft
26.2 ft
Figure 3 EN1262HT detection coverage area
along side wall
26.2 ft 37 ft
TOP VIEW
89°
37 ft
