EN1263 Motion Detector with Pet Immunity
Installation and Operation Manual

1 Overview

The EN1263 motion detector with pet immunity is an advanced, fully
supervised low-current wireless motion detector that includes an FW2
transceiver for reliable system operation combined with the most advanced
mirror optics detection method. It features pet immunity up to 55 pounds
(25 kg).
1.1 Inovonics Contact Information
For product and installation videos visit us at
www.inovonics.com/videos or use the QR
code below.
If you have any problems with this procedure, contact Inovonics technical
support:
• E-mail: support@inovonics.com.
• Phone: (800) 782-2709; (303) 939-9336.

2 Installation and Startup

2.1 Installation Notes

• These products are designed to be maintained by professional
security technicians
• Products are tested for indoor use
• All products should be manually tested weekly

2.2 Mount the Housing and Install the Battery

1. Loosen the captive housing screw.
.
2. Open the housing

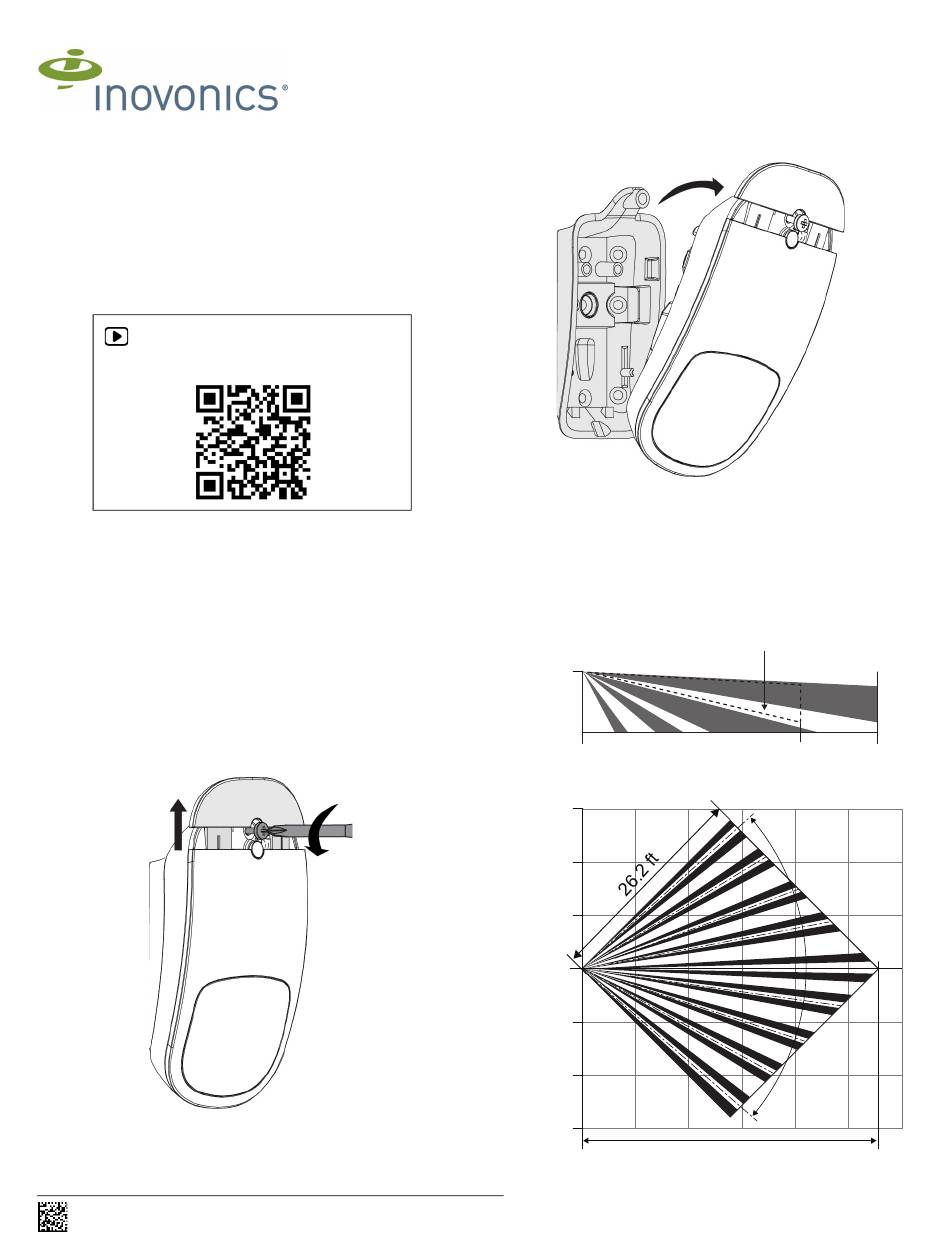

Figure 1 Open the housing
1.27.21 357-00045-01 Rev A © Inovonics, 2021 - www.inovonics.com
3. Remove the EN1263 from the mounting bracket per Figure 2.
Figure 2 Remove the EN1263 from the mounting bracket
4. Noting the detection coverage in Figure 3, determine mounting location.
• Avoid areas facing direct sunlight, areas where areas that may
change temperature rapidly, and areas where there are air ducts or
substantial airflows.
• The recommended mounting height is 6.5 feet to 7.5 feet (2.1 to 2.3
m).
Side VIEW
7.2 ft
26.2 ft
13.1 ft
6.6 ft
0
6.6 ft
13.1 ft
26.2 ft
Figure 3 EN1263 detection coverage area
along side wall
26.2 ft 37 ft
TOP VIEW
89°
37 ft
