Hanna HI 991300 Instruction Manual

Instruction Manual
HI 991300 • HI 991301
Waterproof
pH/EC/TDS/Temperature Meters
with Advanced Features
w w w . h a n n a i n s t . c o m
WARRANTY
All Hanna Instruments meters are warranted for two years
against defects in workmanship and materials when used for
their intended purpose and maintained according to instructions.
The probes are warranted for a period of six months.
This warranty is limited to repair or replacement free of charge.
Damage due to accidents, misuse, tampering or lack of
prescribed maintenance are not covered.
If service is required, contact the dealer from whom you
purchased the instrument. If under warranty, report the model
number, date of purchase, serial number and the nature of the
problem. If the repair is not covered by the warranty, you will
be notified of the charges incurred. If the instrument is to be
returned to Hanna Instruments, first obtain a Returned Goods
Authorization Number from the Customer Service department
and then send it with shipment costs prepaid. When shipping
any instrument, make sure it is properly packaged for complete
protection.
All rights are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
Dear Customer,
Thank you for choosing a Hanna Instruments Product.
Please read this instruction manual carefully before using the
instrument. If you need additional technical information, do not
hesitate to e-mail us at tech@hannainst.com.
PRELIMINARY EXAMINATION
Remove the instrument from the packing material and examine
it carefully to make sure that no damage has occurred during
shipment. If noticeable damage is evident, notify your dealer.
Note: Save all packing material until you are sure that the
instrument functions correctly. All defective items must be
returned in the original packing together with the
supplied accessories.

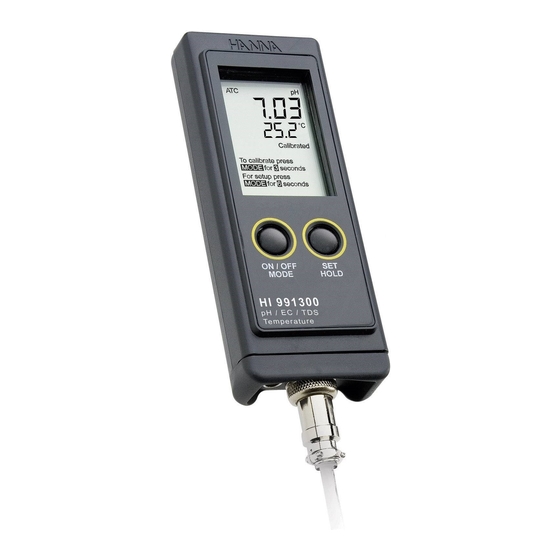

GENERAL DESCRIPTION

HI 991300 and HI 991301 have been designed to offer you
the combination of pH, conductivity, total dissolved solids and
temperature measurements.
To increase precision, two models are available, with different
conductivity ranges, for applications from purified to brackish waters.
All operations and settings, including calibration buffers and
temperature scale selections, are made through only 2 buttons.
The housing is waterproof and rated for IP 67 conditions.
The supplied multi-parameter probe, HI 1288, includes pH, EC/TDS
and temperature in one convenient, rugged probe. In addition, to
ensure against interference from transient electrical noise to pH, a
solid-state preamplifier is integrated into the probe.
Other user selectable features include different TDS factors from
0.45 to 1.00, and a range of temperature coefficients (β) from 0.0
to 2.4% for greater consistency and reproducibility.
Each meter is supplied with:
• HI 1288 pH/EC/TDS probe with built-in temperature
sensor, DIN connector and 1 m (3.3') cable
• Calibration and cleaning solution sachets
• 3 x 1.5V AAA batteries
• Instruction manual.

LCD DESCRIPTION

1. Automatic Temperature Compensation indicator
2. Battery percentage (visible at power up)
3. Secondary display
4. Low battery indicator
5. Stability indicator
6. Calibration indicator
7. Selectable temperature unit
8. Primary display
9. Measuring unit for primary display

ACCESSORIES

HI 1288
pH/conductivity probe with built-in temperature
sensor, DIN connector and 1 m (3.3') cable
HI 7004M pH 4.01 buffer solution, 230 mL bottle
HI 7006M
pH 6.86 buffer solution, 230 mL bottle
HI 7007M pH 7.01 buffer solution, 230 mL bottle
HI 7009M pH 9.18 buffer solution, 230 mL bottle
HI 7010P pH 10.01 buffer solution, 230 mL bottle
HI 7030M 12.88 mS/cm solution, 230 mL bottle
1413 µS/cm solution, 230 mL bottle
HI 7031M
HI 7032M 1382 ppm solution, 230 mL bottle
HI 7038M 6.44 ppt solution, 230 mL bottle
HI 70442M 1500 ppm solution, 230 mL bottle
SPECIFICATIONS
HI 991300 HI 991301
Range pH 0.00 to 14.00 pH 0.00 to 14.00 pH
0 to 3999 µS/cm
EC 0.00 to 20.00 mS/cm
TDS 0 to 2000 ppm (mg/l) 0.00 to 10.00 ppt (g/l)
Temperature 0.0 to 60.0°C / 32.0 to 140.0°F
Resolution pH 0.01 pH 0.01pH
1 µS/cm
EC 0.01 mS/cm
TDS 1 ppm (mg/l) 0.01 ppt (g/l)
Temperature 0.1°C / 0.1°F
Accuracy ±0.01 pH
(@20°C/68°F)
±2 % F.S. (EC / TDS)
±0.5°C / ±1°F
pH Calibration
Automatic, 1 or 2 point, choose between 2 sets
of buffers (pH 4.01/7.01/10.01 or
Nist pH 4.01/6.86/9.18)
EC/TDS Calibration
Automatic, 1 point at
1413 µS/cm
12.88 mS/cm
or 1382 ppm (CONV=0.5) or 6.44 ppt (CONV=0.5)
or 1500 ppm (CONV=0.7) or 9.02 ppt (CONV=0.7)
Temperature pH: Automatic
Compensation
EC/TDS: Automatic with
β selectable from 0.0 to 2.4 %/°C with 0.1 increments
TDS Conversion Factor Selectable from 0.45 to 1.00 with
0.01 increments (default 0.50)
Probe (included) HI 1288 pH/EC/TDS/temperature
with DIN connector and 1 m (3.3') cable
Battery Type 3 x 1.5V AAA
Battery Life Approximately 500 hours of continuous use
Auto-off After 8 minutes of non-use
Environment 0 to 50°C (32 to 122°F);
RH max. 100%
Dimensions 152 x 58 x 30 mm (6.0 x 2.3 x 1.2")
Weight 205 g (7.2 oz.)
Hanna Instruments reserves the right to modify the design,
construction and appearance of its products without advance
notice.
IST991300Z 01/11
