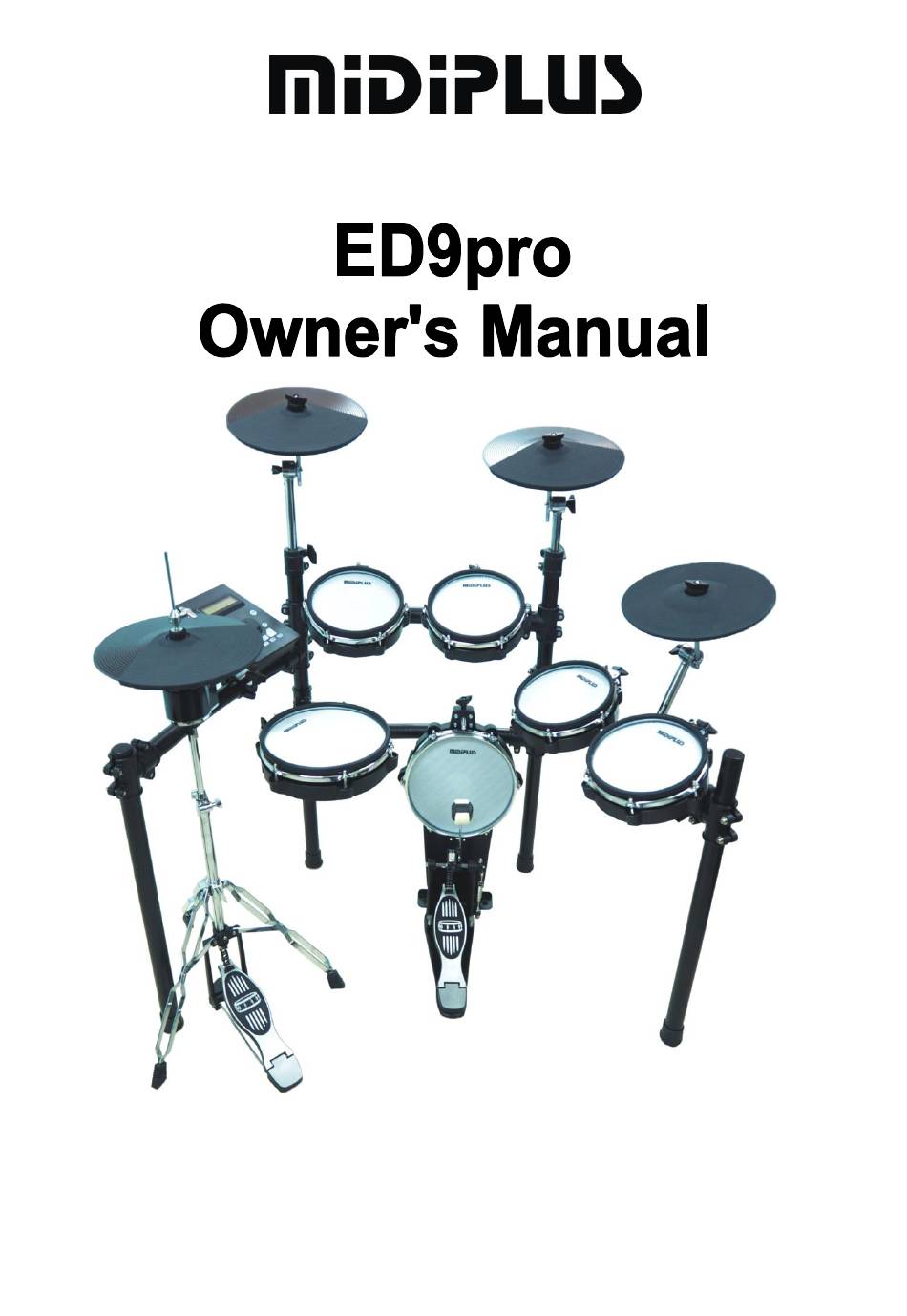

- Page 1 MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...
-
Page 2: Table Of Contents
CONTENTS Preface ..............................1 What’s in the Box? ..........................1 ED9pro Overview ..........................1 Caution ..............................1 Chapter1. Setup..........................2 1.1. Quick Start ........................2 1.1.1. Choosing Drum Sounds ..................2 1.1.2. Playing Along with a Song or MP3 ..............2 1.1.3. - Page 3 Click setting ....................... 11 5.1.3. Demo setting ...................... 11 5.1.4. Advanced setting ....................12 5.2. Specification....................... 12 5.3. Drum Voice List ......................13 Chapter6. Appendix ........................20 6.1. Drum kit assembly ..................... 21 6.2. Control box assembly....................25 MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...
-
Page 4: Preface
Preface Thank you for buying a ED9pro electronic drums, MIDIPLUS company with the most simple and convenient setting operation mode to make it easier for beginners handy target, please read the instruction manual before use. What’s in the Box? Included in the MIDIPLUS ED9pro package, you should find: ... -
Page 5: Setup
Snare Rim shot/Cross stick 1. Press the [Kit] button. Press the [Mute] button to display the top right corner of the screen displays the CS (cross stick). 2. Then click the [Mute] button, CS disappear (rim shot). MIDIPLUS Co, Ltd. http://www.midiplus.com.tw... -
Page 6: Overview
1.2. Overview 1.2.1. Front Panel LCD Display VOLUME Edit button RECORD Data Dial Play button Decrease values Increase values Click button Mute button Snare Rim shot/Cross stick Start/Stop button Song button Kit button MIDIPLUS Co, Ltd. http://www.midiplus.com.tw... -
Page 7: Rear Panel
1.2.2. Rear Panel DB25 ： KICK 、 SNARE 、 TOM1~3、CRASH 、RIDE、 TOM 4 CRASH CRASH HI-HAT、HH-CTRL Right sound channel output /MONO Left sound channel output USB disk DC 9V POWER ON/OFF HEADPHONE MIDIPLUS Co, Ltd. http://www.midiplus.com.tw... -
Page 8: Basic Settings
4. The basic rhythm set to restore factory default settings. Before turning to hold down [Kit], and then turn on the power switch. 5. Advanced Drum Set restores factory default setting. Before turning to hold down [Mute], then turn on the power switch. MIDIPLUS Co, Ltd. http://www.midiplus.com.tw... -
Page 9: Basic Skills
2. Turn the [value knob] or [+], [-] button to select the playback. 3. Press the Start / Stop button [ ] to play or stop demo. 4. If there is no press Stop, you can continue to single loop playback. MIDIPLUS Co, Ltd. http://www.midiplus.com.tw... -
Page 10: Play Music With Usb Disk(Usb Memory)
All Stop：After all the songs are played, stop playing. 2.3.5. Selection music mode 1. Press [EDIT] button, then press [SONG] , LCD display[MP3 EQ mode:] ,[Normal]. 2. Rotation [knob] or [+], [-] button, choose Normal, POP, Rock, Jazz, Classic. MIDIPLUS Co, Ltd. http://www.midiplus.com.tw... -
Page 11: Using The Metronome
2. Percussion Drum group began recording. 3. Press [Record]button, lights off, it stops recording. 2.5.2. Playing 1. Press the [Play] button lights. 2. Started playing percussion drum set. Press the [Play] button, lights off, it stops recording MIDIPLUS Co, Ltd. http://www.midiplus.com.tw... -
Page 12: Drum Group Editor
5. Use the [value knob] or [+], [-] key to select To set the user-defined groups (USER KIT 1 ~ 10) 6. Press the start / stop key [ ], the screen will display saving..7. The complete storage. 3.1.6. Changing values Press [Edit] button lights out, exit edit mode. MIDIPLUS Co, Ltd. http://www.midiplus.com.tw... -
Page 13: Advanced Function Setting
4.1. Hi-hat splash Exclusive adjustment "pedal cymbals" caused by water splashing on the ground similar to the natural sound effects, the more obvious the higher the value. 4.2. Reverb on/off All drums echo control master switch. MIDIPLUS Co, Ltd. http://www.midiplus.com.tw... -
Page 14: Reference
Press Click Button - 1 Click Volume 0~100 Press Click Button - 2 Click Tempo 30~250 5.1.3. Demo setting Edit+ Song(Cycle selection) Display Range Press Song Button - 1 Snog Volume 0~100 Press Song Button - 2 Snog Tempo 30~250 MIDIPLUS Co, Ltd. http://www.midiplus.com.tw... -
Page 15: Advanced Setting
Song format MIDI Number USB Disk Format .MP3, .WAV Tempo 30-250 Metronome Time signatures Audio files Sampling format 44.1Khz/16bit PCM Display 16x2 LCD Other items line out, head phone, USB, DB25, Tom4, Crash2, Connectors Crash3, USBMEMORY MIDIPLUS Co, Ltd. http://www.midiplus.com.tw... -
Page 16: Drum Voice List
TranceKick 04 TranceKick 05 Custom_Kick2 Custom_Kick1 Snare PC:101 Total=125 Snare-Rock-1 Snare-Rock-1-Rimshot Snare-Rock-1-Rimshot-X Snare-Rock-1-Rimshot2 Snare-Rock-1-Rimshot3 Snare-Rock-1-Rimshot4 Snare-Rock-1-Cross-Stick Snare-Rock-1-Cross-Stick2 Snare-Rock-1-Cross-Stick3 Snare-Rock-2-XL Snare-Rock-2-S Snare-Rock-2-S-mezzo Snare-Rock-2-S-snappy Snare-Rock-2-RimShot Snare-Rock-2-RimShot-X Snare-Rock-2-RimShot2-X Snare-Rock-2-RimShot3-X Snare-Rock-2-Cross-Stick Snare-Rock-3 Snare-Rock-3-RimShot Snare-Pop-1 Snare-Pop-1-Hi-rimshot Snare-Pop-1-Hi-Rimshot-2 Snare-Pop-1-Lo-rimshot-XL Snare-Pop-1-Lo-Rimshot Snare-Pop-1-Lo-Rimshot-2 Snare-Pop-1-Lo-Rimshot-3 MIDIPLUS Co, Ltd. http://www.midiplus.com.tw... - Page 17 FunkSnare Rimshot 02 Custom_Snare2 Custom_Snare2_rim Custom_Snare3 Custom_Snare3_rim Custom_Snare4 Custom_Snare4_rim Custom_Snare1 Custom_SnareRimShort1 Custom_SnareSideStick1 Toms PC:102 Total=112 Tom-Rock1-4-XL Tom-Rock1-3-XL Tom-Rock1-2-XL Tom-Rock1-1-XL Tom-Rock1-4-Rim Tom-Rock1-3-Rim Tom-Rock1-2-Rim Tom-Rock1-1-Rim Tom-Rock1-EQ-4-XL Tom-Rock1-EQ-3-XL Tom-Rock1-EQ-2-XL Tom-Rock1-EQ-1-XL Tom-Rock1-EQ-4-Rim Tom-Rock1-EQ-3-Rim Tom-Rock1-EQ-2-Rim Tom-Rock1-EQ-1-Rim Tom-Pop1-4 Tom-Pop1-3 Tom-Pop1-2 Tom-Pop1-1 Tom-Pop1-4-Rim MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...
- Page 18 Custom_Mtt1 Custom_Htt1 Custom_BttRim1 Custom_FttRim1 Custom_MttRim1 Custom_HttRim1 HiHat PC:103 Total=100 HH_Classic_14_Shoulder_OpenX HH_Classic_14_Shoulder_HalfOp3X HH_Classic_14_Shoulder_HalfOp2X HH_Classic_14_Edge_OpenX HH_Classic_14_Edge_HalfOp3X HH_Classic_14_Shoulder_Closed2X HH_Classic_14_TchickX HH_Classic_14_Edge_HalfOp1X HH_Classic_14_Edge_Closed2X HH_Classic_14_SplashX HH-Rock-Top-open HH-Rock-Top-half4 HH-Rock-Top-half2 HH-Rock-Top-closed HH-Rock-Edge-open-XL HH-Rock-Edge-half3 HH-Rock-Edge-half1 HH-Rock-Edge-closed-XL HH-Rock-chick HH-Rock-splash HH-Brush-1-open HH-Brush-1-half3 HH-Brush-1-closed3 HH-Brush-1-chick HH-Brush-1-open-XL HH-Brush-1-half2 HH-Brush-1-half1 MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...
- Page 19 Crash-Metal-3-edge Crash-Metal-3-edge-XL Crash-Metal-3-edge2 Crash-Metal-4-edge Crash-Metal-4-edge-XL Crash-Jazz-1-edge Crash-Jazz-1-edge-XL Crash-Jazz-1-edge2 Crash-Jungle-1-edge Crash-Jungle-2-edge Crash-Jungle-3-edge Crash-Jungle-4-splash-hi Crash-Jungle-4-splash-hi-XL Crash-Jungle-4-splash-hi2 Crash-Jungle-6-splash-side Crash-Jungle-5-splash-hi-muted Crash-Jungle-5-splash-hi-muted-xL China-Vintage-1 Crash-Vintage-1-edge Crash-Jungle-6-splash-side-XL Crash-Vintage-2-edge Crash-Vintage-3-edge FunkCrash1 01 FunkCrash1 02 FunkCrash2 01 FunkCrash2 02 FunkSplash 01 FunkSplash 02 HouseCrash 01 MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...
- Page 20 PopRide Edge PopRide Top RockRide Bell RockRide Edge RockRide Top Custom_RideBell1 Custom_RideEdge1 Custom_RideBow1 Std51NEW_ride1 Std59NEW_ride2 Std53NEW_bell Perc PC:106 Total=33 ma808 mcg808 Std54d Std56d Std58d Std60d Std61d Std62d Std63d Std64d Std65d Std66d Std67d Std68d Std69d Std70d Std71d Std72d MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...
- Page 21 高音锣 3 川戏锣 1 川戏锣 2 开道锣 堂鼓 1 堂鼓 2 堂鼓 3 钹 1 钹 1 闷音 钹 2 钹 2 闷音 钹 3 钹 3 闷音 排鼓 1 排鼓 2 排鼓 3 排鼓 4 MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...
- Page 22 MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...
-
Page 23: Chapter6
Chapter6. Appendix Crash Crash 2 Z11 Pro BT Tom 1 Tom 2 Ride Hi-Hat Tom 3 Snare Tom 4 Kick H.H-Ctrl MIDIPLUS Co, Ltd. http://www.midiplus.com.tw... -
Page 24: Drum Kit Assembly
6.1. Drum kit assembly kick rod x1 Cymbal mounts x4 RIDE KICK snare rod x1 MIDIPLUS Co, Ltd. http://www.midiplus.com.tw... - Page 25 1. Install Kick drum pedal and step on the hammer. 2. L-strut insert drum plate bracket deck. 3. Finally, the Cha piece strut stent insertion clips Use black nut to adjust the position. Strut toward the direction of the player. http://www.midiplus.com.tw MIDIPLUS Co, Ltd.
- Page 26 KICK bolt bolt CYMBAL/RIDE bolt bolt Adjustable SNARE http://www.midiplus.com.tw MIDIPLUS Co, Ltd.
- Page 27 H.H.-CTRL http://www.midiplus.com.tw MIDIPLUS Co, Ltd.
-
Page 28: Control Box Assembly
SSEMBLY The back of the control box has three screw holes aligned holes lever control box, screw lock Control box assembly to the bracket, lock can be fixed, then the audio cable into the corresponding socket. http://www.midiplus.com.tw MIDIPLUS Co, Ltd.
