TREND LLO Installation Instructions
TREND LLO Installation Instructions

TREND LLO Installation Instructions

Outside light level sensor

Advertisement

Quick Links

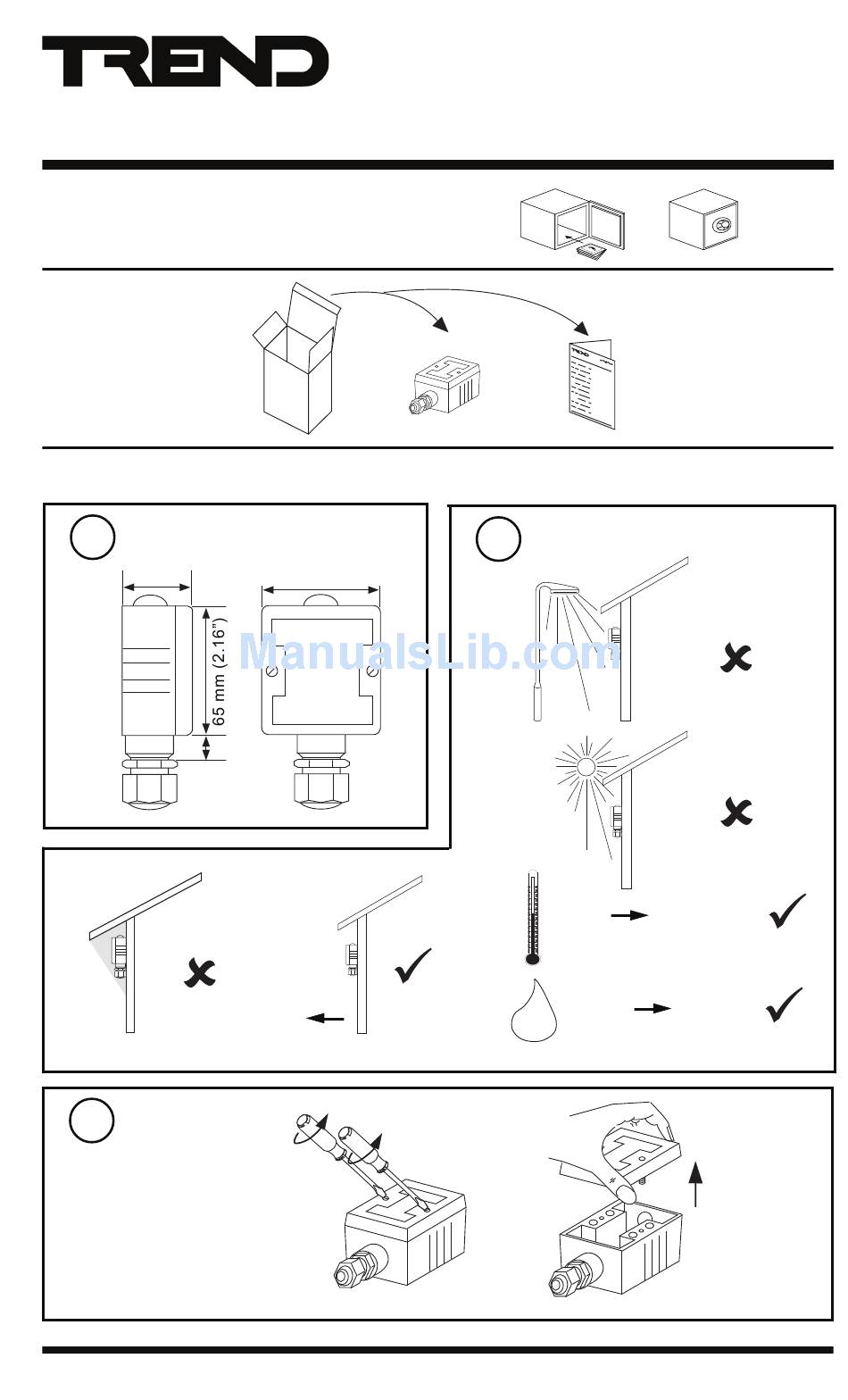

Important: Retain these instructions

UNPACKING

INSTALLATION
Dimensions
1
36 mm (1.42")
c
3

Remove Lid

undo 2 screws
LLO Installation Instructions TG100153A Issue 4, 15/07/09
60 mm (2.4")
10 mm
(0.4")
d
N
(north)
Outside Light Level Sensor
2
a
b
e
H O
2

Installation Instructions

LLO Installation
Instructions
TG100153A

Requirements

+70 °C
-25 °C
+158 °F
-13 °F
0 %RH
95 %RH
Protection
:IP65 (NEMA 4)
LLO
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LLO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TREND LLO

  • Page 1: Installation Instructions

    Dimensions Requirements 36 mm (1.42”) 60 mm (2.4”) 10 mm (0.4”) +70 °C -25 °C +158 °F -13 °F 0 %RH 95 %RH (north) Protection :IP65 (NEMA 4) Remove Lid undo 2 screws LLO Installation Instructions TG100153A Issue 4, 15/07/09...
  • Page 2 IQ1 or IQ2 24 Vdc Analogue input channel linked for current (I) Sensor, although Terminate screen at marked, is polarity IQ end only independent Sensor 0 (0 V) N (in) + (24 V) LLO Installation Instructions TG100153A Issue 4, 15/07/09...
  • Page 3 Installation Instructions INSTALLATION (continued) Set up Range (if required to change from default of 2000 Lux) e.g. Range 20000 lux Replace Lid tighten 2 screws Configure IQ IQ Configuration Manual 90-1533 LLO Installation Instructions TG100153A Issue 4, 15/07/09...
  • Page 4 Division of Honeywell Technologies Sàrl, Z.A. La Pièce, 16, 1180 Rolle, Switzerland by its Authorized Representative. Trend Control Systems Limited reserves the right to revise this publication from time to time and make changes to the content hereof without obligation to notify any person of such revisions or changes.
