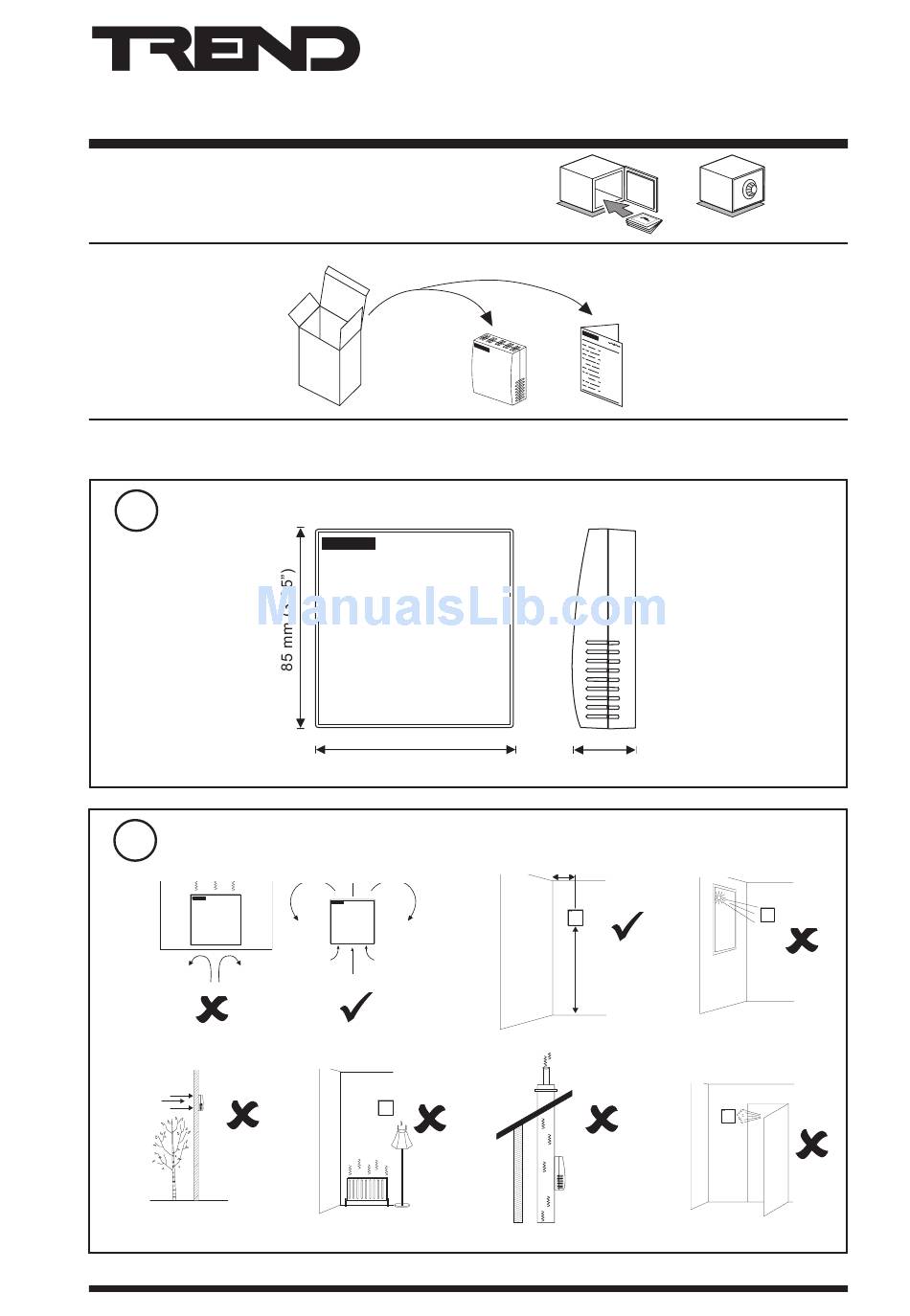

Thermistor Room Temperature Sensors
Important: Retain these instructions
unpackIng
InSTallaTIon
1
Dimensions
2
Requirements
a
d
TB/TS Thermistor Room Temperature Sensors Installation Instructions TG200604 Issue 2, 08/03/2011
85 mm (3.35")
e
Installation Instructions
26 mm (1.02")
> 50 cm (20")
b
1.5 m
(5 ft)
f
TB/TS
TB/TS
Installation
Instructions TG200604
c
g
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TREND TBTS
Summary of Contents for TREND TBTS
-
Page 1: Installation Instructions
Installation Instructions TB/TS Thermistor Room Temperature Sensors Important: Retain these instructions unpackIng TB/TS Installation Instructions TG200604 InSTallaTIon Dimensions 85 mm (3.35”) 26 mm (1.02”) Requirements > 50 cm (20”) 1.5 m (5 ft) TB/TS Thermistor Room Temperature Sensors Installation Instructions TG200604 Issue 2, 08/03/2011... - Page 2 TB/TS Installation Instructions InSTallaTIon (continued) +50 °C -10 °C Requirements (continued) (122 °F) (14 °F) +40 °C measurement 0 °C (32 °F) (104 °F) 0 %RH 90 %RH Remove backplate Mount backplate EITHER mount to BESa box 35 mm (1.38”) 35 mm (1.38”) oR wall oR wall box...
- Page 3 Installation Instructions TB/TS InSTallaTIon (continued) Wire to controller Terminal size 0.5 to 2.5 mm (14 to 20 AWG) if IQ if IQl Note that screened cable is not required for SENSOR sensor wiring to IQLs. If screened cable is used, COM (0V) the screen must be terminated at the controller TB/TS...
- Page 4 Honeywell Technologies Sàrl, Ecublens, Z.A. La Pièce, 16, 1180 Rolle, Switzerland by its Authorized Representative, Trend Control Systems Limited. Trend Control Systems Limited reserves the right to revise this publication from time to time and make changes to the content hereof without obligation to notify any person of such revisions or changes.
