EMX I/O Module with 2 Gigabit Ethernet, 6 Serial Ports, and 14 GPIO
Revision
A.0
2/17/2013
A.1
FOR TECHNICAL SUPPORT
PLEASE CONTACT:
support@diamondsystems.com
EMX-ESG User Manual
Date
Comment
Initial Release
3/5/15
Jumper information enhanced
Copyright 2015
Diamond Systems Corporation
555 Ellis Street
Mountain View, CA 94043 USA
Tel 1-650-810-2500
Fax 1-650-810-2525
www.diamondsystems.com
Advertisement
Table of Contents
Related Manuals for Diamond Systems EMX-ESG Series
Summary of Contents for Diamond Systems EMX-ESG Series

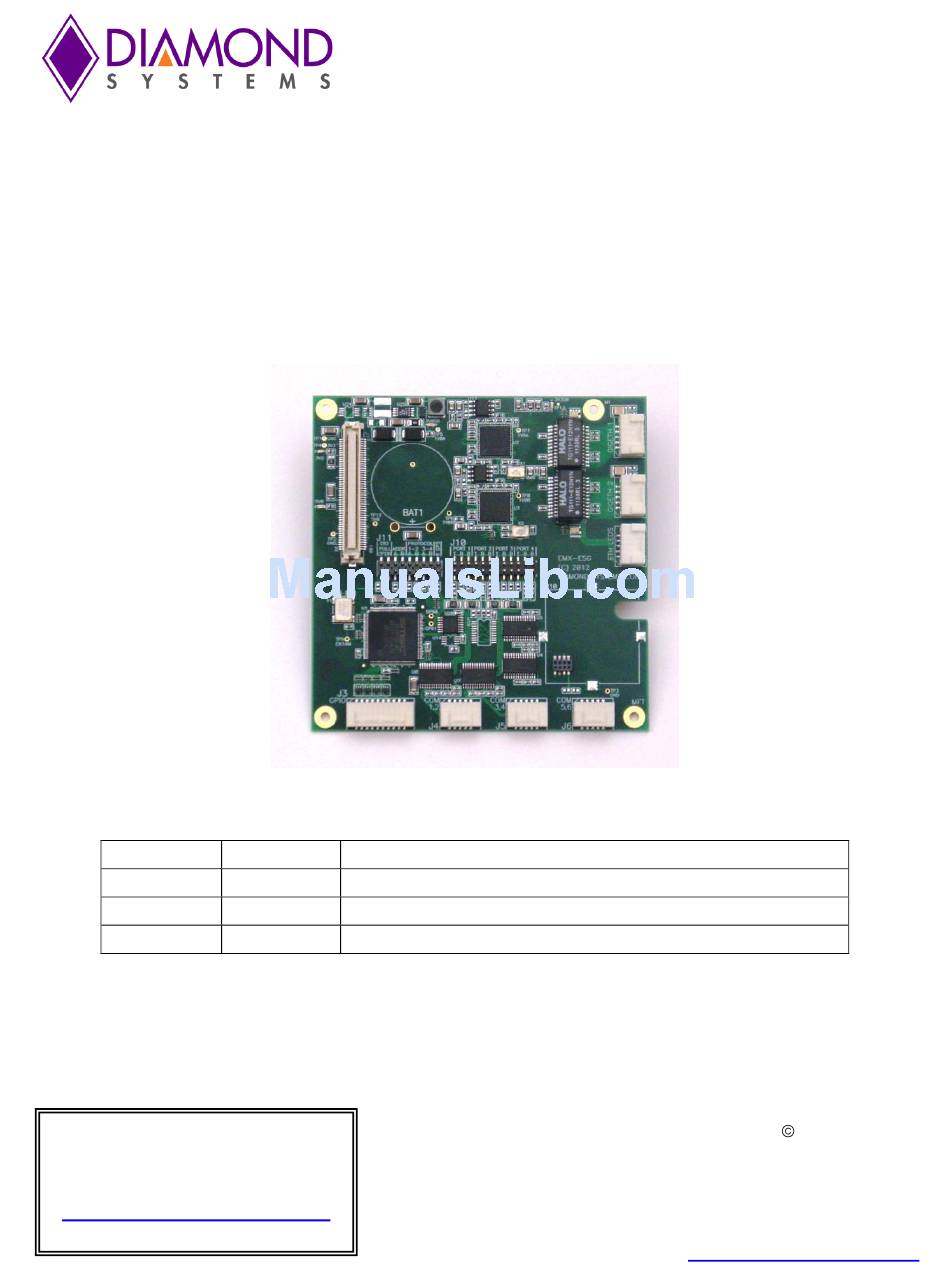

- Page 1 EMX I/O Module with 2 Gigabit Ethernet, 6 Serial Ports, and 14 GPIO Revision Date Comment 2/17/2013 Initial Release 3/5/15 Jumper information enhanced Copyright 2015 FOR TECHNICAL SUPPORT Diamond Systems Corporation PLEASE CONTACT: 555 Ellis Street Mountain View, CA 94043 USA support@diamondsystems.com Tel 1-650-810-2500 Fax 1-650-810-2525 www.diamondsystems.com...
-
Page 2: Table Of Contents
Contents Important Safe Handling Information ......................3 Introduction ...............................4 Features .................................4 2.1.1 Main Feature List ..........................4 2.1.2 Mechanical, Electrical, Environmental ....................4 Cable List ...............................4 Functional Overview ............................5 Functional Block Diagram ..........................5 Ethernet .................................5 Serial Ports ..............................6 General Purpose I/O ............................6 GPS ................................6 Board Outline and Layout ..........................7 EMX-ESG Board Drawings ...........................7 Connector and Jumper List ..........................8... -
Page 3: Important Safe Handling Information
The list here describes common causes of failure found on boards returned to Diamond Systems for repair. This information is provided as a source of advice to help you prevent damaging your Diamond (or any vendor’s) boards. -
Page 4: Introduction
2. INTRODUCTION EMX-ESG is an EMX compact format I/O module featuring two PCI Express gigabit Ethernet ports, an LPC UART with 6 serial ports, and 24 GPIO lines. It uses two PCIe x1 links and one LPC clock on the EMX bus. 2.1 Features 2.1.1 Main Feature List 2 Gigabit Ethernet ports on pin headers, with on-board magnetics... -
Page 5: Functional Overview
3. FUNCTIONAL OVERVIEW 3.1 Functional Block Diagram Figure 1. EMX-ESG Functional Block Diagram 3.2 Ethernet Each Ethernet port consists of an Intel 82574IT PCIe x1 Ethernet MAC/PHY. Magnetics and configuration EEPROM are included on the board to provide a complete circuit. www.diamondsystems.com EMX-ESG User Manual Rev A.1 Page 5... -
Page 6: Serial Ports
3.3 Serial Ports EMX-ESG includes an SMSC SCH3116 6-port UART to provide 6 serial ports. Ports 1-4 use Exar SP336 multiprotocol transceivers to support RS-232, RS422, and RS-485. On these ports, signals TX, RX, CTS, and RTS are available in RS-232 mode. In RS-485 mode, the transmitter is controlled by the RTS line. Ports 5-6 have only TX and RX signals. -
Page 7: Board Outline And Layout
4. BOARD OUTLINE AND LAYOUT 4.1 EMX-ESG Board Drawings The following diagrams show the locations for all connectors and jumpers which are described in the next section. Figure 2: EMX-ESG Top Drawing (Connectors and Jumpers) www.diamondsystems.com EMX-ESG User Manual Rev A.1 Page 7... -
Page 8: Connector And Jumper List
Signal functions relating to all of EMX-ESG’s interface connectors are discussed in detail in Section 6 of this document. Other connectors and jumper blocks on the board are reserved for Diamond Systems’ use only. Connector Function... -
Page 9: Connector Pinout And Pin Description
6. CONNECTOR PINOUT AND PIN DESCRIPTION 6.1 EMX Top (J1) Signal names in parenthesis are signals going to the specified pin number of the bottom connector (J2). NC means no connects between top and bottom connectors on this board. (NC) PCIe TX1+ PCIe TX4+ (J2-10) (NC) PCIe TX1- PCIe TX4- (J2-12) -
Page 10: Emx Bottom (J2)
6.2 EMX Bottom (J2) Signal names in parenthesis are going to the specified pin number of the top connector (J1). NC means no connects between top and bottom connectors on this board. GND means tied to ground on this board. (J1-03) PCIe TX1+ PCIe TX4+ (NC) (J1-05) PCIe TX1-... -
Page 11: Gpio (J3)
6.3 GPIO (J3) A 26-pin connector provides 14 GPIO lines from the SCH3116, identified as ports A, B, and C. These lines have 3.3V logic levels with 5V input tolerance. The connector also provides access to the 1PPS signal from an optional installed GPS module. -
Page 12: Serial Ports (J4, J5, J6)
6.4 Serial Ports (J4, J5, J6) The SCH3116 offers 6 serial ports. In RS-232 mode, ports 1-4 have TX, RX, CTS, and RTS signals, while ports 5- 6 have only TX and RX signals. The following pinouts are the pin definition of the SP336 transceiver when its protocol is switched between RS-232, RS-422, and RS-485. -
Page 13: Ethernet Leds (J9)
6.6 Ethernet LEDs (J9) Each Ethernet port has 3 LED signals that may be used to drive indicator LEDS. These signals are available on an I/O connector. The signals also drive on-board LEDs. LED1 is the link indicator; an LED is connected between this signal and +3.3VDC. -
Page 14: Jumper Configuration Information
JUMPER CONFIGURATION INFORMATION 7.1 Serial Port Termination (J10) Serial ports 1-4 each require three jumpers per port for 120 ohm termination and bias resistors. The default configuration with no jumpers installed is shown below. Pin 1 Figure 3: Serial Port Termination Jumper Block Pins Termination Enable/Disable 1-2 no jumper... -
Page 15: Address And Protocol (J11)
7.2 Address and Protocol (J11) Jumper J11 provides the configuration jumpers for the GPIO, serial port addresses and protocols and GPS as outlined below. The general purpose DIO pull-up/down setting is configured with two jumpers, one for pull-up (default) and the other pull-down. - Page 16 Pins Setting 1-2 jumper (no 3-4 jumper) DIO pull up to +5V (default) 3-4 jumper (no 1-2 jumper) DIO pull up to +3.3V 5-6, 7-8 jumpers Base address 0x162E (default) 5-6 jumper, 7-8 no jumper Base address 0x164E 5-6 no jumper, 7-8 jumper Base address 0x002E 5-6, 7-8 no jumpers Base address 0x004E...
-
Page 17: Specifications
SPECIFICATIONS 8.1 General Functions 2 Gigabit Ethernet ports based on Intel 82574IT Ethernet chips 4 RS-232/422/485 ports 2 RS-232 ports (3.3V logic level optional) All six serial ports from SMSC SCH3116 UART 14 general purposed digital I/O lines Programmable direction with I/O buffers 3.3V logic level with 5V compatibility Supports Condor C2626 23-channel GPS receiver EMX stackable I/O expansion...
