KEDDY K700 Installation Instructions Manual

Wood burning stove

Advertisement

Quick Links

K700
Installation Instructions
Care and firing instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KEDDY K700

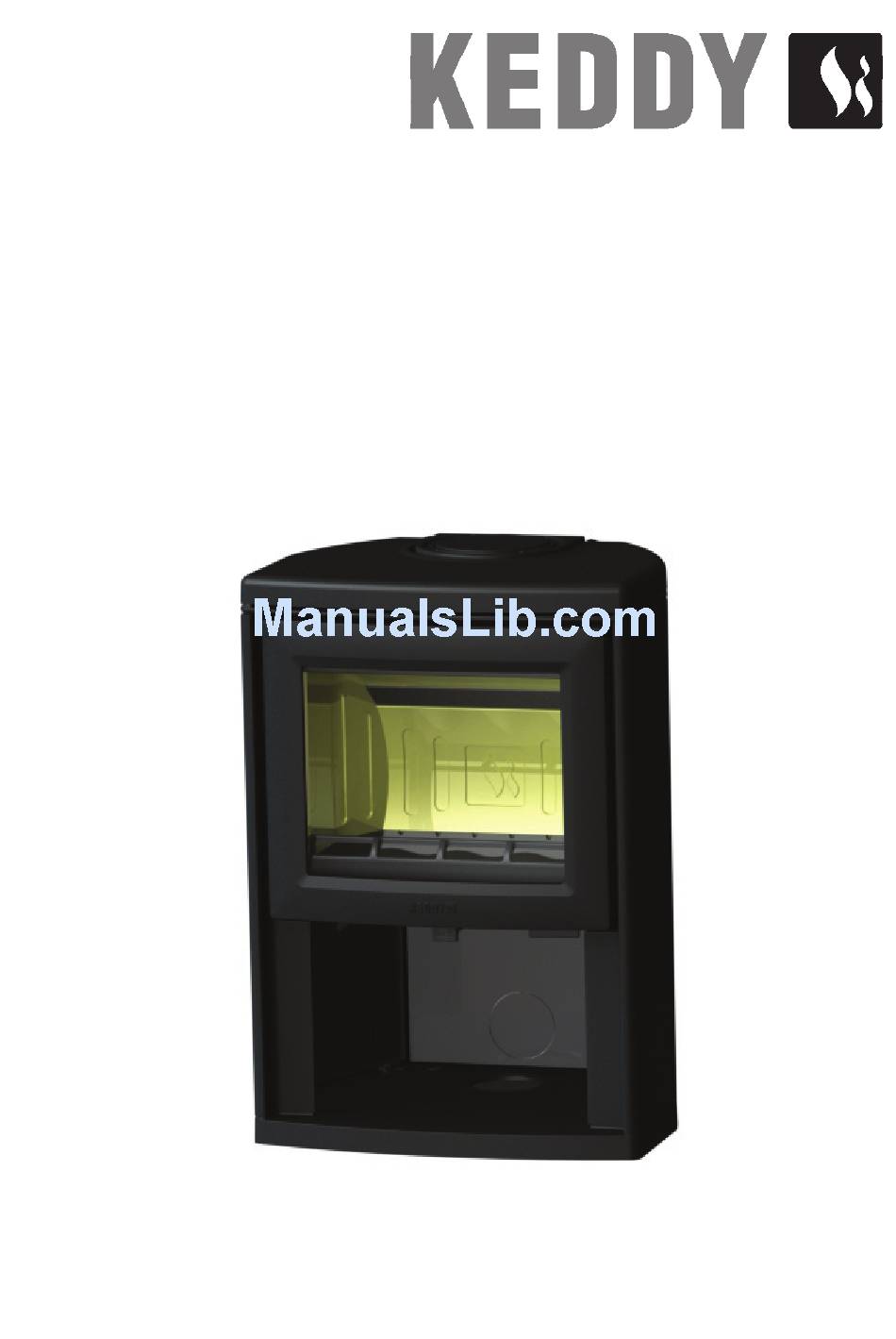

  • Page 1 K700 Installation Instructions Care and firing instructions...
  • Page 2: Table Of Contents

    CONTENTS GENERAL INFORMATION......................3 IMPORTANT POINTS......................3 PRECONDITIONS........................4 Building notice Distance to flammable structural units Floor plate Outdoor air supply Flue Chimney connections PREPARATIONS........................5-7 Flue connections for rear and top installation Floor plate and outdoor air connection Unpacking Dismantling INSTALLATION INSTRUCTIONS..................7-8 CARE & FIRING INSTRUCTIONS..................9-10 TECHNICAL SPECIFICATION....................11 Dimensions and performance Dimension drawings...
  • Page 3: General Information

    Important! Save these installation instructions and the associated firing instructions! Quality approval The K700 has been tested at a certified testing institute and meets the requirements in the Swedish Building Regulations and for CE Marking. The K700 is intended for use as a secondary heat source.
  • Page 4: Preconditions

    OUTDOOR AIR SUPPLY For the combustion of wood air/supply air is required. The K700 must be placed at a distance of 100 mm The K700 can be provided with an external air supply, from flammable walls. To maintain the distance of...
  • Page 5: Preparations

    PREPARATIONS Outdoor air Rear Installation 1. FLOOR PLATE AND OUTDOOR AIR CONNECTION Arrange the floor plate according to the instructions on page 4 under the heading Floor plate. If you Outdoor air choose to make your own floor plate, the minimum Bottom Installation dimensions stated in the above-mentioned point must be followed at all times.
  • Page 6: Unpacking

    If the outer diameter of the flue is ∅128 mm, the shaft must be at least 328 mm x 328 mm. 3. UNPACKING The K700 is delivered on a pallet broken down into the following parts: Stove completely assembled Hearth plates, glove etc.
  • Page 7: Installation Instructions

    2. To dismantle the front/door, start by unscrewing the two front bolts that secure the inner roof to the cassette front. After this, loosen the centre screw at the centre of the inner roof's front edge. Then open the door fully. Unscrew the four bolts in each corner.
  • Page 8 2. If the stove is to be connected at the rear, the back plate has to be removed by loosening the two Torx screws on the top. Then, loosen the flue connection using the two bolts inside the hearth. After this, turn the con- nection round and reassemble it again.
  • Page 9: Care & Firing Instructions

    CARE & FIRING INSTRUCTIONS Keddy's K700 has been tested by a certified testing institute. It has extremely good environ- mental values and a useful efficiency exceeding 80%. For the stove to work optimally, it is of key importance that you follow the care and firing instructions below. Non-compliance will invalidate the warranty.
  • Page 10: Care & Firing Instructions

    The K700 is equipped with an innovative self- live embers for a very long time! closing and self-locking door. When putting...
  • Page 11: Technical Specification

    K700 TECHNICAL SPECIFICATION DIMENSIONS AND PERFORMANCE Height 820 mm Width 564 mm Depth 425 mm Weight 170 kg Height, centre rear connection 665 mm Height, top connection 820 mm Outer dimensions: connection sleeve ∅125 mm Useful efficiency 80 % Rated output...
  • Page 12 - 12 -...
