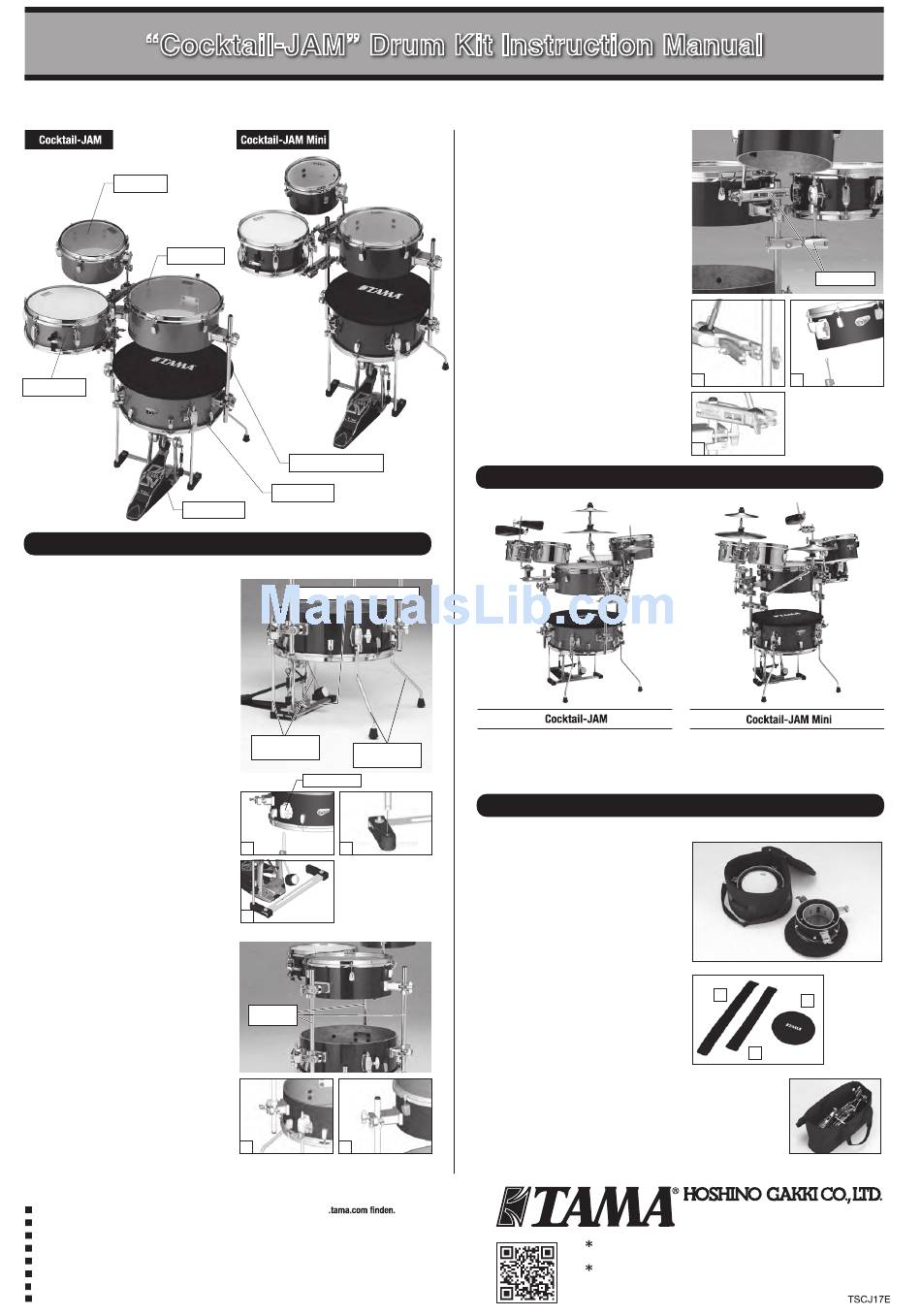

"Cocktail - JAM" Drum Kit Instruction Manual
Thank you for purchasing the TAMA Cocktail-JAM, or Cocktail-JAM drum kit. In order to ensure safe usage and to take full advantage of this product' s capabilities,
please read this manual before use. Keep the manual in a safe place for future reference.
Tom Tom
Floor Tom
Snare Drum
Drum Pedal

Assembly

1. Bass Drum

<1-1> Insert the bass drum legs into the 4
leg brackets (a) on the bass drum, and
tighten the T-bolts to fix them in place.
The 2 straight legs should be on the
drummer's side. The 2 curves legs should
face away from the drummer.
<1-2> Attach the connecting bar for the
drum pedal to the 2 straight legs on the
player's side. Insert the bass drum legs
into the holes (b) on the plastic parts of
the connecting bar. From the player's
view, the plate of connecting bar should
be positioned behind the 2 legs.
<1-3> Attach the drum pedal to the
connecting bar. The pedal clamp should
be centered to the marked position (c) on
the connecting bar, allowing the pedal
beater to hit the center of the bass drum
head. Also, adjust the length of bass drum
legs so that the pedal chain is not in
contact with the bass drum head.

2. Floor Tom

<2-1> Insert the connecting pipes into
the 3 mounting brackets (d) on the bass
drum, and tighten the T-nuts to fix them in
place. Then, fixing the floor tom according
to pipe's memory locks, you can set up
the floor tom in standard height.
<2-2> To set up the floor tom, connect the 3
pipes from the bass drum to the floor tom pipe
brackets (e). You can position the floor tom
at a standard height according to the pipe's
memory locks, or position at your desired
height and then adjust the memory locks
accordingly.
*1 The kit in this photo is the Cocktail-JAM drum
kit. The Cocktail-JAM Mini only utilizes 2 pipe
brackets and connecting pipes, instead of 3.
Sie können ein PDF dieser Sicherheitsanweisung auf Deutsch unter http://www
Vous pouvez trouver un PDF de ce manuel d'instructions de sécurité en français sur le site http://www.tama.com.
È possibile trovare un PDF di questo Manuale di istruzioni per la sicurezza in italiano all'indirizzo http://www.tama.com.
Encontrará disponible este Manual de instrucciones de seguridad en formato PDF y en español en http://www.tama.com.
Można znaleźć PDF niniejszej instrukcji bezpieczeństwa w języku polskim na http://www.tama.com.
Pode encontrar um PDF deste Manual de Instruções de Segurança em português em http://www.tama.com.
Вы можете найти это руководство по технике безопасности в формате PDF на русском языке по адресу http://www.tama.com.
http://www.tama.com
点击此处查看 PDF 版的中文安全使用说明：
Sound Focus Pad
Bass Drum
Connecting Bar for Drum Pedal
Bass Drum Legs
Bass Drum Legs
(Player Side)
(Audience Side)
Leg Bracket
a
b
c
Connecting
Pipes(*1)
d e
3. Tom Tom & Snare Drum
<3-1> Set up the tom holder to your
preferred playing position on one of the 3
connecting pipes. Attach the clamp (f) to
one of the pipes, and tighten the T-nut to
secure it.
<3-2> Attach the bracket of tom-tom
or the snare drum to the rod of the tom
holder (g), and tighten the T-nut to secure
it. The ball on the tom holder (h) allows
you to adjust the position and angle of the
tom-tom or snare drum. Simply loosen
the T-nut, adjust to the desired position
and angle, and then retighten to secure it
in place.

Set-up Examples

You can also attach cymbals or various percussion instruments to the connecting
pipes. For a tighter and more isolated bass drum sound, place Sound Focus Pad on
top of the bass drum.

Storage

1. Drums

Store all 4 drums in one bag. First, put the
cushion (i) around the inside of the bass
drum, and nest the snare drum inside
of it. After storing them in the bag, put
Sound Focus Pad (j) on top of the two
drums. Then, put the cushion (k) around
the two drums. Then, put the cushion
(k) around the inside of the floor tom,
and nest the tom-tom inside of it. Finally,
put them on Sound Focus Pad (j), which
should be on top of the bass drum and
snare drum, and zip up the bag.

2. Hardware

Store the hardware (drum pedal, bass drum legs, connecting
bar for drum pedal, connecting pipes, and tom holders) in the
separate hardware bag. It is easiest and most compact to
pack the bass drum pedal first, and then add the rest of the
hardware.
This product contains DEHP or other phthalate chemicals known to the
state of California to cause birth defects and other reproductive harm.
These instructions were issued on May, 2017.
Specifications and improvements subject to change without notice.
Tom Holder
g
f
h
i
j
k
