Velleman K6710 Manual
Velleman K6710 Manual

Velleman K6710 Manual

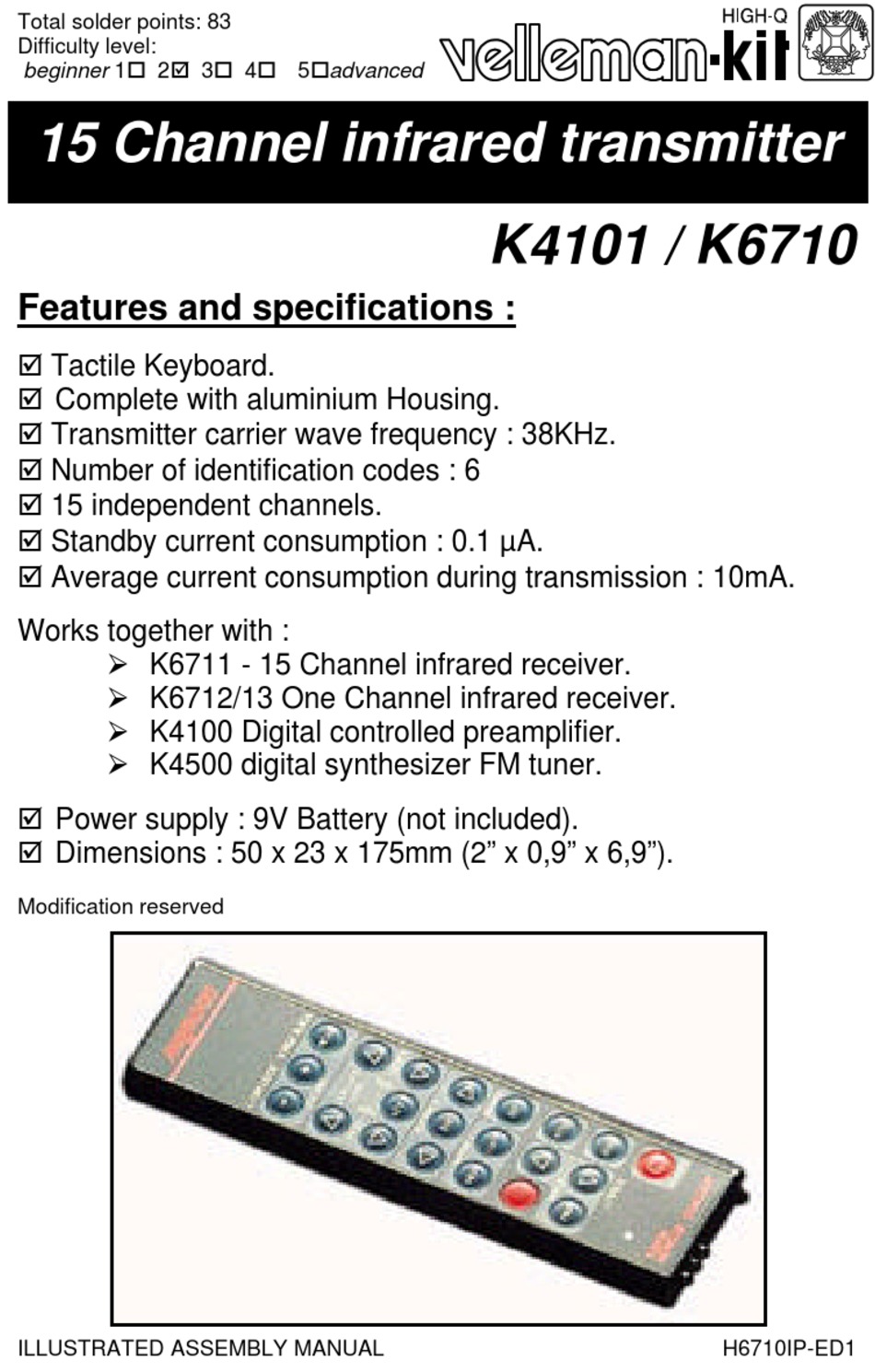

15 channel infrared transmitter

Advertisement

Quick Links

Total solder points: 83
Difficulty level:
beginner 1o 2þ 3o 4o 5oadvanced
15 Channel infrared transmitter

Features and specifications :

þ Tactile Keyboard.
þ Complete with aluminium Housing.
þ Transmitter carrier wave frequency : 38KHz.
þ Number of identification codes : 6
þ 15 independent channels.
þ Standby current consumption : 0.1 µA.
þ Average current consumption during transmission : 10mA.
Works together with :
Ø K6711 - 15 Channel infrared receiver.
Ø K6712/13 One Channel infrared receiver.
Ø K4100 Digital controlled preamplifier.
Ø K4500 digital synthesizer FM tuner.
þ Power supply : 9V Battery (not included).
þ Dimensions : 50 x 23 x 175mm (2" x 0,9" x 6,9").
Modification reserved
ILLUSTRATED ASSEMBLY MANUAL
K4101 / K6710
H6710IP-ED1

Advertisement

loading
Need help?

Need help?

Do you have a question about the K6710 and is the answer not in the manual?

Questions and answers

Summary of Contents for Velleman K6710

  • Page 1: Features And Specifications

    Total solder points: 83 Difficulty level: beginner 1o 2þ 3o 4o 5oadvanced 15 Channel infrared transmitter K4101 / K6710 Features and specifications : þ Tactile Keyboard. þ Complete with aluminium Housing. þ Transmitter carrier wave frequency : 38KHz. þ Number of identification codes : 6 þ...
  • Page 2 VELLEMAN Components NV Legen Heirweg 33 9890 Gavere Belgium http://www.velleman.be...
  • Page 3 Assembly hints 1. Assembly (Skipping this can lead to troubles ! ) Ok, so we have your attention. These hints will help you to make this project success- ful. Read them carefully. 1.1 Make sure you have the right tools: •...
  • Page 4 Assembly hints 1.3 Soldering Hints : Mount the component against the PCB surface and carefully solder the leads Make sure the solder joints are cone-shaped and shiny Trim excess leads as close as possible to the solder joint AXIAL COMPONENTS ARE TAPED IN THE CORRECT MOUNTING SEQUENCE ! REMOVE THEM FROM THE TAPE ONE AT A TIME !
  • Page 6 (or stations in the case of the tuner), in order to avoid unwanted overwriting. Not only its possi- bilities but also the aluminium housing and a special VELLEMAN tactile keyboard make this Build-it-yourself remote control unique.
  • Page 7 Construction 5. PCB cable connector Electrolytic Capacitors. (Watch the polarity !) C... q J1 q C3 : 10µF q C4 : 470µF 6. Transistors q C5 : 470µF 9. Resonator. T1: BC547 or eq. T2: BC640 or eq. q X1: 455KHz 7.
  • Page 8 Construction 10. Mounting the IR diodes. Watch the polarity ! Fit the IR diodes LD2 trough LD4 (see fig. 1.0) horizontally and in line with the pcb. Pay attention to the polarity. Pass the short- est lead trough the hole marked C all like LD4.
  • Page 9 Construction 11. Mounting the LED . Watch the polarity ! IMPORTANT Fit LED LD1 at the solder side, AGAINST the PCB (see fig. 2.0a) FIG 2.0a First carefully bend its leads at the component side, in such a way as to make the longest lead (anode) touch R5 and the shortest lead touch R3.
  • Page 10 Construction 12. Battery. Connect the connection wires of the battery holder to the + (red wire) and the - (black wire) of the pcb. (see fig 3.0) q Red q Black FIG 3.0 . IC. Watch the position of the notch ! IC1 : 3004 Insert IC1, 3004 type into his socket with his notch towards the pcb edge.
  • Page 11 Construction 14. Identification of the transmitter for the distinct receivers. For use with the Pre-amplifier and tuner (K4100/K4500) : q Fit a small signal diode for D3. For use with the universal remote control (K6711) : q Fit a small signal diode for D4. For use with the distinct one-channel receivers : q Fit one of the diodes D4 trough D7, see the directions for use of the one channel receiver (K6712).
  • Page 12 Mounting the housing 15. Mounting the housing 1. Sticking the Keyboard : q Remove the covers of the housing. q Stick the keyboard onto the housing, with the connection lip in the saving, so that the LED window corresponds with the hole in the aluminium. 2.
  • Page 13 Test and usage 16. Test and Usage q Connect a 9v battery to the holder and insert the bat- tery into the housing. Test the transmitter-receiver combination and check all the functions. Fit both cov- ers onto the housing. Functions : 1.
  • Page 14 PCB Layout 17. PCB Layout...
  • Page 15 Diagram 18. Diagram...
  • Page 16 VELLEMAN Components NV Legen Heirweg 33 9890 Gavere Belgium Europe Info ?: http://www.velleman.be Modifications and typographical errors reserved © Velleman Components nv. H6710IP - 2001 - ED1...

This manual is also suitable for:

K4101
