TP-Link TL-SM311LS Installation Manual

Installation Guide
TL-SM311 Series Mini GBIC Module
TL-SM311LS/TL-SM311LM

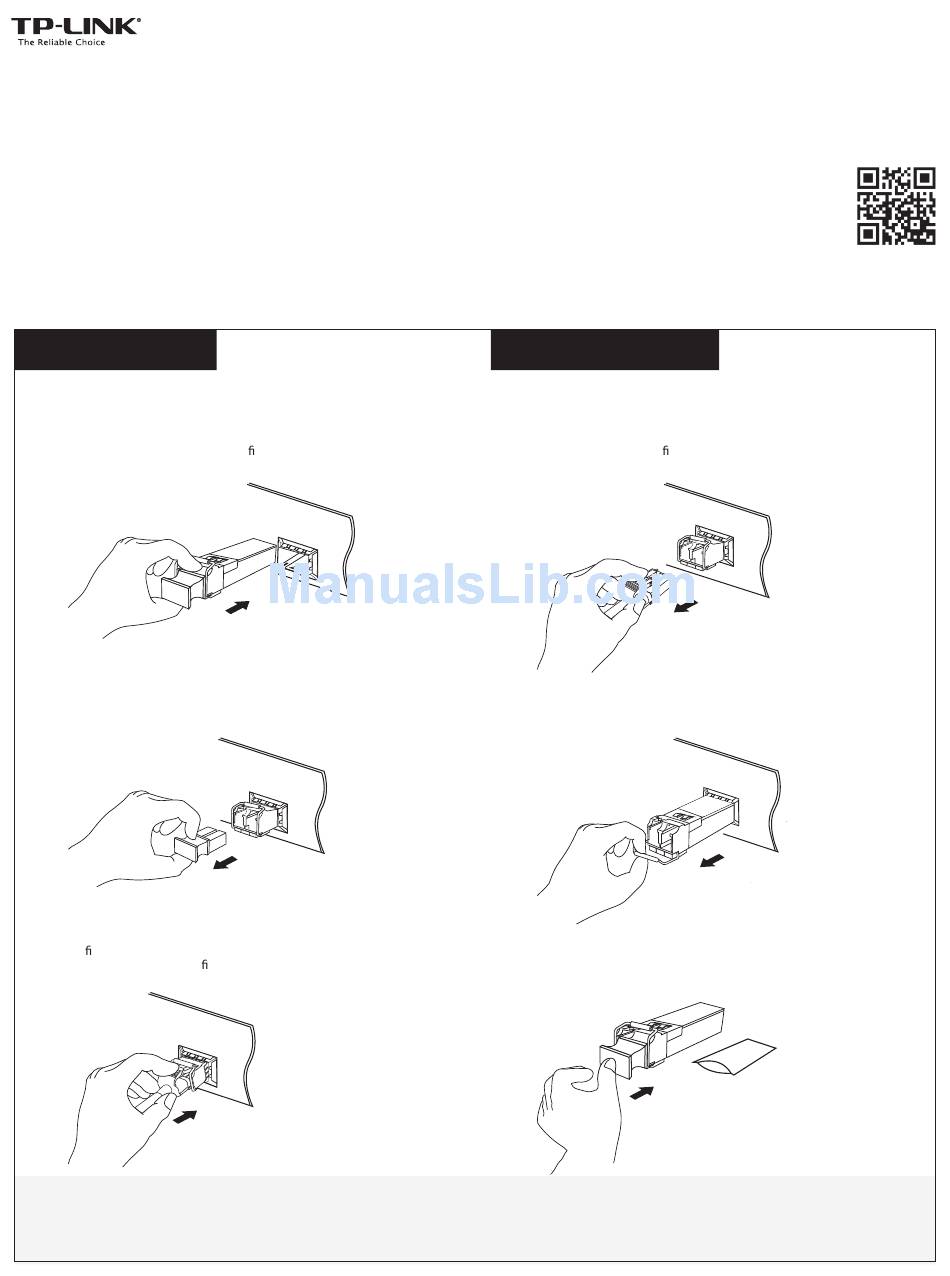

Install the SFP
1. Wear an ESD-preventive wrist or ankle strap to prevent ESD
damage to the transceiver.
2. Insert the SFP into the SFP slot and rmly press it into place.
3. Remove the protective dust plug from the SFP.
4. Plug a ber-optic cable into the SFP. Note that the SFP works
without any additional con guration.
Note:
1. Do not touch the output pins on the transceiver with your hand.
2. Always keep the protective dust plug on the SFP's optical bores until you are ready to make a connection.
Caution:
DO NOT point or stare directly into the beam or into the optical port of the transceiver when it is operating, as this can injure your eyesight.
For more information, please visit our website: http://www.tp-link.com
Remove the SFP
1. Wear an ESD-preventive wrist or ankle strap to prevent ESD
damage to the transceiver.
2. Disconnect the network ber-optic cable from the SFP.
3. Pull the safety latch downwards to release the SFP, and then pull it
out from the slot.
4. Reinstall the protective dust plug in the SFP's optical bores and place
it on antistatic mat or a static shielding bag.
7106506441 REV1.0.0
