Installation Guide

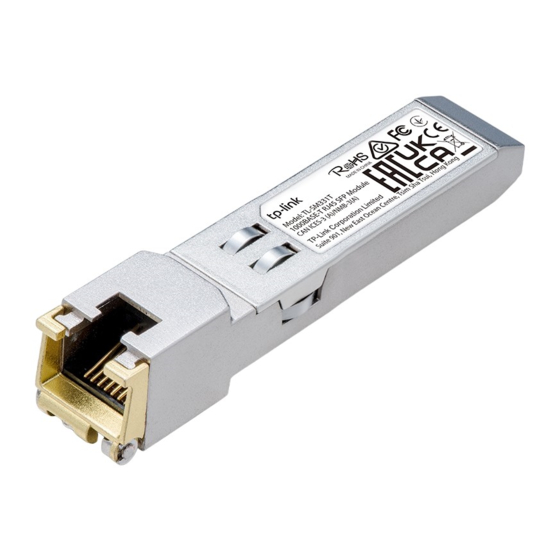

RJ45 SFP Module

Note: Images may differ from the actual products.

Install the RJ45 SFP Module

1. Lock the yellow latch into place and insert the module into an SFP slot with label side up.

2. Gently push the module into the slot until you hear a click. Then, insert the RJ45 network cable.

Remove the RJ45 SFP Module

1. Press the RJ45 crystal head and pull out the cable.

To ask questions, find answers, and communicate with TP-Link

users or engineers, please visit https://community.tp-link.com

to join TP-Link Community.

For technical support and other information, please visit

https://www.tp-link.com/support, or simply scan the QR code.

If you have any suggestions or needs on the product guides,

welcome to email techwriter@tp-link.com.cn.

Need help?

Do you have a question about the TL-SM331T and is the answer not in the manual?

Page 1 Installation Guide RJ45 SFP Module To ask questions, find answers, and communicate with TP-Link users or engineers, please visit https://community.tp-link.com to join TP-Link Community. For technical support and other information, please visit https://www.tp-link.com/support, or simply scan the QR code. If you have any suggestions or needs on the product guides, welcome to email techwriter@tp-link.com.cn.
Page 2 Hot Swappable Note: *TL-SM331T does not support the data rate of 10 Mbps or 100 Mbps. **When a gigabit RJ45 SFP module is inserted into a 10G SFP+ slot, extra configuration for port data rate may be required. Safety Information EU Declaration of Conformity Keep the device away from water, fire, humidity or hot environments.
Page 3 Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply Explanation of the symbols on the product label with the applicable technical standards, FCC part 15.
