TP-Link DS-PMA-Combo C+ Installation Manual

Installation Guide

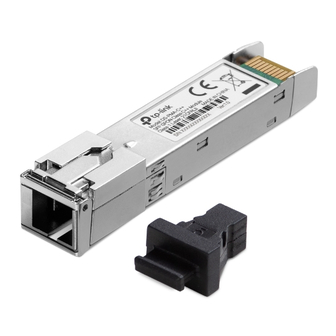

SFP XGSPON&GPON Combo Class C+ Module
SFP GPON Class C++ Module
SFP GPON Class C+ Module
* Images may differ from actual products.

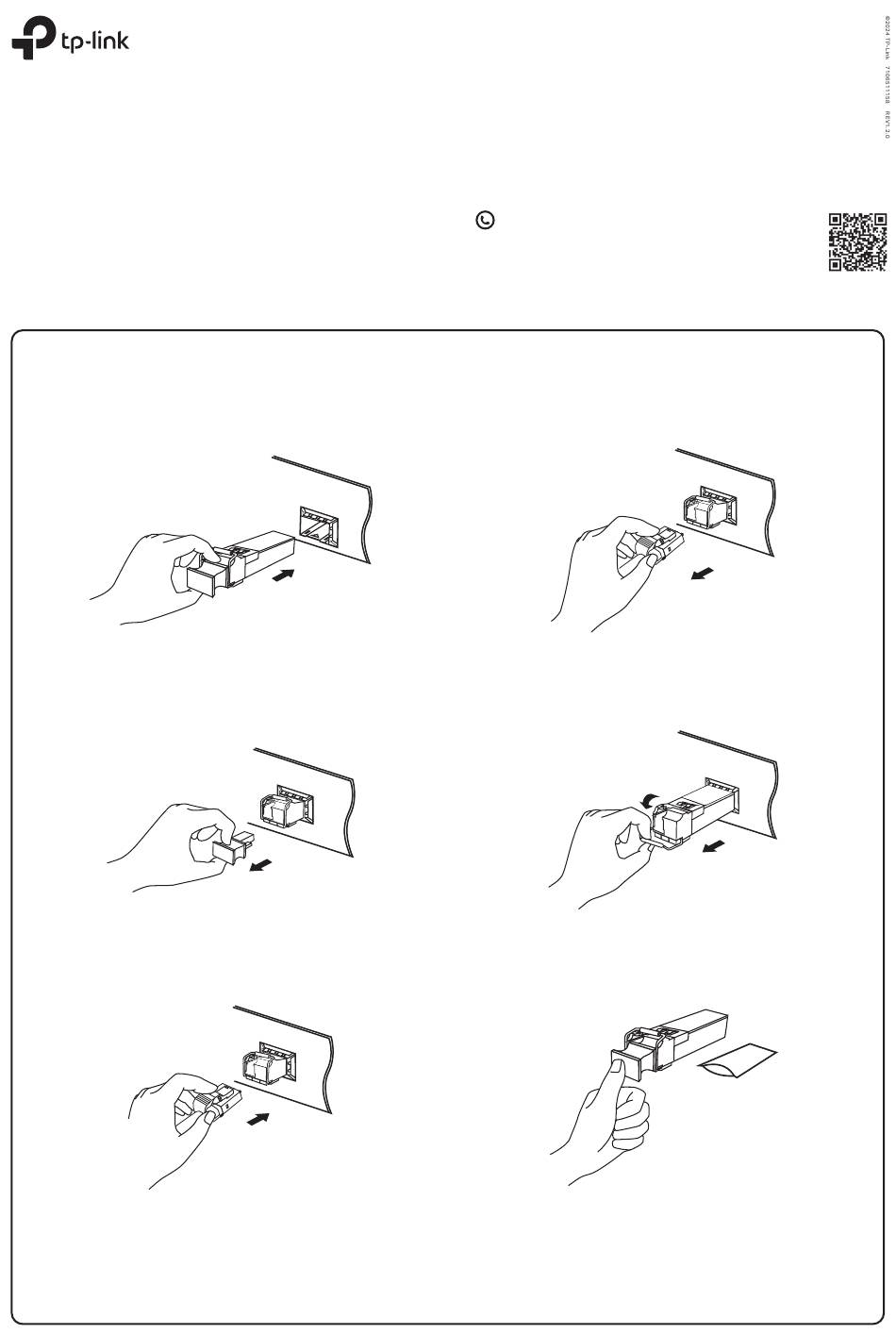

Install the Transceiver
1. Wear an ESD-preventive wrist or ankle strap to prevent ESD damage to
the transceiver.
2. Insert the transceiver into the slot and firmly press it into place.
3. Remove the protective dust plug from the transceiver.
4. Plug a fiber-optic cable into the transceiver. Note that the transceiver
works without any additional configuration.
Note:
1. Do not touch the output pins on the transceiver with your hand.
2. Always keep the protective dust plug on the transceiver's optical bores until you are ready to make a connection.
Caution:
DO NOT point or stare directly into the beam or into the optical port of the transceiver when it is operating, as this can injure your eyesight.
For technical support and other information, please visit
https://www.tp-link.com/support, or simply scan the QR code.
Remove the Transceiver
1. Wear an ESD-preventive wrist or ankle strap to prevent ESD damage to
the transceiver.
2. Disconnect the network fiber-optic cable from the transceiver.
3. Pull the safety latch downwards to release the transceiver, and then
pull it out from the slot.
4. Reinstall the protective dust plug in the transceiver's optical bores and
place it on antistatic mat or a static shielding bag.
