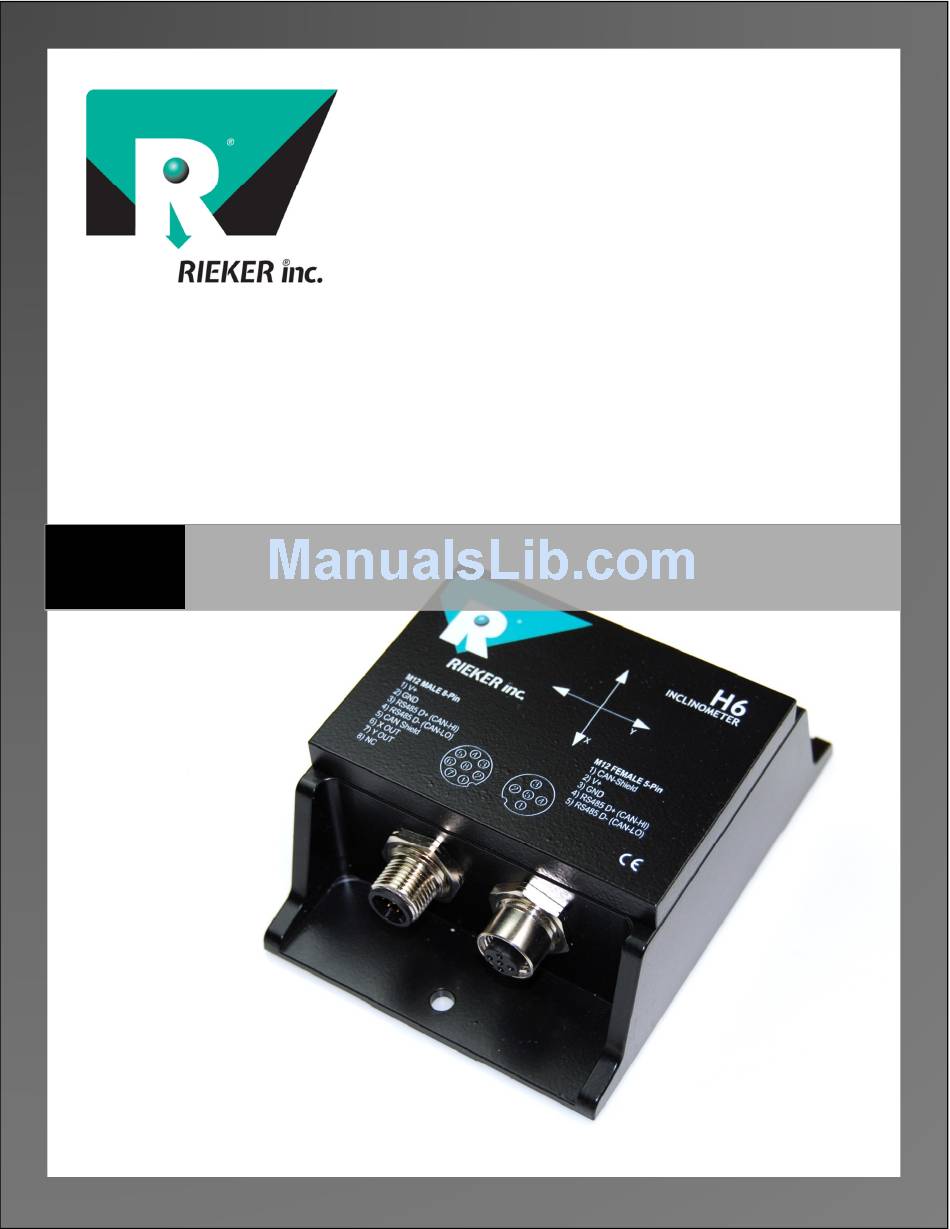

  • Page 1 User Programmable Digital RS485 Current 0..24mA Voltage 0..10V Open Collector Switch Dual & Single Axis Up to 360º Flex™ H6 User Guide 2018 Sensor Specifications, Installation, & Wiring...

  • Page 2: Table Of Contents

    Packet Format ..........................20 RS485 Command Functions......................21 Function Descriptions ........................22 Appendix A. Creating an H6 Development Cable .................. 29 RIEKER INC • 34 MOUNT PLEASANT ROAD • ASTON • PA • 19014 • USA 610-500-2000 fax: 610-500-2002 support@riekerinc.com...
  • Page 3 IGITAL UTPUT AISY HAIN ONNECTOR IRING 4: H6 C ..........................16 ABLE URRENT ENSE 4: F ............................21 ABLE UNCTION RIEKER INC • 34 MOUNT PLEASANT ROAD • ASTON • PA • 19014 • USA 610-500-2000 fax: 610-500-2002 support@riekerinc.com www.riekerinc.com...

  • Page 4: Sensor Description

    Each open collector switch can drive up to 250mA (to be used directly or to drive an external relay). Also as an optional enhancement, the H6 has to ability to log angle data to a microSD card. Updates & Revision History The information in this guide may be subject to change.

  • Page 5: Sensor Specifications

    1. Supply Current varies depending on outputs connected. Digital output only assumes analog output section is always active however current loop is not connected. 2. See Sensitivity & Zero Angle Calculation (Voltage and Current Outputs Only) RIEKER INC • 34 MOUNT PLEASANT ROAD • ASTON • PA • 19014 • USA 610-500-2000 fax: 610-500-2002 support@riekerinc.com...

  • Page 6: Sensor Specifications, Continued

    Flat Horizontal or Vertical Surface OUTLINE DIMENSIONS 4.34” x 3.26” x 1.8” [110mm x 82.8mm x 45.7mm] ELECTRICAL CONNECTION See Electrical Connection Drawing RIEKER INC • 34 MOUNT PLEASANT ROAD • ASTON • PA • 19014 • USA 610-500-2000 fax: 610-500-2002 support@riekerinc.com www.riekerinc.com...

  • Page 7: H6 Installation And Wiring

    NOTE that the single hole on side with the two slots is not meant to be used for mounting Mount inclinometer to mounting plane using #9 mounting screws. FIGURE 1: H6 Dimensions and Mounting (Inches [Mm]) RIEKER INC • 34 MOUNT PLEASANT ROAD • ASTON • PA • 19014 • USA 610-500-2000 fax: 610-500-2002 support@riekerinc.com www.riekerinc.com...
  • Page 8 Flex™ H6 User Guide Page 7 of 29 FIGURE 2: Mounting Positions RIEKER INC • 34 MOUNT PLEASANT ROAD • ASTON • PA • 19014 • USA 610-500-2000 fax: 610-500-2002 support@riekerinc.com www.riekerinc.com...

  • Page 9: Horizontal Mount Axis Orientations

    As shown in the top drawing of , the 0° orientation for a horizontal mount H6 is a desktop level position. For the X-axis, looking at the unit from the side with the connector facing to the right, a clockwise •...
  • Page 10 Flex™ H6 User Guide Page 9 of 29 , the 0° orientation for a vertical mount H6 is with the connector facing down. RIEKER INC • 34 MOUNT PLEASANT ROAD • ASTON • PA • 19014 • USA 610-500-2000 fax: 610-500-2002 support@riekerinc.com...
  • Page 11 FIGURE 2: Example of Serial Number and Factory Default Configuration Label NOTE: Located on the bottom of the h6 sensor, the label provides the factory configured defaults and serial number. RIEKER INC • 34 MOUNT PLEASANT ROAD • ASTON • PA • 19014 • USA...

  • Page 12: H6 Connector Wiring Tables

    RS-485 D+ RS-485 D- NOTE: The H6 Sensor’s Chassis Ground is NOT the same as the signal ground for the current output return. The current output return must be connected to the POWER/SIGNAL COMMON (pin 2). RIEKER INC • 34 MOUNT PLEASANT ROAD • ASTON • PA • 19014 • USA...

  • Page 13: H6 Rs485 Bus Wiring Configurations

    H6 RS485 Bus Wiring Configurations When using the digital output, the H6 sensor can be connected as a single sensor or can be connected to other sensors in a bus configuration. The following figures show three possible configurations for using the H6 sensor with the digital output.

  • Page 14: Figure 6: Max Number O F Daisyc

    NOTE: This graph is based on 22AWG wire as the daisy-chain between sensors. Also note that by using a multi- drop configuration, additional sensors may be added, up to a maximum of 60 units due to bus loading. RIEKER INC • 34 MOUNT PLEASANT ROAD • ASTON • PA • 19014 • USA 610-500-2000 fax: 610-500-2002 support@riekerinc.com...

  • Page 15: Analog Outputs

    Page 14 of 29 Analog Outputs The H6 sensor comes with two, continuous, fully configurable, analog outputs. The analog outputs are directly related to the input angle and will match the angle for any configured range. The factory default output parameters for each analog output can be separately reconfigured at time of order, and/or can be fully reconfigured by the end user when using the Dev Kit and Flexware™...

  • Page 16: Sensitivity & Zero Angle Calculation (Voltage And Current Outputs Only)

    ° ° ° ° Zero Degree Angle Output = 0 + 0° − −30° ∗ 0.100 ° = 3.0  RIEKER INC • 34 MOUNT PLEASANT ROAD • ASTON • PA • 19014 • USA 610-500-2000 fax: 610-500-2002 support@riekerinc.com www.riekerinc.com...

  • Page 17: Wiring Diagrams And Connection Procedures

    SENSE RESISTOR sense resistance. Ensure the following equation is met: − 2.5 200-350 OHMS ≤ − 0.020 200-1000 OHMS 200-1000 OHMS RIEKER INC • 34 MOUNT PLEASANT ROAD • ASTON • PA • 19014 • USA 610-500-2000 fax: 610-500-2002 support@riekerinc.com www.riekerinc.com...

  • Page 18: Figure 7: Current Wiring Diagrams

    OUTPUT 2 Multimeter, PIN 2 PLC, etc. LOAD RESISTOR Digital Multimeter, PLC, etc. - H6 Current Conversion to Voltage Output Measurement RIEKER INC • 34 MOUNT PLEASANT ROAD • ASTON • PA • 19014 • USA 610-500-2000 fax: 610-500-2002 support@riekerinc.com www.riekerinc.com...

  • Page 19: Wiring For A Voltage Output

    PIN 6 OUTPUT 1 Dual Axis Digital PIN 7 OUTPUT 2 Multimeter, PIN 2 PLC, etc. Digital Multimeter, PLC, etc. RIEKER INC • 34 MOUNT PLEASANT ROAD • ASTON • PA • 19014 • USA 610-500-2000 fax: 610-500-2002 support@riekerinc.com www.riekerinc.com...

  • Page 20: Wiring For A Switch Output

    PIN 6 OUTPUT 1 Dual Axis PIN 7 OUTPUT 2 Relay PIN 2 Relay - H6 Switch Output Relay Driver RIEKER INC • 34 MOUNT PLEASANT ROAD • ASTON • PA • 19014 • USA 610-500-2000 fax: 610-500-2002 support@riekerinc.com www.riekerinc.com...

  • Page 21: Digital Rs485 Communications

    Page 20 of 29 Digital RS485 Communications The H6 inclinometer communicates over a RS485 half-duplex communication bus using a Rieker-specific packet format which is described in this section. This communication can be used to read inclination angles from the device, as well as configure the various device settings.

  • Page 22: Rs485 Command Functions

    Change Lock command is sent or the sensor is reset or unplugged. RS485 Command Functions Table 5 shows a list of all the user functions for the H6 inclinometer, including the function ID, name, description of the function, and the lock level required to use that function.

  • Page 23: Function Descriptions

    Set address of sensor at address 101 (0x0065) to 223 (0x00DF) Received Command: 0000 0065 0000 CC1E [DEST] [SRC] [FUNCT] [DL] [DATA] [CRC] RIEKER INC • 34 MOUNT PLEASANT ROAD • ASTON • PA • 19014 • USA 610-500-2000 fax: 610-500-2002 support@riekerinc.com www.riekerinc.com...
  • Page 24 [DEST] [SRC] [FUNCT] [DL] [DATA] [CRC] Check for sensor at address 223 (0x00DF). Received Command: 0000 00DF 0000 D43B [DEST] [SRC] [FUNCT] [DL] [DATA] [CRC] RIEKER INC • 34 MOUNT PLEASANT ROAD • ASTON • PA • 19014 • USA 610-500-2000 fax: 610-500-2002 support@riekerinc.com www.riekerinc.com...
  • Page 25 [DEST] [SRC] [FUNCT] [DL] [DATA] [CRC] Change lock level to 1 Received Command: 0000 0065 0000 CC1E [DEST] [SRC] [FUNCT] [DL] [DATA] [CRC] RIEKER INC • 34 MOUNT PLEASANT ROAD • ASTON • PA • 19014 • USA 610-500-2000 fax: 610-500-2002 support@riekerinc.com www.riekerinc.com...
  • Page 26 Set the X-axis zero of sensor 101 to 0°. Received Command: 0000 0065 0000 CC1E [DEST] [SRC] [FUNCT] [DL] [DATA] [CRC] RIEKER INC • 34 MOUNT PLEASANT ROAD • ASTON • PA • 19014 • USA 610-500-2000 fax: 610-500-2002 support@riekerinc.com www.riekerinc.com...
  • Page 27 Received Command: 0000 0065 001C 52657620412E38 CC1E [DEST] [SRC] [FUNCT] [DL] [DATA] [CRC] Sensor 101’s firmware revision is “Rev A.8” RIEKER INC • 34 MOUNT PLEASANT ROAD • ASTON • PA • 19014 • USA 610-500-2000 fax: 610-500-2002 support@riekerinc.com www.riekerinc.com...
  • Page 28 0065 0025 3936 3232 3835 2020 2020 DF6D [DEST] [SRC] [FUNCT] [DL] [DATA] [CRC] Sensor 101’s serial number is “962285”. RIEKER INC • 34 MOUNT PLEASANT ROAD • ASTON • PA • 19014 • USA 610-500-2000 fax: 610-500-2002 support@riekerinc.com www.riekerinc.com...
  • Page 29 Set the filter response of sensor 101 to 2. Received Command: 0000 0065 0000 CC1E [DEST] [SRC] [FUNCT] [DL] [DATA] [CRC] RIEKER INC • 34 MOUNT PLEASANT ROAD • ASTON • PA • 19014 • USA 610-500-2000 fax: 610-500-2002 support@riekerinc.com www.riekerinc.com...

  • Page 30: Appendix A. Creating An H6 Development Cable

    Connect the power (pin 1) to 11-36VDC supply voltage and the ground (pin 2) to the power supply ground. Apply power. RIEKER INC • 34 MOUNT PLEASANT ROAD • ASTON • PA • 19014 • USA 610-500-2000 fax: 610-500-2002 support@riekerinc.com...
