Summary of Contents for Westinghouse WPX2600

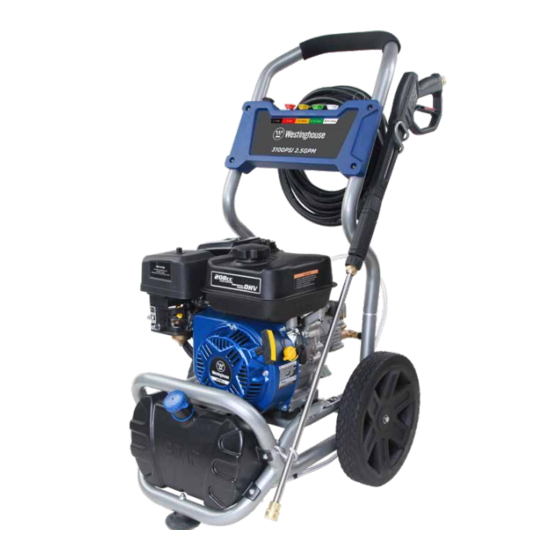

- Page 1 USER MANUAL For Gas Pressure Washer Models: WPX2600, WPX2800, WPX3100 2600PSI / 2GPM 2800PSI / 2.3GPM 3100PSI / 2.5GPM...
-
Page 2: Save These Instructions
Spark Plug Gap (in/mm) 0.030/0.76 mm Fuel Capacity (L) Recommended Oil 10W30 Oil Capacity (oz/L) 14/0.4 20/0.6 20/0.6 On/Off Switch HAVE QUESTIONS? DO NOT RETURN THIS PRODUCT TO THE STORE Email us at service@wpowereq.com or call 1-855-944-3571 2 | Westinghouse Outdoor Power Equipment... -
Page 3: Product Registration
IMPORTANT: KEEP YOUR PURCHASE RECEIPT TO ENSURE TROUBLE-FREE WARRANTY COVERAGE. PRODUCT REGISTRATION To ensure trouble-free warranty coverage, it is important you register your Westinghouse pressure washer. You can register your pressure washer by either: 1. Filling in the product registration form below and mailing to:... -
Page 4: Table Of Contents
Nozzle Assembly ......10 WPX2600 Engine View ..... . . 26 Hose Assembly . -
Page 5: Safety
NOTE: Indicates a procedure, practice or condition that should be followed in order for the pressure washer to function in the manner Pinch-Point Hazard intended. Read Manufacturer’s Instructions Read Safety Messages Before Proceeding Wear Personal Protective Equipment (PPE) Westinghouse Outdoor Power Equipment | 5... -
Page 6: General Safety Rules
• Check for fuel leaks after refueling. • NEVER attach or remove spray gun, • Never operate the engine if a fuel nozzles or hoses while system is pressurized. leak is discovered. 6 | Westinghouse Outdoor Power Equipment... - Page 7 ALWAYS remove any tools or other service equipment used during maintenance from the pressure washer before operating. Westinghouse Outdoor Power Equipment | 7...
-
Page 8: Fuel Safety
High Pressure Outlet: Connection for high pressure the engine. hose. Chemical/Soap Tube Connections: Connect Water Inlet: Connection for garden hose. chemical/soap clear tube to tank and pump. Nozzle Cleaning Tool: Used to clean nozzles. WPX3100 Shown 8 | Westinghouse Outdoor Power Equipment WPX3100 Pump WPX2600/2800 Pump... -
Page 9: Wheel Assembly
The eye of the bolt should be Verify the contents against the list below. If any parts facing toward the inside of the pressure. are missing, please locate an authorized Westinghouse dealer at www.wpowereq.com or call 1-855-944-3571. High-Pressure Hose (1) -
Page 10: Assembly
1. Select desired nozzle for application. Lock spray gun. 2. Pull back collar at the end of the spray lance and insert the nozzle. Tug on the nozzle to make sure it is securely in place. 10 | Westinghouse Outdoor Power Equipment... -
Page 11: Operation
3. Add recommended fuel to fuel tank. 4. Check for properly tightened hose connections. 5. Check to make sure there are no kinks, cuts or damage to high-pressure hose. 6. Provide a proper water supply at an adequate flow. Westinghouse Outdoor Power Equipment | 11... -
Page 12: Adding Gasoline To The Fuel Tank
6. Squeeze the trigger on the gun and allow any air to bleed out of the hoses and the pump before starting the engine. 7. Confirm the soap hose is connected if using soap. 12 | Westinghouse Outdoor Power Equipment... -
Page 13: Starting The Pressure Washer
5. Point the thermo valve away from the work area you are washing to avoid being sprayed with warm water. 6. Move the engine ON/OFF switch to the ON position. WPX2600/2800 WPX3100 Westinghouse Outdoor Power Equipment | 13 Switch Switch... -
Page 14: Stopping The Pressure Washer
Using any other nozzles can affect performance and may void the warranty. For replacement nozzles call (855) 944-3571. WARNING Always apply the trigger lock to change a nozzle if the engine is running. 14 | Westinghouse Outdoor Power Equipment... -
Page 15: Spraying Tips
Do not allow the soap to dry on the surface before rinsing. Reapply soap if necessary to maintain a wet surface for the soap to soak in. NOTICE Clean the soap siphon hose once done. Westinghouse Outdoor Power Equipment | 15... -
Page 16: Rinsing
Gasoline fuel and fuel periodic maintenance. The intervals listed in the vapors are extremely flammable and can maintenance schedule should be treated only as a ignite under certain conditions. general guideline. 16 | Westinghouse Outdoor Power Equipment... -
Page 17: Engine Oil Maintenance
Spark Arrestor Inspect Clean Water Inlet Screen Inspect Replace *Service more frequently if operating in dry and dusty conditions TABLE 2: MAINTENANCE SCHEDULE - AUTHORIZED WESTINGHOUSE SERVICE DEALER PERFORMED Maintenance Before Every After First 5 After 25 Hours After 50 Hours... -
Page 18: Adding Engine Oil
ADDING ENGINE OIL AIR FILTER MAINTENANCE NOTICE WARNING Oil crankcase capacity is 0.4L on WPX2600 and 0.6L Never use gasoline or other flammable for WPX2800/3100. Do not overfill. solvents to clean air filter. Use only household detergent soap to clean the air 1. -
Page 19: Spark Plug Maintenance
If it is damaged, replace it. 5. Reinsert the water filter screen into the water inlet hose fitting. The cone side must face out. Westinghouse Outdoor Power Equipment | 19... -
Page 20: After Each Use
7. Remove the 3ft (1m) garden hose. 8. Reconnect the spark plug wire. 9. Store the pressure washer in a clean, dry place. 20 | Westinghouse Outdoor Power Equipment... -
Page 21: Remove & Install The Pump
6. Slide the pump onto the crankshaft making sure the key lines with the keyway in the pump. 7. Install the pump/engine mounting bolts and tighten to 25 ft-lb (34 N.m). 5. Reinstall muffler assembly. Westinghouse Outdoor Power Equipment | 21... -
Page 22: Troubleshooting
Soap siphon hose is not connected properly. Insert the soap siphon hose properly into the soap Soap does not mix with container. water spray. Soap siphon hose is obstructed. Clear obstructions in the soap siphon hose. 22 | Westinghouse Outdoor Power Equipment... - Page 23 This page was intentionally left blank Westinghouse Outdoor Power Equipment | 23...
-
Page 24: Pressure Washer Parts
WPX2600 EXPLODED VIEW 24 | Westinghouse Outdoor Power Equipment... - Page 25 WPX2600 EXPLODED PART NUMBERS PART. DESCRIPTION PART. DESCRIPTION 300000 ENGINE ASSY PLASTIC RIVETS 300001 FLAT KEY 4.78 X 5 X 35 300017 HOOK,GUN LOCK NUT M8 300018 PANEL BOLT M8X45 300019 NOZZLE HOLDER 300003 WATER PUMP ASSEMBLY 300270 SPRAY GUN...
-
Page 26: Wpx2600 Engine View
SPRING, VALVE PLATE, GOVERNOR 300040 RETURNER, INTAKE VALVE 300047 ROD, PUSH 300041 VALVE, INTAKE 300048 LIFTER, VALVE 300042 VALVE EXHAUST 300049 CAMSHAFT ASSY SPARK PULG 300050 SCRAPER RING SET, PISTON 300043 COVER, RECOIL 300051 PISTON 26 | Westinghouse Outdoor Power Equipment... - Page 27 300116 FLAMEOUT WIRE TUBE, BREATHER CLIP, FUEL LINE 300083 CRANKSHAFT ASSY 300084 ROCKER ARM NUT Parts with no number are not stocked by the manufcturer. Please call our service team if you have questions. Westinghouse Outdoor Power Equipment | 27...
-
Page 28: Wpx2800 Exploded View
WPX2800 EXPLODED VIEW 28 | Westinghouse Outdoor Power Equipment... - Page 29 SHEATH, NOZZLE CLEANER 300009 WHEEL SPARK PLUG SLEEVE. 300128 WHEEL LOCK OIL BOTTLE BOLT M6*35 RUBBER SLEEVE Parts with no number are not stocked by the manufcturer. Please call our service team if you have questions. Westinghouse Outdoor Power Equipment | 29...
-
Page 30: Wpx2800 Engine View
TOP OIL SEAL 300148 GOVERNOR ASSEMBLY 300143 BOTTOM OIL SEAL BOLT M6X12 300144 PISTON 300149 CYLINDER HEAD 300145 SCRAPER RING SET, PISTON 300150 VALVE, IN 300146 ROD ASSEMBLY., CONNECTING 300151 VALVE EXHAUST PIN, PISTON 30 | Westinghouse Outdoor Power Equipment... - Page 31 WIND DEFLECTOR C 300175 HEADCOVER GASKET WIND DEFLECTOR 180526 SPARK PULG 300200 FLAMEOUT WIRE SHROUD 300201 OFF LINE BOLT STUD, RECOIL STARTER 300202 IN THE HOOD 300178 DIPSTICK 300203 RECOIL STARTER 300095 SWITCH ASSEMBLY Westinghouse Outdoor Power Equipment | 31...
-
Page 32: Wpx3100 Exploded View
WPX3100 EXPLODED VIEW 32 | Westinghouse Outdoor Power Equipment... - Page 33 ENGINE MOUNT, VIBRATION 300032 SHEATH, NOZZLE CLEANER ISOLATOR 300033 SPARK PLUG SLEEVE NUT M8 FUNNEL 300012 DETENT SPRING 300023 OIL BOTTLE 300132 HANDLE, FRAME RUBBER SLEEVE 300131 UPPER GUN HOOK 300133 FOAM GRIP 300207 PANEL Westinghouse Outdoor Power Equipment | 33...
-
Page 34: Wpx3100 Engine View
WPX3100 ENGINE VIEW PART. DESCRIPTION 300212 CRANKCASE 180556 BALL BEARING 180541 OIL SEAL 300213 GOVERNOR ASSEMBLY SHAFT, GOVERNOR ARM WASHER, GOVERNOR ARM SHAFT PIN, LOCK BOLT DRAIN PLUG WASHER, DRAIN PLUG DOWEL PIN, CASECOVER 300216 PISTON 34 | Westinghouse Outdoor Power Equipment... - Page 35 180547 GASKET, CYLINDER HEAD 300246 CONNECTING PIPE BOLT CLIP, WIRE HARNESS 180526 SPARK PULG 180872 ROCKER ARM 300171 ROD, PUSH 300247 BUMPER, BREATHER PIPE SHROUD BOLT M6X12 180555 PACKING, HEADCOVER COVER COMP, CYLINDER HEAD Westinghouse Outdoor Power Equipment | 35...
- Page 36 Version 5.7.18KD 36 | Westinghouse Outdoor Power Equipment...
