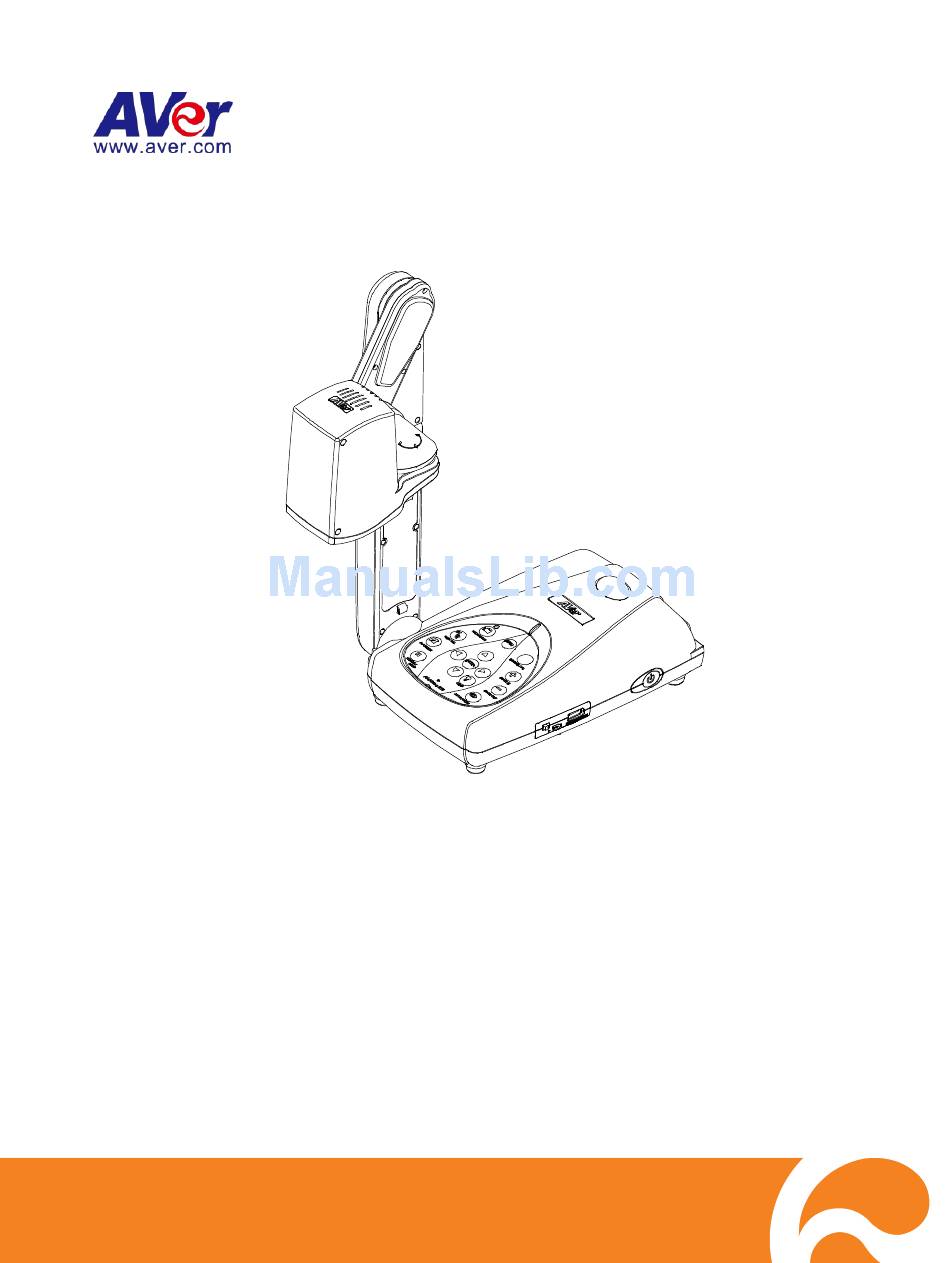

  • Page 1 AVerVision M70HD User Manual...
  • Page 2 Fe de r a l Com m unic a tio ns Com m is s ion Sta te m e nt (Cla s s A) NOTE- This equipment has been tested and found to comply w ith the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
  • Page 3 Remote Control Ba tte r y Sa fe ty Infor m a tion Stor e batteries in any cool & dr y place. Do not dispos e us ed batter ies in domes tic w aste. Dis pose batter ies at s pec ial c ollec tion points or r etur n to s tores if applies.

  • Page 4: Table Of Contents

    Connect to a Microscope ....................13 Setting Up AVerVision M70HD ..............14 Camera Head ........................14 Mechanical Arm ........................15 Infrared Sensor........................15 Mounting the M70HD on a Flat Surface ................16 Anti-glare Sheet........................16 External Memory Storage ....................17 d ......................17 e ....................17 OSD MENU ....................18 Navigate the Menu and Submenu..................19...
  • Page 5 Focus...........................21 Presentation ..........................22 Spotlight ..........................22 Visor.............................22 PIP ............................23 Split Screen ........................23 Timer............................24 Saturation ...........................24 Setting ............................24 Capture ..........................24 Resolution...........................24 Quality ..........................25 Type .............................25 Interval..........................25 Recording ...........................25 Storage ..........................25 Format ..........................26 USB to PC ..........................26 Flicker ..........................26 System ...........................27 Language ..........................27 Output Display ........................27 Backup ..........................27 Save Setting ........................27...
  • Page 6 RS-232 Transmi ssion Specifications............34 RS-232 Communication Format ..................34 RS-232 Send Command Table ..................34 RS-232 Get Command Table .....................39 Trouble shooting ..................40 Limited Warranty ..................42 Limitations of Warranty ................42 Di sclaimer of Warranty................42 Limitation of Liability .................. 43 Governing Law and Your Rights..............

  • Page 7: Package Contents

    USB Cable Remote Control (batteries included) Pow er Adapter (12V, 2A) * The pow er adapter w ill vary AVerVision M70HD depending on the standard pow er outlet of the country w here it is sold. Softw are & Manual CD...

  • Page 8: Get Familiar With The Avervision M70Hd

    Function (1) USB PC - USB Flash Sw itch to right (►) for audio video recording directly to a USB flash drive and left (◄) w hen connecting AVerVision Drive sw itch M70HD to a computer using a USB cable.

  • Page 9: Rear Panel

    RGB OUT port only. Connect this port to the RGB/VGA output port of a computer. (4) RGB OUTPUT port Connect the AVerVision M70HD to any display device w ith RGB cable Le ft P a ne l (fig.

  • Page 10: Control Panel

    Control P a ne l (10) (11) (12) (13) (fig. 1.5) Nam e Function (1) MENU Open and exit the OSD menu. (2) RECORDING Start/Stop audio & video recording. Audio and video recording can be saved on a SD card or an USB Flash drive only. See H H U E xternal Memory StorageU H H .

  • Page 11: Remote Control

    Re m ote Control The remote control requires two (2) “AAA” size batteries (supplied), make sure batteries are installed properly before use. You can access all the features of AVerVision M70HD with the remote. Name Function (1) POWER Turn the unit on/standby.
  • Page 12 (12) PLAYBACK View the captured picture/video from the memory in 16-thumbnail images. (13) PC 1/2 PC mode displays the video signal from the RGB INPUT port of M70HD. (14) FREEZE / - Freeze live images. STOP - Stop video playback.
  • Page 13 Name Function Color – select the Spotlight frame color. (15) SPOTLIGHT (12 ) Press to move to the next selection. (13 ) OK – press for the setting to take (14 ) (15 ) effect. If you select ON, the frame w ill (16 ) appear and blink, use the ▲,▼,◄, &...

  • Page 14: Making The Connections

    AVerVision M70HD with. The TV-RGB switch determines the display output selection. Switch it to RGB (right) to output signal using RGB/HDMI connection and TV (left) to output signal using RCA connection.

  • Page 15: Connect To A Monitor Or Lcd/Dlp Projector With Hdmi Output Interface

    - Make sure the TV/RGB switch is set to RGB. - To display computer image, press Camera/PC button on the control panel or remote control to switch AVerVision M70HD to computer mode. - For laptop to output display image, use the keyboard command (FN+F5) to switch between the dis play modes.

  • Page 16: Connect To A Tv

    Locate the VIDEO or SCART RGB (if applicable) input port of the TV or Video equipment (i.e., VCR) to record your presentation and connect it to RCA jack of RS-232/CVBS cable (optional). Connect the power adapter to a standard 100V~240V AC power outlet. The unit automatically in standby mode once the power is connected.

  • Page 17: Connect To A Computer

    Locate the RGB (VGA) output port of the computer or laptop and connect it to RGB INPUT port of AVerVision M70HD. The video signal from the RGB INPUT port is streamed to RGB OUTPUT port. - To display computer image, press Camera/PC button on the control panel or remote control to switch AVerVision M70HD to computer mode.

  • Page 18: Connect An External Microphone

    Plug a 3.5mm mono microphone to port. The built-in microphone on the control panel will be disabled when an external microphone is connected. The recorded audio will be in monophonic sound. Plug a 3.5mm plug amplified speaker to port. Only the audio from the video playback is supported.

  • Page 19: Connect To A Microscope

    Connect the AVerVision M70HD to a microscope enables you to examine microscopic objects on a big screen. Change the image display mode to Microscope. Press MENU > select IMAGE tab > select MODE > select (microscope) and press Aim the camera head at the farthest point and press AUTO FOCUS.

  • Page 20: Setting Up Avervision M70Hd

    This section provides useful tips on how to adjust the AVerVision M70HD to meet your needs. The camera head can turn freely at 90° to the left and right and up and down. 90° 90° 90° 90° If the camera head is in upright position, you can also press ROTATE on the remote...

  • Page 21: Mechanical Arm

    The mechanical arm design can extend for a full A4 paper viewing. Aim the remote control at the infrared sensor to operate the unit.

  • Page 22: Mounting The M70Hd On A Flat Surface

    Use 4 pieces of M4.0 screws for 6 mm holes and secure the M70HD on the flat surface. The anti-glare sheet is a special coated film that helps eliminate any glare that maybe encountered while displaying very shiny objects or glossy surfaces such as magazines and pictures.

  • Page 23: External Memory Storage

    AVerVision M70HD supports both SD memory card and USB flash drive for more image capture and audio & video recordings . AVerVision M70HD can detect when there is an external storage media and automatically switch to the last detected storage.

  • Page 24: Osd Menu

    There are 4 tabs on the OSD menu: IMAGE , PRESENTATION, SETTING and SYSTEM. In Playback mode, you can access PLAYBACK OSD menu to enable the Slide Show feature and modify Slide Show interval and transition setting if desire. For TV output, the RESOLUTION will be disabled in SETTING menu list. IMAGE PRESENTATION SETTING...

  • Page 25: Navigate The Menu And Submenu

    1. Press MENU button on the remote or control panel. 2. Press ► and ◄ to toggle between tabs 3. Press ▼ and ▲ to choose a selection in the menu list. 4. Press to make a selection. 5. Use ► and ◄ to adjust the setting or make a selection.

  • Page 26: Mode

    Menu Screen Function Mode Select from the various image display settings. Sharp - adjust the contrast along the edges making text appear more visible. Graphics - adjust the gradient of image. Motion - increase frame rate. Sufficient lighting is required when using this mode. Microscope - automatically adjust optical zoom for microscopic viewing.

  • Page 27: Auto Image

    Menu Screen Function Auto Image Select ON or OFF to automatically adjust the white balance and exposure setting, and correct the color and exposure compensation. Exposure Select the exposure setting. AUTO - automatically adjust the camera exposure and the amount of light required. MANUAL - manually adjust the exposure level.

  • Page 28: Presentation

    Menu Screen Function Spotlight Spotlight overlays a frame on the presentation screen. You can move the Spotlight around the presentation screen using the ▲, ▼, ◄, & ► buttons. Select Execute to call the Spotlight submenu. In the Spotlight submenu, the following options are available.

  • Page 29: Pip

    Divide the screen into two parts. Half of the screen displays the 8-thumbnail images and the other half display the image from the AVerVision M70HD camera. Select the display location of the 8- thumbnail playback images. Select OFF to cancel Split Screen.

  • Page 30: Timer

    Menu Screen Function Timer Start/Pause/Stop the timer and set the timer duration. The timer automatically counts up after the count down reaches zero to show the elapsed time. Even when you switch between Playback, PC or Camera modes, the timer will continue. Saturation Adjust value of saturation.

  • Page 31: Quality

    Menu Screen Function Quality Select the capture compression setting. Type Select the capture type. Single - capture one picture only. Continuous - capture successive pictures. Interval Set the time interval for continuous capture. The length can be set up to 600 sec (10 min). Recording Select the video recording compression setting.

  • Page 32: Format

    Format to delete all the data in the selected memory. USB to PC Select the status of the AVerVision M70HD when it is connected to the computer via USB. Make sure the USB switch on the left panel is set to...

  • Page 33: System

    Menu Screen Function Language Change and select different language. Output Display Set the resolution to display the image on screen. This selection will be disabled in TV output mode. Backup Copy the image from the built-in memory to SD card or USB flash drive.

  • Page 34: Information

    Menu Screen Function Information Display the product information. Default Restore all the settings into original factory default setting. Menu Screen Function Slide Show Display all captured still pictures in an automated slide show. The video file will be skipped. Interval Set the interval before displaying the next picture.

  • Page 35: Slide Show Effect

    USB mouse connected to the USB port of AVerVision M70HD. It comes with the following selections: Color Palette, Line Thickness, Line, Freehand, Capture, Eraser, and Hide/Show icons.

  • Page 36: Connecting A Usb Mouse

    LED on the control panel will light up. 2. Connect the USB mouse cable to the USB slot of AVerVision M70HD. Using the Annotation Control Panel The annotation control panel appears on the upper left corner of the screen. A cursor will appear on the screen.

  • Page 37: Transfer Captured Images/Videos To A Computer

    USB cable. 1. Make sure to set the USB switch to for the computer to detect AVerVision M70HD. 2. MUST set the USB to PC as STORAGE before connecting the USB cable. 3. When “Mass Storage Start…” appears at the lower right corner of the presentation screen, you may now connect the USB cable.

  • Page 38: Technical Specifications

    Image 1/3.2” CMOS Sensor Pixel Count Frame Rate 30 fps (max.) White Balance Auto / Manual Exposure Auto / Manual Image mode Sharp / Graphics / Motion / Microscope / Macro / Infinite Effect Color / B/W / Negative / Mirror / Rotate / Freeze 1920x1080, 1600x1200, 1280x1024, 1280x800, 1280x720, RGB output 1024x768...

  • Page 39: Dimension

    External Storage Secure Digital (SD) Max 32GB (FAT) USB Flash Drive Max 32GB (FAT) AVerVision M70HD can be controlled using a computer or any centralized control panel through RS-232 connection. Make sure the RS-232 cable matches the cable specification design.

  • Page 40: Rs-232 Transmi Ssion Specifications

     ：1 bit Start bit  ：8 bit Data bit  ：1 bit Stop bit  ：None Parity bit  ：None X parameter  ：9600bps Baud rate (Communication speed) Send Device Code(1 Byte) : 0x52 Type Code(1 Byte) : 0x0B DataLength Code(1 Byte) : 0x03 Data Code(1 Byte) : See the Command Table for reference.
  • Page 41 Function Data[0] Data[1] Data[2] CheckSum CONT. CAPTURE INTERVAL - 0x06 0x01 0x00 0x5C NORMAL IMAGE CAPTURE 0x07 0x00 0x00 0x5C 3M/5M IMAGE CAPTURE 0x07 0x01 0x00 0x5D TIMER START 0x08 0x00 0x00 0x53 TIMER PAUSE 0x08 0x01 0x00 0x52 TIMER STOP 0x08 0x02 0x00...
  • Page 42 Function Data[0] Data[1] Data[2] CheckSum BRIGHTNESS DECREASE 0x12 0x01 0x00 0x48 VALUE[ 0 ~ BRIGHTNESS VALUE 0x12 0x02 63 ] EXPOSURE: AUTO 0x13 0x00 0x00 0x48 EXPOSURE: MANUAL 0x13 0x01 0x00 0x49 EXPOSURE MANUAL INCREASE 0x14 0x00 0x00 0x4F EXPOSURE MANUAL DECREASE 0x14 0x01 0x00...
  • Page 43 Function Data[0] Data[1] Data[2] CheckSum PIP POSITION: TOP LEFT 0x20 0x01 0x00 0x7A PIP POSITION: TOP RIGHT 0x20 0x02 0x00 0x79 PIP POSITION: BOTTOM RIGHT 0x20 0x03 0x00 0x78 SPLITSCREEN: OFF 0x21 0x00 0x00 0x7A SPLITSCREEN: ON 0x21 0x01 0x00 0x7B SPLITSCREEN DIR: UPPER SCREEN 0x22...
  • Page 44 Function Data[0] Data[1] Data[2] CheckSum USB CONNECT: USB CAMERA 0x30 0x00 0x00 0x6B USB CONNECT: MASS STORAGE 0x30 0x01 0x00 0x6A BACKUP TO SD CARD 0x31 0x00 0x00 0x6A BACKUP TO THUMBDRIVE 0x31 0x01 0x00 0x6B PROFILE SAVE: PROFILE 1 0x32 0x00 0x00...

  • Page 45: Rs-232 Get Command Table

    Function Data[0] Data[1] Data[2] CheckSum FREEZE 0x44 0x00 0x00 0x1F DEFAULT 0x45 0x00 0x00 0x1E ZOOM - 0x46 0x00 0x00 0x1D ZOOM + 0x46 0x01 0x00 0x1C ZOOM RESET 0x47 0x00 0x00 0x1C NEAR 0x48 0x00 0x00 0x13 0x48 0x01 0x00 0x12 LAMP OFF...

  • Page 46: Trouble Shooting

    AVerVision M70HD is in PC Mode. 5. For HDMI display output, a delay occurs while w aiting for both the display device and M70HD to sync up. Wait for around 4 to 7 seconds until you see the camera image on the screen.
  • Page 47 AVerVision M70HD can’t detect the inserted USB flash drive. Make sure the USB flash drive sw itch is set to the right and check if the USB flash drive is properly inserted. The recorded video on MAC with the bundled software doesn’t have sound.

  • Page 48: Limited Warranty

    For a period of time beginning on the date of purchase of the applicable product and extending as set forth in the “Warranty Period of AVer Product Purchased” section of the warranty card, AVer Information, Inc. (“AVer”) warrants that the applicable product (“Product”) substantially conforms to AVe r’s documentation for the product and that its manufacture and components are free of defects in material and workmanship under normal use.

  • Page 49: Limitation Of Liability

    Limitation of Liability IN NO EVENT SHALL AVER BE LIABLE FOR INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, PUNITIVE, OR CONSEQUENTIAL DAMAGES OF ANY NATURE INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS, DATA, REV ENUE, PRODUCTION, OR USE, BUSINESS INTERRUPTION, OR PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES ARISING OUT OF OR IN CONNECTION WITH THIS LIMITED WARRANTY, OR THE USE OR PERFORMANCE OF ANY PRODUCT, WHETHER BASED ON CONTRACT OR TORT, INCLUDING NEGLIGENCE, OR ANY OTHER LEGAL THEORY, EVEN IF AVER HAS ADVISED OF THE POSSIBILITY OF SUCH...
