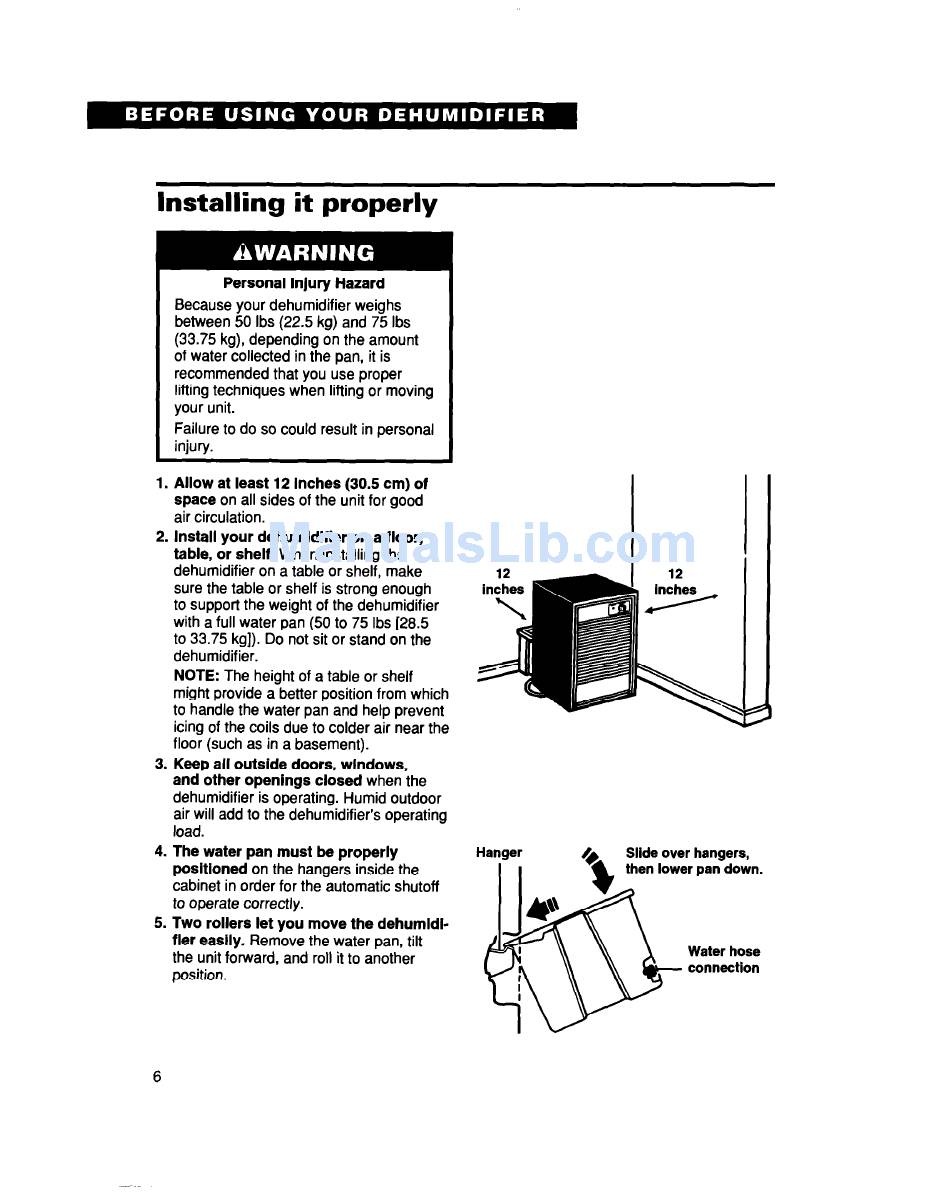

Installing
it properly
Personal
Injury Hazard
Because your dehumidifier weighs
between 50 Ibs (22.5 kg) and 75 Ibs
(33.75 kg), depending on the amount
of water collected in the pan, it is
recommended that you use proper
lifting techniques when lifting or moving
your unit.
Failure to do so could result in personal
injury.
1. Allow at least 12 inches (30.5 cm) of
space
on all sides of the unit for good
air circulation.
2. Install your dehumldifier
on a floor,
table, or shelf.
When installing the
dehumidifier on a table or shelf, make
sure the table or shelf is strong enough
to support the weight of the dehumidifier
with a full water pan (50 to 75 Ibs [28.5
to 33.75 kg]). Do not sit or stand on the
dehumidifier.
NOTE:
The height of a table or shelf
might provide a better position from which
to handle the water pan and help prevent
icing of the coils due to colder air near the
floor (such as in a basement).
3. Keep all outside
doors, wlndows,
and other openings
closed
when the
dehumidifier is operating. Humid outdoor
air will add to the dehumidifier's operating
load.
4. The water pan must be properly
positioned
on the hangers inside the
cabinet in order for the automatic shutoff
to operate correctly.
5. Two rollers let you move the dehumldl-
fler easily.
Remove the water pan, tilt
the unit forward, and roll it to another
position.
Hanger
I
I
Slide over hangers,
then lower pan down.
Water hose
connection
