6. Remove the two shoulder bolts form the pressure bar (
7.
8. Figure 3-3).
9. Remove the Pressure bar and turn down the black pressure bar blocks (
10.
11. Figure 3-3).
12. Remove the two screws located on the right and left side of the seal bar which hold the seal assembly
mechanism in place (
13.
14. Figure 3-3).
8
6
7. Pressure Bar Block
15. From the back, unplug the left and right side Anti-Jam Sensors, disconnect the Thermal-Couple, and
the left and right Heater Cartridge connectors.
16. From the front, pull one side (right or left side) of the seal assembly out from the front plate. Since the
seal assembly is tight, some maneuvering may be required to remove the assembly from the machine,
see To avoid damage to components or wiring, do not force the assembly.
Phase 2: (Refer to Heater Bar Assembly Diagram in 4.2B)
17. Remove the two springs (Item 14, TP-102153) holding the shafts together.
18. Remove the Socket Head Bolt and Nut on Each side of the Heater Plate.
19. Remove Teflon Shafts and Teflon Sheet.
20. Clean the adhesive from both shafts.
21. Separate the two shafts.
22. Lay one Shaft on the top of the Teflon Sheet and measure from the edge of the Teflon Sheet to the
edge of the Shaft. Ensure the Teflon Sheet is in the center of the Shaft.
23. Wrap a piece of tape on the Shaft at the edge of the Teflon.
24. Take the second Shaft, lay the first Shaft next to it and wrap tape around the end of the second Shaft
in exactly the same place as the first. Keep the taped ends on the same side of the Teflon Sheet.
25. Remove the adhesive backing from one end of the Teflon Sheet.
26. Align one Shaft parallel to the Teflon Sheet with the taped end of the Shaft meeting up with the edge
of the Teflon Sheet. Once the shaft is in position, lower onto adhesive side of the Teflon Sheet.
27. Roll the Shaft until you reach the end of the adhesive part.
28. Repeat with the other Shaft, ensuring the taped ends are on the same side. Once the Teflon Sheet has
been rolled over the Shafts, the tape may be removed.
29. Lay Heater Plate on a flat surface so the side plates stick up. Lay Teflon sheet over the Heater Plate
so that the shafts are parallel to the plate and the Teflon will roll on the outside of the shaft when
reattached.
19
7. Pressure Bar

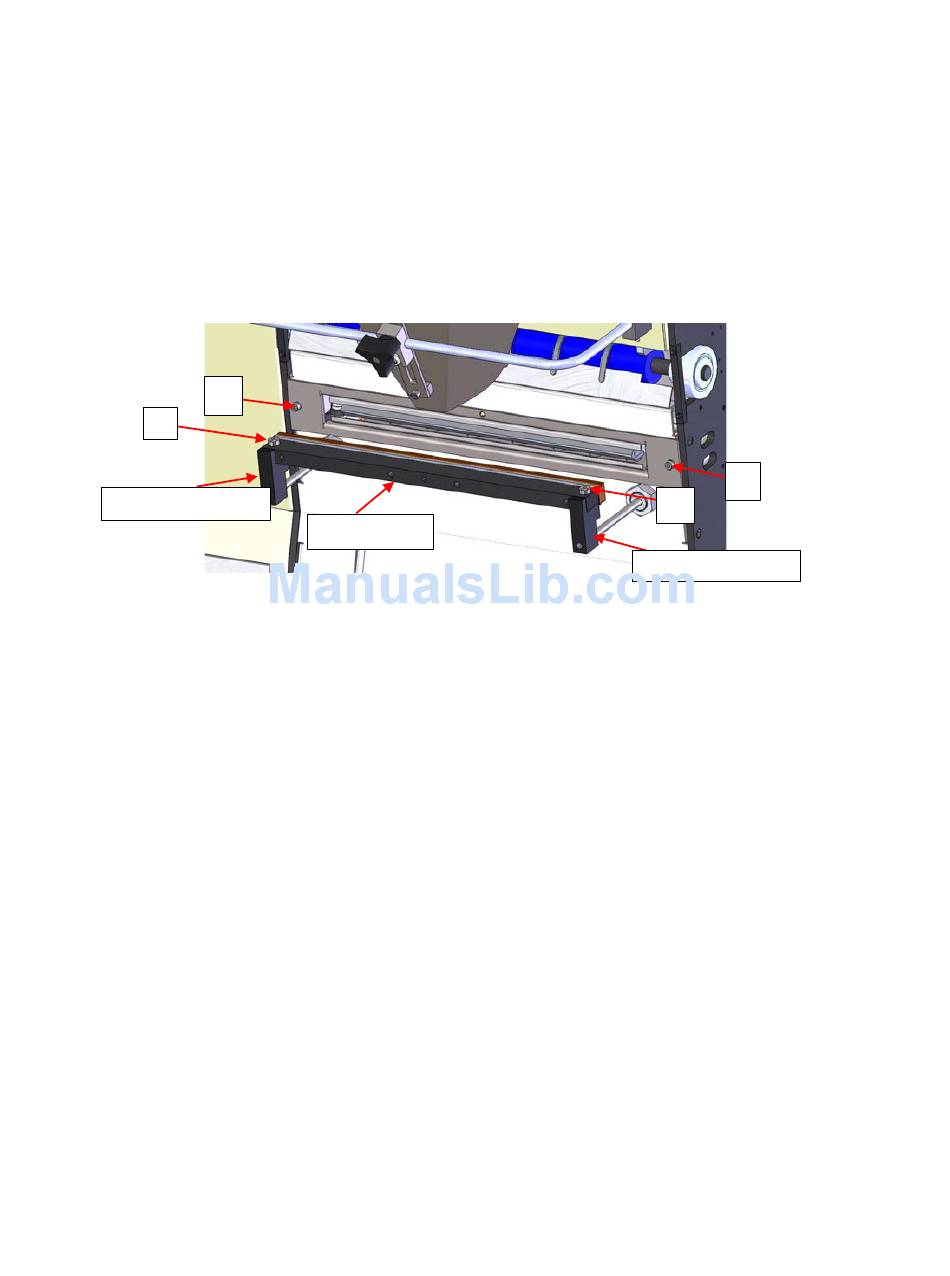

Figure 3-3
8
6
7. Pressure Bar Block
