Cobra 63890 Quick Start Manual

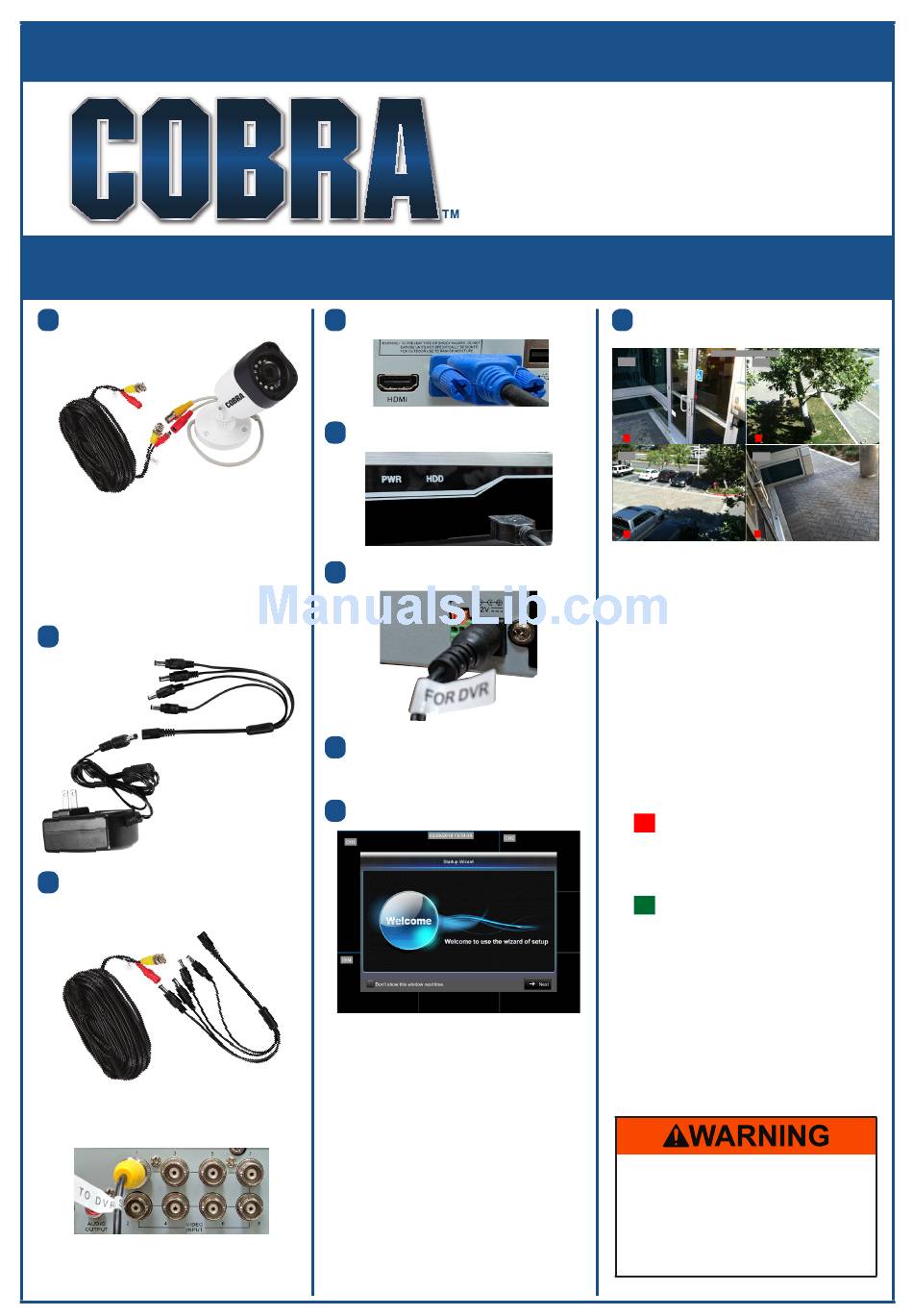

Basic Set up Quick Start Guide
• Monitor or TV with VGA or HDMI Input and Cable

Cables to Cameras

1
• Video - Yellow to Yellow
• Power - Red to Red
• IMPORTANT! WRAP CONNECTIONS
WITH ELECTRICAL TAPE!

Splitter to Power Adapter

2

Cables to Splitter/DVR

3
Power - Red to Splitter
Video - Yellow to Video Output
DO NOT PLUG IN OR MOUNT CAMERAS YET!
What you will need (sold separately):
• Surge Protector with 3 Dedicated Outlets

Monitor or TV to DVR

4

Mouse to DVR

5

Power Adapter to DVR

6

Power to Surge Protector

7
Plug in Monitor and Adapters

Setup Wizard

8
• Click Next
• REQUIRED! CREATE USER NAME.
CREATE PASSWORD USING
EXACTLY 8 NUMBERS, click Next
• If information for HDD, Network,
Email, and/or Record Schedule is
unknown, click Next to skip them
• Stop at General System Configuration
and enter date and time
• Click Save

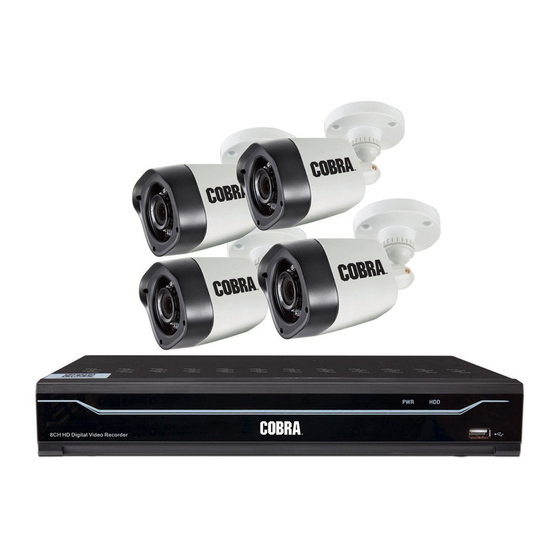

8 Channel
SURVEILLANCE
DVR
with 4 HD Cameras
With Mobile Monitoring Capabilities

Test and Mount Cameras

9
CH1
R
CH3
R
• IMPORTANT! VIEW CAMERAS
ON MONITOR TO MAKE SURE
THEY ARE WORKING PROPERLY
BEFORE MOUNTING THEM!
• Place cameras under eaves and cable
connections inside walls to shelter
them from rain and direct sunlight
• Mount cameras using supplied hardware

Default Settings

• Every camera will record all the time:
will show on screen and red
R
HDD light on DVR will blink
• Motion detected recording will be OFF:
will show on screen if motion is
M
detected, but DVR will not record
• Camera Recording Resolution will
be set to 1920 x 1080, FPS will
be 15, and Bitrate will be 4096
Please Refer to Owner's
Manual to Change Settings
This Quick Start Guide is not
intended to replace the Owner's
Manual & Safety Instructions. To
prevent serious injury, read all
safety warnings and instructions
therein to ensure proper usage.
63890
02/17/2018 09:23:14 AM
CH2
R
CH4
R
18d
