Important - Please read these instructions
fully before starting assembly
These instructions contain important information that will help
you get the best from your mower, ensuring it is assembled correctly
and safely. If you need help or have damaged or missing parts,
call the Customer Helpline on 0345 605 2067
hand push
3
ORIGINAL
INSTRUCTION
MANUAL
AFTER SALES SUPPORT
0345 605 2067

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XSS41D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spear & Jackson XSS41D

Summary of Contents for Spear & Jackson XSS41D

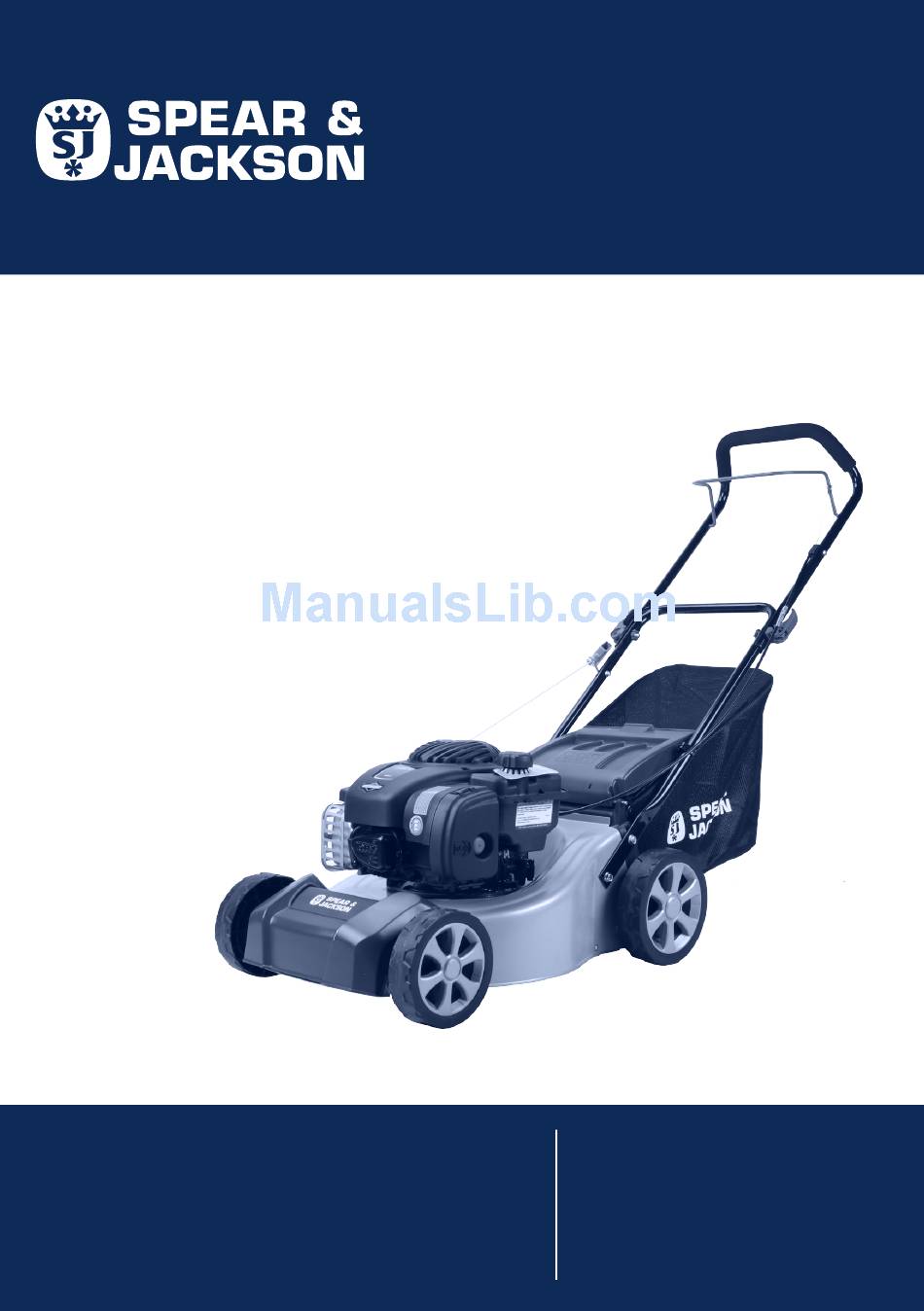

  • Page 1 INSTRUCTION MANUAL 41cm 125cm hand push Petrol Lawnmower XSS41D Important - Please read these instructions fully before starting assembly AFTER SALES SUPPORT 0345 605 2067 These instructions contain important information that will help you get the best from your mower, ensuring it is assembled correctly and safely.

  • Page 2: Table Of Contents

    SPEAR & JACKSON SINCE 1760 CONTENTS Safety Information....................04 Description of symbols..................... 04 For more than 250 years gardeners have enjoyed high quality performance and General safety......................05 great results using Spear & Jackson tools. Personal safety......................05 Our garden power tools combine continuous innovation and the latest in manufacturing technologies with a proud heritage.

  • Page 3: Safety Information

    SAFETY INFORMATION SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine. Please read these instructions fully before operating or maintaining your machine GENERAL SAFETY DESCRIPTION OF SYMBOLS The following warning symbols appear throughout this manual and indicate the appropriate or mental capabilities, safety measures you should take when operating and maintaining your lawnmower.

  • Page 4: Operating Safety

    SAFETY INFORMATION SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine Please read these instructions fully before operating or maintaining your machine ■ Replace faulty silencers. ■ Exercise extreme caution ■ Do not tilt the lawnmower this purpose.

  • Page 5: Intended Use

    SAFETY INFORMATION BOX CONTENTS PARTS Please read these instructions fully before operating or maintaining your machine Engine Upper handle with soft grip Start/Stop bar Steel deck ■ If the fuel tank has to be d)If lawnmower starts Qucik clamp Handle fixing bolts x 4 (on deck) to vibrate abnormally, drained, this should be Grass collecting bag...

  • Page 6: Assemble

    ASSEMBLE ASSEMBLE iii. Lift the upper handle, and lock in place using the WARNING! Wear proper gloves! handle tension knob (3) and tensioning bolts. Ensure the lower and upper handles are firmly connected. Unpacking i. Unpack all parts and lay them on a flat, stable surface. ii.

  • Page 7: Attach Cable Clips

    ASSEMBLE PREPARE ii. Raise the safety flap (6), and hook the collection bag onto the mower. STOP! Release the safety flap. DO NOT START THE ENGINE BEFORE PUTTING 500ML OF SAE 30 OIL INTO THE ENGINE. FAILURE TO DO SO WILL RESULT IN IRREPARABLE DAMAGE TO THE ENGINE AND INVALIDATE YOUR WARRANTY.

  • Page 8: Filling With Engine Fuel

    PREPARE PREPARE Never mix oil with petrol. Check the engine oil level with the engine stopped and the ■ mower on a level surface. Refuel carefully to avoid overfilling or spilling fuel to allow for ■ expansion. There should be no fuel in the filler neck. Remove the oil filler dipstick and wipe oil from it with a ■...

  • Page 9: Operate

    OPERATE OPERATE Setting the cutting height WARNING! While mowing, always wear substantial footwear and long trousers. Do not operate the equipment WARNING! when barefoot or wearing open sandals. -The blade can cause serious injury. Before adjusting the mower height, stop the engine and wait for the i.
  • Page 10 OPERATE OPERATE iii. Pull the Start/Stop bar towards you. Mowing Engine start WARNING! Always observe the strictest safety procedures when Engine stop using the lawnmower. Always fit the grass bag before mowing. Start the engine and allow it run. See ”Step-2 Starting the ■...

  • Page 11: Maintenance

    OPERATE MAINTENANCE Storing the lawnmower for short periods Emptying the grass bag After mowing, please follow the below actions prior to placing the i. Raise the safety flap with one hand and remove the grass lawnmower in storage. bag using its handle with your other hand. To maintain Allow the engine to fully cool.
  • Page 12 MAINTENANCE MAINTENANCE Maintenance schedule Empty the petrol tank with a petrol suction pump if available ■ or use the tipping method if a large quantity of fuel needs to be removed. Performing routine maintenance correctly on your lawnmower will ensure you get years of trouble free use. To remove smaller quantities of fuel, simply start the engine ■...
  • Page 13 MAINTENANCE MAINTENANCE Never clean the lawn mower with a water jet or high- • Clean the spark plug with a wire brush. ■ pressure cleaner. The engine must remain dry. Do not 0.43~0.58 mm • Using a feeler gauge set the gap to 0.51mm. use aggressive cleaning agents such as cold cleaner or petroleum ether.
  • Page 14 MAINTENANCE MAINTENANCE Replacing cutting blade Check the washer is still slightly domed to keep the pressure on the bold to stop it unwinding, keeping the blade WARNING! firmly secure. Replace the washer (right way round!) and - Before you remove the grass collection bag, stop bolts.

  • Page 15: Technical Data

    TECHNICAL DATA TECHNICAL DATA Property Value PART NUMBER ACCESSORIES Engine type Single cylinder 4-stroke QC12YC Spark plug Engine displacement 125cm 916901 Collection grass bag Engine power 1.8kW/ 3000/min 933206 Blade Max Engine speed 3000/min 932217 Blade bolt Cutting width 41cm 428029 Quick clamp Grass bag capacity...

  • Page 16: Troubleshooting

    TROUBLESHOOTING WARRANTY Suspected malfunctions are often due to causes that the user can fix themselves. If your device develops a fault, please don’t hesitate to contact our customer service Therefore, check the product using this section. In most cases the problem can be solved department on 0345 605 2067, the majority of problems can be solved directly on the phone.
