MONARCH INSTRUMENT Nova-Pro UV365 Instruction Manual

Ultra violet stroboscope/lamp/tachometer
Hide thumbs Also See for Nova-Pro UV365:

Advertisement

Quick Links

Instruction Manual
®
Nova-Pro
Ultra Violet UV365, UV385
Stroboscope / Lamp / Tachometer
15 Columbia Drive • Amherst, NH 03031 USA
Phone: (603) 883-3390 • Fax: (603) 886-3300
E-mail: support@monarchinstrument.com
Website: www.monarchinstrument.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nova-Pro UV365 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MONARCH INSTRUMENT Nova-Pro UV365

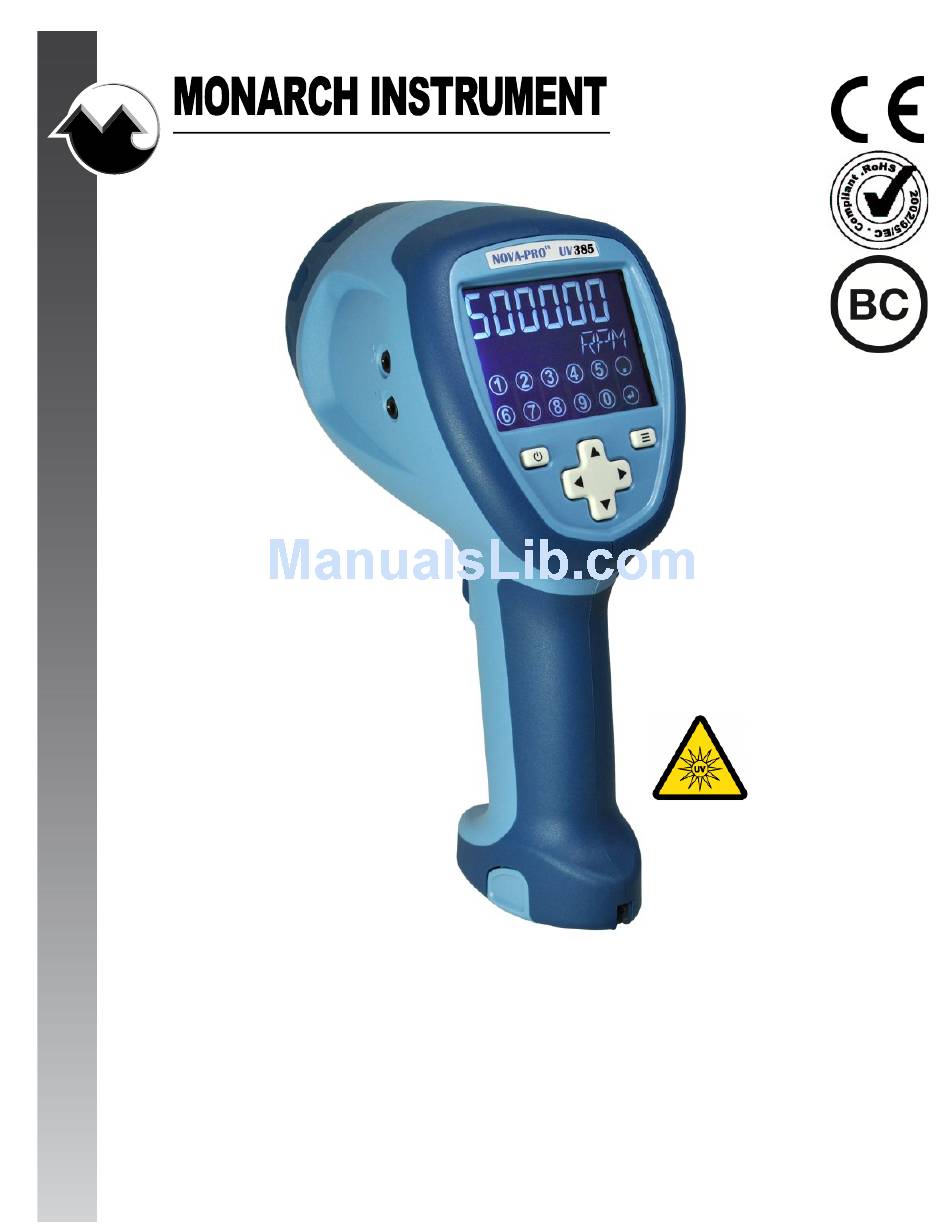

  • Page 1 Instruction Manual ® Nova-Pro Ultra Violet UV365, UV385 Stroboscope / Lamp / Tachometer 15 Columbia Drive • Amherst, NH 03031 USA Phone: (603) 883-3390 • Fax: (603) 886-3300 E-mail: support@monarchinstrument.com Website: www.monarchinstrument.com...
  • Page 2: Table Of Contents

    There are no user serviceable parts in this instrument. Refer service to a qualified technician. Monarch Instrument’s Limited Warranty applies. Warranty Registration and Extended Warranty coverage available online. See www.monarchinstrument.com for details. This instrument may not be safe for use in certain hazardous environ- ®...
  • Page 3 MODES OF OPERATION ..........7 5.7 DELAY Menu ............22 5.7.1 NONE ..............23 4.1 STROBE Mode ............7 5.7.2 PHASE..............23 4.1.1 Joystick ..............7 5.7.3 TIME ..............23 4.1.2 Touch Keypad Entry ..........8 5.7.4 VRPM ..............23 4.1.3 Doubling or Halving the Flash Rate ......
  • Page 4: Introduction

    1. INTRODUCTION Table 1 Nova-Pro Features The Nova-Pro UV365/385 are portable hand-held UV LED Stroboscope/ Bezel and Lens Bezel is removable to add or remove the Lamps used for inspection and to stop motion of moving objects. They Laser Module. UV Emitted from here! emit UVA light at 365nm or 385nm respectively.
  • Page 5: User Interface

    2. USER INTERFACE Table 2 Nova-Pro User Interface 6-digit display used to display flash rate and other numeric values. The Nova-Pro user interface consists of a large backlit display with touch keypad, dedicated keys on the user interface panel and a trigger to Lock icon—Active when the device is locked on.
  • Page 6: Getting Started

    3. GETTING STARTED 3.2 Input / Output Connections The Nova-Pro has input and output jacks on 3.1 Power the side that can be used for external The battery powered Nova-Pro has a removable Battery Out () triggering synchronization (daisy- Pack that should be charged before use (See Battery In () chaining two or more strobes).
  • Page 7: Modes Of Operation

    4. MODES OF OPERATION 4.1.2 Touch Keypad Entry Press the MENU button to display the numeric keypad. The Nova-Pro has four modes of operation: STROBE, LAMP, LASER and The flash rate will default to 0 and show the units you are TACH (Tachometer).
  • Page 8: External Input

    4.2 LAMP Mode The user cannot make any flash rate adjustments and the For full time activation of the UV light source, the Nova-Pro UV365/ display will show the rate of the external input. UV385 has a Lamp Mode that creates a bright, constant light for External icon will show in display when there is an inspection.
  • Page 9: Laser Mode

    4.3 LASER Mode 4.4 TACH (Tachometer) Mode The TACH (Tachometer) Mode requires the Laser Module to be The Laser Mode is only available when the Laser Module is installed. installed OR an external input (sensor) be plugged in. This mode This mode uses the LASER to trigger the strobe flash and is similar to uses the Laser or External signal to measure rotational speed.
  • Page 10 5. MENUS Push the POWER button to turn on. Push the POWER button to turn on. The menu that shows is dependent on the current operating mode Push MENU button one to three times until SETUP/MODE appears on screen, then MENU again to enter various MODES. Push MENU button one to three times until SETUP/MODE appears on screen, then MENU again to enter various MODES.
  • Page 11: Menu Overview

    5.1 Menu Overview 5.3 Brightness (BRITE) Menu To enter the menus, press the MENU button once or three Refer to Section 8 for details on Brightness and Flash Duration before times depending on the current mode (see overview) until the word using this feature.
  • Page 12 5.4.5 BKLIT (Backlight) Menu 5.4.3 INPUT Menu This menu option turns the backlight of the display ON or OFF. This menu sets the pulse polarity of the external signal that will trigger the strobe. The options are nEG for negative edge or Press the MENU button to enter the Backlight menu.
  • Page 13: Time

    5.3.2 Time Press the MENU button to enter the DECPT menu. The current value is shown on the top line with DECPT on the To set the flash duration in time instead of degrees, press the lower line. The On-Target indicator will be on for the MENU button again (skip the DEG menu).
  • Page 14: Recall Memory

    location. The current flash rate will then be shown in that 5.6.1 NONE location. To cancel the JOG mode, press the MENU button To exit without saving a value press the POWER button when NONE is displayed. 5.5.2 Recall Memory 5.6.2 PHASE To RECALL a saved strobe setting:...
  • Page 15: Vrpm

    desired value (refer to section 5.1.1). VRPM can be set from Press the MENU button to enter the DELAY menu. The current setting will be shown and the On-Target indicator will –60.0 RPM to +60.0 RPM. be on for the currently selected value. Press the MENU button accept and exit.
  • Page 16: Brightness In Degrees Of Rotation

    (flash duration/time per rotation) x 360°, 6.3 Brightness in Pulse Duration which is (.0001/.01) x 360 = 3.6°. So you will Brightness can also be set to a fixed duration pulse in microseconds. The see the shaft appear to move 3.6°. flash rate remains constant irrespective of the flash rate, thus as the As the flash pulse widens you will see greater flash rate increases, the image will get brighter and more blurred.
  • Page 17: External / Laser Delay

    Use this feature to bring a reference mark, such as a keyway, into Figure 9 Triggered Phase your line of sight. It may be necessary to adjust the flash rate to TRIGGER POINT keep the target static if the speed is drifting. PHASE Use the JOG Menu to set a PHASE Delay of –30°.
  • Page 18: Battery Pack

    (0 to 60 RPM). This gives a “slow-motion” effect and enables the The Nova-Pro Battery Pack is specifically keyed to fit in the Nova-Pro and target to be examined as it moves through a complete cycle or Charger Base one way only. Insert the Battery Pack into the Nova-Pro until the clips lock into place.
  • Page 19: Ac Power Option

    9. AC POWER OPTION 11. SPECIFICATIONS The Nova-Pro can be ordered specifically with the AC Power Option for Specifications Nova-Pro UV 385 nm continuous operation from AC power. The AC Power Option can also be Flash Range (FPM/RPM): 30 to 999,999 ordered as a separate option for the Nova-Pro.
  • Page 20: Operating Environment

    AC Adapter Replacement/optional 115/230 Vac 50/60 Hz AC Adapter with 11.1 Operating Environment 6 foot [2M] cable with USA, UK, AUS, Euro adapter plugs. This equipment is NOT intended for permanent installation. Charging Station Replacement Charging Station for Nova-Pro Li-Ion Battery Packs.
  • Page 21 Check out our other product lines… Handheld Panel Portable Machine Vision Tachometers Tachometers Stroboscopes Stroboscopes Speed Sensors Temperature/ Vibration Meters Humidity Sensors Paperless Recorders Track-It® Data Loggers Printed in the U.S.A. © Copyright 2017 Monarch Instrument, all rights reserved 1071-42483-110 rev 1.0...
