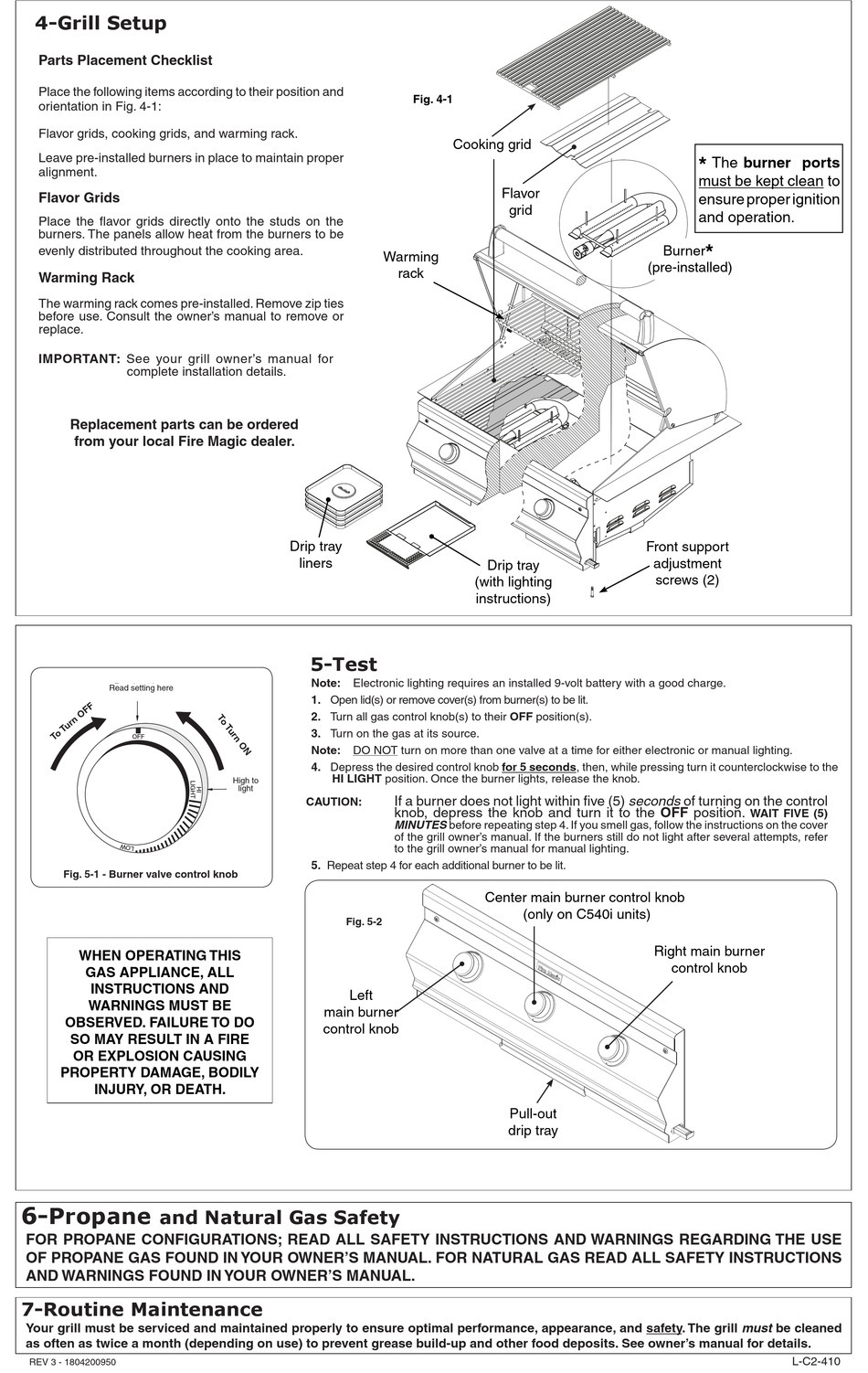

4-Grill Setup

Parts Placement Checklist
Place the following items according to their position and
orientation in Fig. 4-1:
Flavor grids, cooking grids, and warming rack.
Leave pre-installed burners in place to maintain proper
alignment.
Flavor Grids
Place the flavor grids directly onto the studs on the
burners. The panels allow heat from the burners to be
evenly distributed throughout the cooking area.
Warming Rack
The warming rack comes pre-installed. Remove zip ties
before use. Consult the owner's manual to remove or
replace.
IMPORTANT: See your grill owner's manual for
complete installation details.
Replacement parts can be ordered
from your local Fire Magic dealer.
Read setting
Read setting here
here
OFF
Fig. 5-1 - Burner valve control knob
WHEN OPERATING THIS
GAS APPLIANCE, ALL
INSTRUCTIONS AND
WARNINGS MUST BE
OBSERVED. FAILURE TO DO
SO MAY RESULT IN A FIRE
OR EXPLOSION CAUSING
PROPERTY DAMAGE, BODILY
INJURY, OR DEATH.
6-
Propane
and Natural Gas Safety
FOR PROPANE CONFIGURATIONS; READ ALL SAFETY INSTRUCTIONS AND WARNINGS REGARDING THE USE
OF PROPANE GAS FOUND IN YOUR OWNER'S MANUAL. FOR NATURAL GAS READ ALL SAFETY INSTRUCTIONS
AND WARNINGS FOUND IN YOUR OWNER'S MANUAL.

7-Routine Maintenance

Your grill must be serviced and maintained properly to ensure optimal performance, appearance, and safety. The grill must be cleaned
as often as twice a month (depending on use) to prevent grease build-up and other food deposits. See owner's manual for details.
REV 3 - 1804200950
Warming
Drip tray
liners

5-Test

Note: Electronic lighting requires an installed 9-volt battery with a good charge.
1. Open lid(s) or remove cover(s) from burner(s) to be lit.
2. Turn all gas control knob(s) to their OFF position(s).
3. Turn on the gas at its source.
Note: DO NOT turn on more than one valve at a time for either electronic or manual lighting.
4. Depress the desired control knob for 5 seconds, then, while pressing turn it counterclockwise to the
HI LIGHT position. Once the burner lights, release the knob.
High to
HIGH to
light
LIGHT
CAUTION:
5. Repeat step 4 for each additional burner to be lit.
Fig. 5-2
Left
main burner
control knob
Fig. 4-1
Cooking grid
Flavor
grid
rack
Drip tray
(with lighting
instructions)
If a burner does not light within five (5) seconds of turning on the control
knob, depress the knob and turn it to the OFF position.
MINUTES before repeating step 4. If you smell gas, follow the instructions on the cover
of the grill owner's manual. If the burners still do not light after several attempts, refer
to the grill owner's manual for manual lighting.
Center main burner control knob
(only on C540i units)
Pull-out
drip tray
*
The burner ports
must be kept clean to
ensure proper ignition
and operation.
*
Burner
(pre-installed)
Front support
adjustment
screws (2)
WAIT FIVE (5)
Right main burner
control knob
L-C2-410
