Truma LevelControl Operating Instructions Manual page 5

1

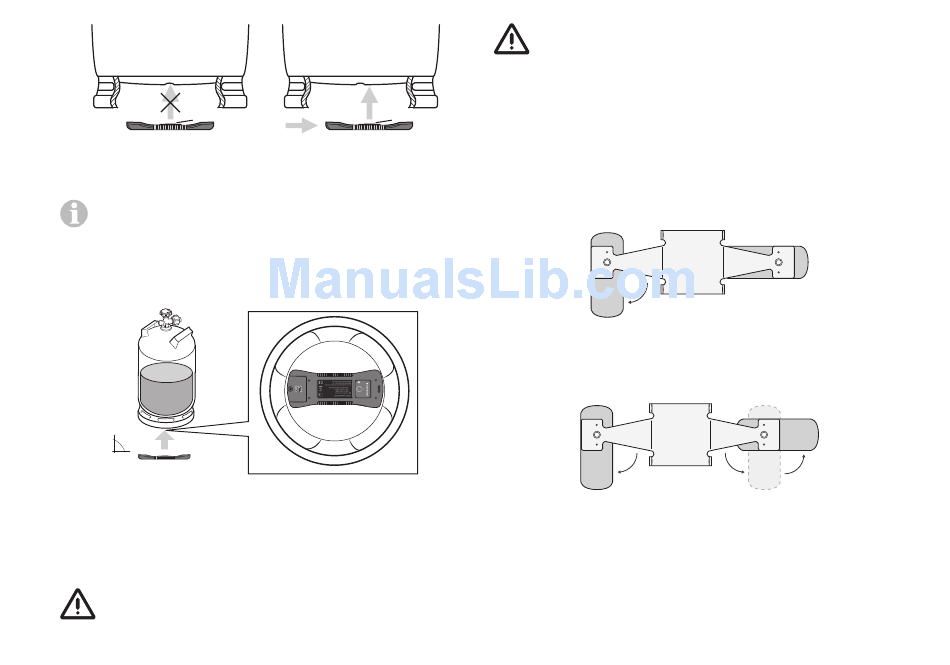

Figure 2
Steel gas cylinders
If the Truma LevelControl is not held by the magnets on
the gas cylinder, perform the steps described under
" Aluminium gas cylinders".
Fit the Truma LevelControl with the coupling pad (1) centrally
on the cylinder base.
90°
Figure 3
Aluminium gas cylinders
The separately available clamping sheet is required for secur-
ing (see "Accessories")
Danger of cut injuries! Wear protective gloves (con-
forming to EN 388 ref. no. 3221) when securing the
clamping sheet.
Do not pull the Truma LevelControl along the gas cylin-
der base, as this can damage the coupling pad (1).
When securing the clamping sheet, make sure that the Truma
LevelControl is not pushed along the cylinder base.
1
Adjust the clamping sheet to option A or B, depending on
the gas cylinder size. Rotate the swivel plate (6) through 90°
until it engages. For option B, also rotate the swivel plate (7)
through 180° until it engages.
Option A
Figure 4
Option B
Figure 5
6
6
7
5
