seLeCTing ChAnneLs

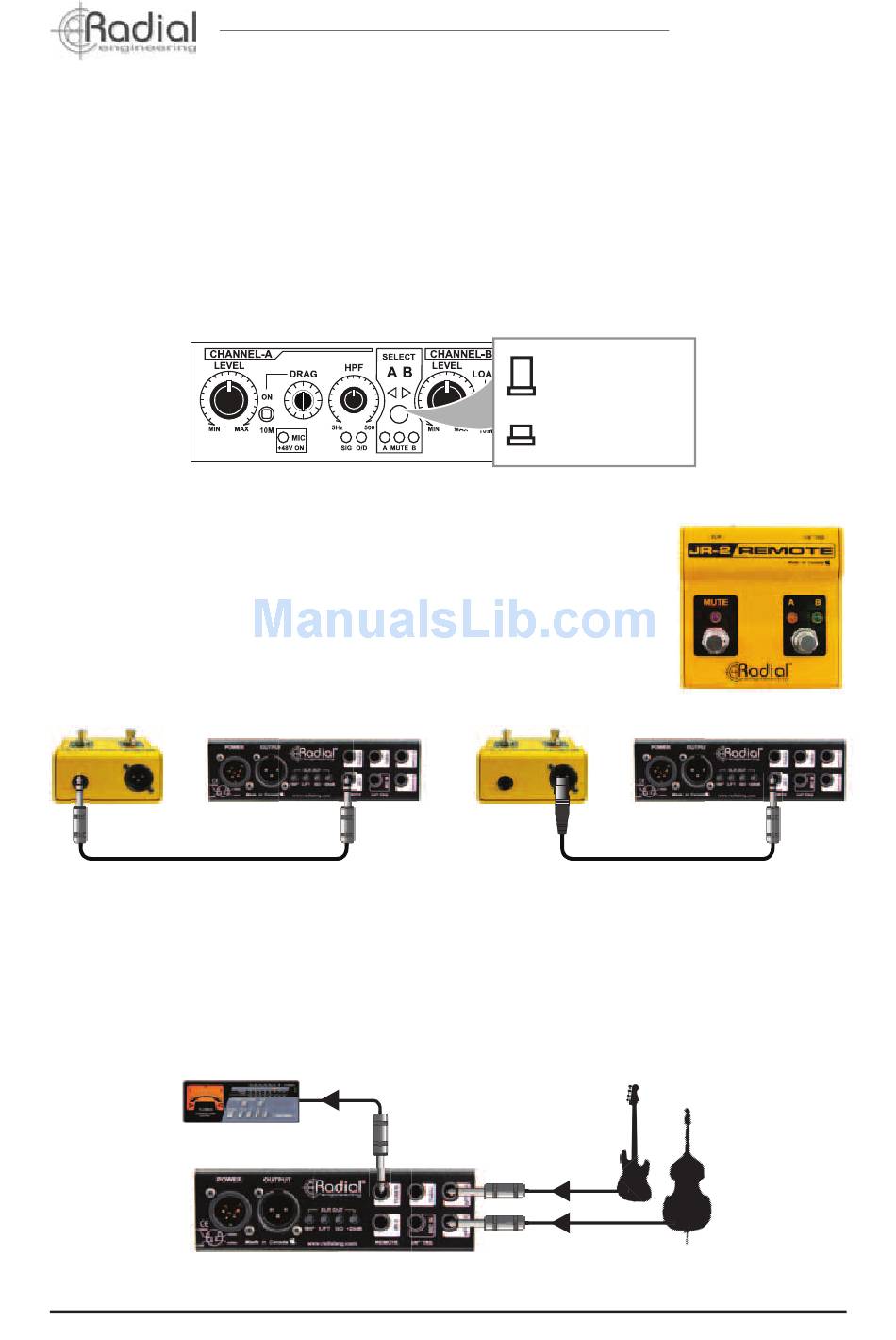

using the AB select switch
You can now connect your second bass to input-B. To switch, simply depress the front panel
SELECT switch. You can also toggle the input by using the optional JR•2 footswitch. When
connected, the JR•2 derives its power from the JDV to illuminate the status LEDs. When
depressed, both the LEDs on the JR•2 and on the JDV front panel will follow suit. Set the
Channel-B level control to 12 o'clock and then switch back and forth between the two instru-
ments and adjust the levels so that they are relatively even in loudness.
JR•2 remote footswitch
For quiet tuning on stage you can mute the JDV output using the optional
JR•2 footswitch. Two footswitches are on board to allow AB switching
and mute. When muted, the front panel MUTE LED will illuminate as
will the footswitch mute LED. When muted, all of the JDV outputs other
than the tuner will be turned off. The JR•2 may be connected using
either a TRS-TRS or TRS-XLR cable.
¼" TRS to TRS
Connect an electronic tuner
The JDV is equipped with a dedicated ¼" tuner output that is always on. This is separately
buffered so that the internal quartz clock will not introduce noise into the JDV or the audio
system. This output can also be used to feed a second amp.
Radial Engineering Ltd.
Channel-A
select
Channel-B
select
7
True to the Music
XLR-F to TRS
JDV™ Mk5 Active Direct Box
