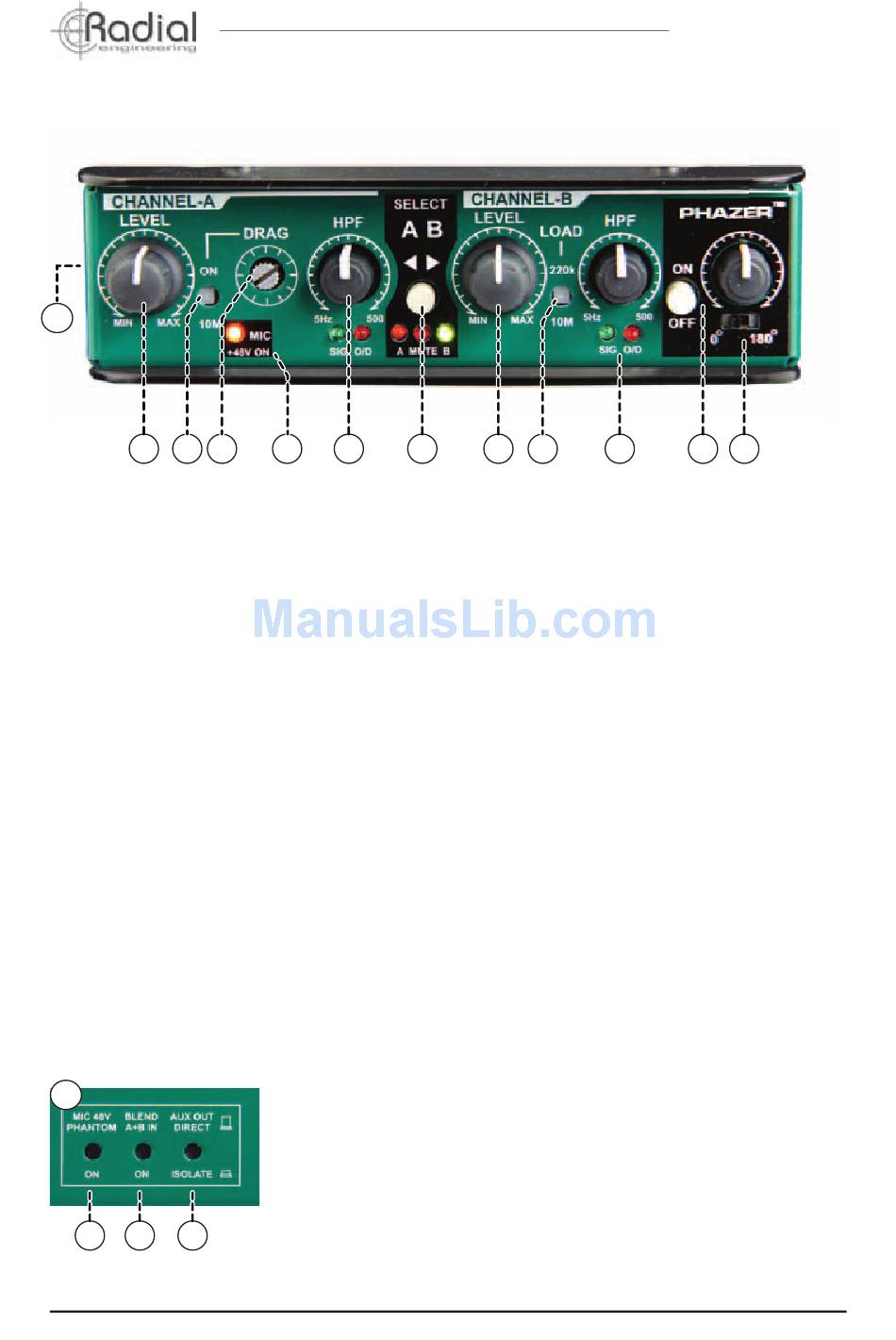

fRonT PAneL feATuRe seT
A
1 2 3
1. LeVeL A: Fully variable control, used to set the input sensitivity for channel-A.
2. on/10M: Sets the load to 10MΩ for piezo or variable drag for magnetic pickups.
3. DRAg: Used to retain the natural feel of the instrument by adjusting the load for
passive pickups.
4. 48V: LED Indicator lets you know 48V phantom power is activated on the MIC IN.
5. hPf: Variable high-pass fi lter rolls off low frequency resonance that can cause
feedback or muddy up the sound.
6. AB: Channel selector toggles between A and B inputs with LED status indicators.
7. LeVeL B: Fully variable control, used to set the input sensitivity for channel-B.
8. LoAD: Switches the input impedance from 10MΩ for piezo transducers to 220kΩ for
magnetic pickups.
9. sig/oVD: LEDs show signal presence and if you are exceeding the maximum input level.
10. PhAZeR: Adjusts the relative phase between channel A and B to time align
fundamentals for a more natural sound.
11. 0/180º: Shifts the Phazer's range from 1º~180º to 181º~360º.
A
12 13 14
Radial Engineering Ltd.
4 5 6
12. MiC 48V: Turns on the 48V phantom power at the MIC IN.
13. BLenD: Combines input-A with input-B and lets you mix the
two sources using the front panel level controls.
14. AuX ouT/DiReCT: Lets you introduce an isolation transformer
into the stage amp output signal path to reduce hum and buzz
caused by ground loops.
