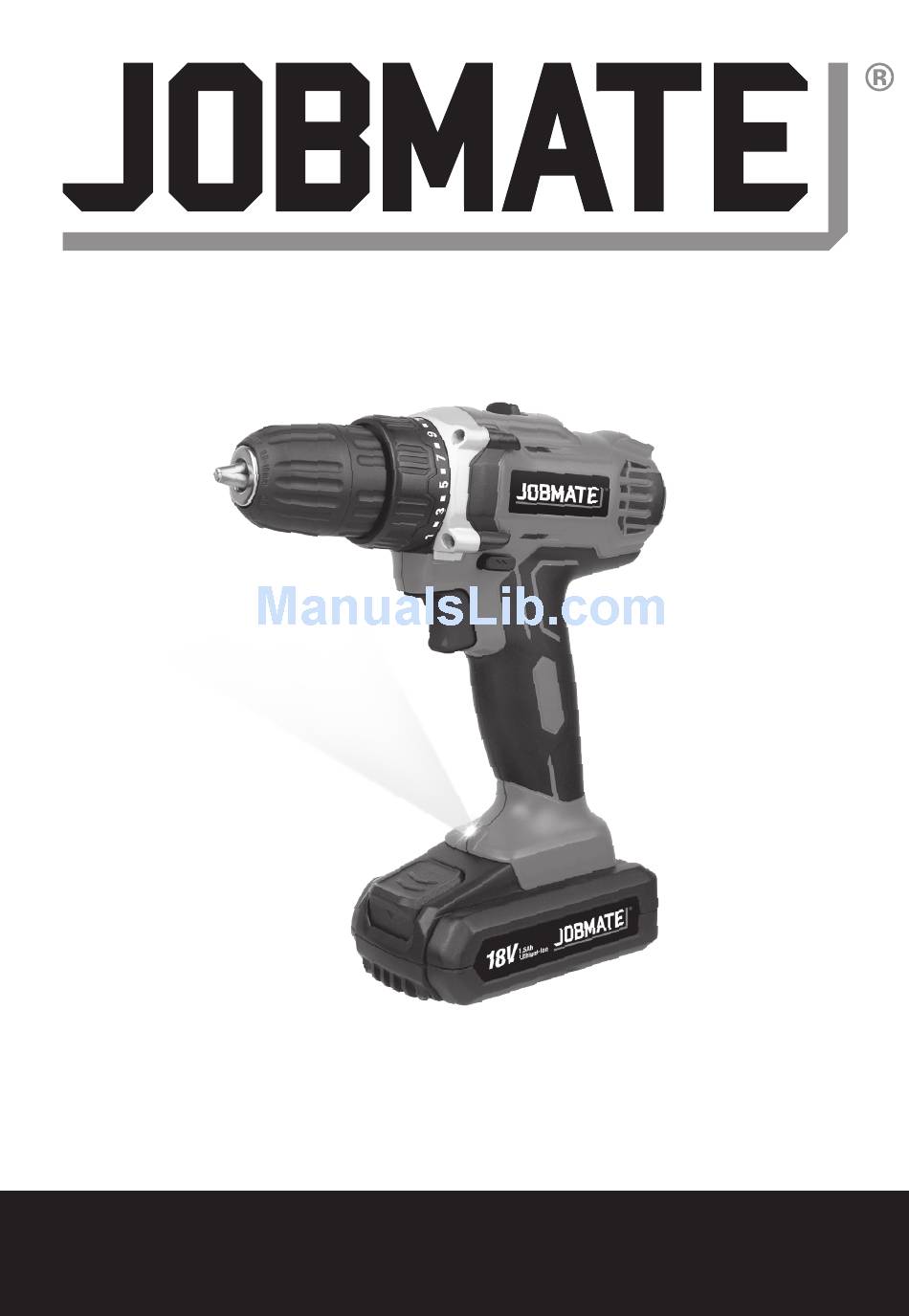

- Page 1 SAFETY AND OPERATING MANUAL DRILL DRIVER KIT JMCDT218W...
-
Page 2: General Power Tool Safety Warnings
GENERAL POWER TOOL use common sense when operating a power tool. Do not use a power tool while you are SAFETY WARNINGS tired or under the influence of drugs, alcohol or medication. A moment of inattention while WARNING! Read all safety warnings and all operating power tools may result in serious instructions. -
Page 3: General Safety Warnings For Your Battery Charger
e) Maintain power tools. Check for (including children) with reduced physical, sensory misalignment or binding of moving parts, or mental capabilities, or lack of experience breakage of parts and any other condition and knowledge, unless they have been given that may affect the power tool’s operation. supervision or instruction concerning use of the If damaged, have the power tool repaired appliance by a person responsible for their safety. -
Page 4: Safety Warnings For Battery Pack
SAFETY WARNINGS FOR SYMBOLS BATTERY PACK To reduce the risk of injury, user must a) Do not dismantle, open or shred cells or read instruction manual battery pack. b) Do not short-circuit a battery pack. Do not Warning store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive Wear ear protection... -
Page 6: Component List
COMPONENT LIST 1. Keyless chuck 2. Torque adjustment ring 3. Two-speed gear control 4. Forward/reverse rotation control 5. Soft grip handle 6. Battery pack 7. Battery pack release button 8. LED light 9. On/off switch ACCESSORIES Battery pack (ABP118W1) Charger (ACG118W) 60mm magnetic holder HSS drill bits 25mm bits... -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS NOTE: Before using the tool, read the instruction book carefully. INTENDED USE The machine is intended for driving in and loosening screws as well as for drilling in wood, metal and plastic. BEFORE PUTTING INTO OPERATION Fig.A CHARGING THE BATTERY (SEE FIG. A) NOTE: a) Do not use any charger other than that specifically provided for use with the equipment. - Page 8 Fig.A TO REMOVE THE BATTERY PACK (SEE FIG B1) Depress the Battery Pack Release Button firmly first and then slide the Battery Pack out from your tool. TO INSTALL THE BATTERY PACK (SEE FIG B2) Slide the fully charged Battery Pack onto the tool with sufficient force until it clicks into position.
- Page 9 Fig.C 3. REVERSIBLE (SEE FIG. D1, D2) For drilling and screw driving use forward rotation marked “ ” (lever is moved to the left of the drill) (D1). Only use reverse rotation marked “ ” (lever is moved to the right of the drill) (D2) to remove screws or release a jammed drill bit.
- Page 10 Fig.F 6. TORQUE ADJUSTMENT (SEE FIG. G) (Screw driving force of your drill driver) The torque is adjusted by rotating the torque adjustment ring. The torque is greater when the torque adjustment ring is set on a higher setting. The torque is less when the torque adjustment ring is set on a lower setting.
-
Page 11: Maintenance
or disposal options. Discharge your battery pack 3. REASONS FOR DIFFERENT BATTERY PACK by operating your drill, then remove the battery WORKING TIMES pack from the drill housing and cover the battery Charging time problems, as above, and having not pack connections with heavy-duty adhesive tape to used a battery pack for a prolonged time will reduce prevent short circuit and energy discharge.
