Summary of Contents for Fender SANTA ANA OVERDRIVE
- Page 1 SANTA A NA OVERD RI VE...

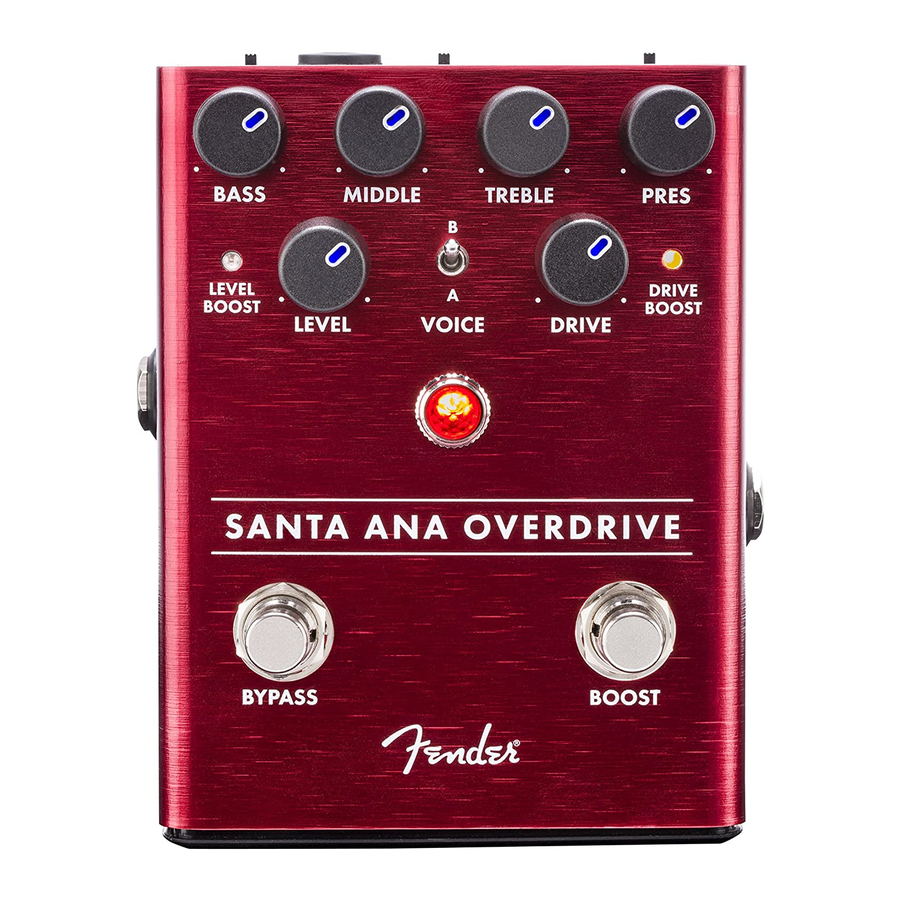

- Page 2 LEDs BYPASS FS SELECT 9V DC INPUT BASS MIDDLE TREBLE PRES LEVEL DRIVE BOOST BOOST VOICE LEVEL DRIVE SA NTA ANA OV ER DR IV E BYPASS BOOST 1. Bypass Footswitch 11. Drive Boost LED 2. Jewel Indicator 12. Voice Switch 3.
- Page 3 SA NTA ANA OVE RDR I VE Thanks for purchasing the Santa Ana Overdrive Pedal—a very versatile overdrive pedal with great touch sensitivity and responsiveness. Designed to sound and feel like a great overdriven tube amp, this pedal is highly interactive with your guitar’s volume control (the...
- Page 4 Voice Switch The American voicing works well with a classic Fender clean amp like a Deluxe Reverb. Try the British voicing with a Fender Bassbreaker and other similar amps. Great sounds can be had, however, with many other configurations.
-
Page 5: Input Jack
Bypass Select This slider switch selects between true bypass and buffered bypass modes. True bypass is accomplished using a high-quality relay. In the buffered setting, the signal goes through a single active buffer stage that provides low-impedance output for driving long cables and multiple effects. -
Page 6: Important Safety Instructions
A PRODUCT OF: FENDER MUSICAL INSTRUMENTS CORPORATION CORONA, CALIFORNIA, USA Fender® is a registered trademark of FMIC. Copyright © 2018 FMIC. All rights reserved. P/N 7713292000 - REV A Important Safety Instructions •WARNING: To prevent damage, fire or shock hazard, do not expose the unit or its AC power to rain or moisture. - Page 7 NOTES:...
- Page 8 © FENDER MUSICAL INSTRUMENTS 2018...
