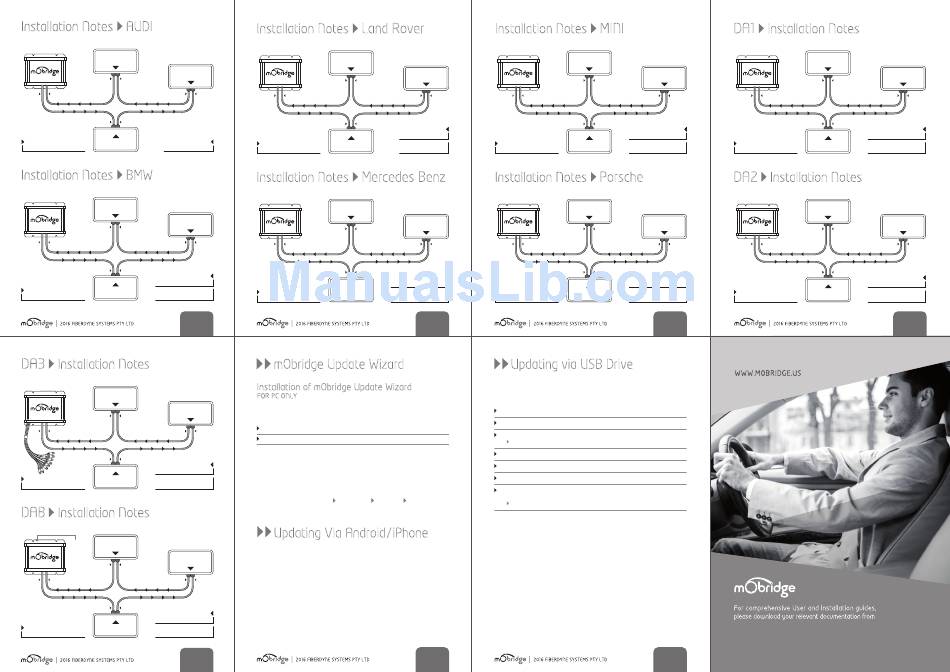

Mobridge M2.Connect Quick Start Installation Manual page 2

Installation Notes AUDI
Please see Audi vehicle compatibility chart for your mObridge model on our website.
MAIN MMI
CONTROL UNIT
OTHER MOST
DEVICES*
LIGHT OUT LIGHT IN
LIGHT OUT LIGHT IN LIGHT'S DIRECTION OF TRAVEL LIGHT OUT LIGHT IN
Also what you see
LIGHT IN LIGHT OUT
CD CHANGER *
LIGHT IN & OUT OPTIONAL EQUIPMENT
Arrows point in the direction of the light. TV Tuner, Navigation etc
Installation Notes BMW
Please see BMV vehicle compatibility chart for your mObridge model on our website.
HEAD UNIT
OR CCC UNIT
OTHER MOST
DEVICES*
LIGHT OUT LIGHT IN
LIGHT OUT LIGHT IN LIGHT'S DIRECTION OF TRAVEL LIGHT OUT LIGHT IN
Also what you see
LIGHT IN LIGHT OUT
*
OPTIONAL EQUIPMENT
TV Tuner, Navigation etc
LIGHT IN & OUT CD CHANGER**
** has to be "looped out" of the MOST
Arrows point in the direction of the light. ring if iPod functionality is required.
05
2016 FIBERDYNE SYSTEMS PTY LTD
DA3 Installation Notes
Please see vehicle compatibility chart for you're your particular vehicle on our mObridge website.
HEAD UNIT
OR CCC UNIT
OTHER MOST
DEVICES*
LIGHT OUT LIGHT IN
LIGHT LIGHT IN LIGHT'S DIRECTION OF TRAVEL LIGHT OUT LIGHT IN
OUT Also what you see
LIGHT IN LIGHT OUT
8 Channel RCA
*
connection' to OPTIONAL EQUIPMENT
aftermarket amplifier.
TV Tuner, Navigation etc
CD CHANGER**
LIGHT IN & OUT
** has to be "looped out" of the MOST
Arrows point in the direction of the light. ring if iPod functionality is required.
DAB Installation Notes
Please see vehicle compatibility chart for you're your particular vehicle on our mObridge website.
HEAD UNIT
Connect
digital OR CCC UNIT
antenna
here
OTHER MOST
DEVICES*
LIGHT OUT LIGHT IN
LIGHT'S DIRECTION OF TRAVEL
LIGHT LIGHT IN LIGHT OUT LIGHT IN
OUT Also what you see
LIGHT IN LIGHT OUT
*
OPTIONAL EQUIPMENT
TV Tuner, Navigation etc
CD CHANGER**
LIGHT IN & OUT
has to be "looped out" of the MOST
**
Arrows point in the direction of the light. ring if iPod functionality is required.
09
2016 FIBERDYNE SYSTEMS PTY LTD
Installation Notes Land Rover
Please see Land Rover vehicle compatibility chart for your mObridge model on our website.
RADIO OR MAIN
CONTROL UNIT
OTHER MOST
DEVICES*
LIGHT OUT LIGHT IN
LIGHT OUT LIGHT IN LIGHT'S DIRECTION OF TRAVEL LIGHT OUT LIGHT IN
Also what you see
LIGHT IN LIGHT OUT
*
OPTIONAL EQUIPMENT
TV Tuner, Navigation etc
CD CHANGER**
LIGHT IN & OUT
May or may not be present
**
in the vehicle
Arrows point in the direction of the light.
Installation Notes Mercedes Benz
Please see Mercedes Benz vehicle compatibility chart for your mObridge model on our website.
AUDIO 20/50 OR
COMAND UNIT
OTHER MOST
DEVICES*
LIGHT OUT LIGHT IN
LIGHT OUT LIGHT IN LIGHT'S DIRECTION OF TRAVEL LIGHT OUT LIGHT IN
Also what you see
LIGHT IN LIGHT OUT
*
OPTIONAL EQUIPMENT
TV Tuner, Navigation etc
CD CHANGER**
LIGHT IN & OUT
** has to be "looped out" of the MOST
Arrows point in the direction of the light. ring if iPod functionality is required.
06
2016 FIBERDYNE SYSTEMS PTY LTD
mObridge Update Wizard
Installation of mObridge Update Wizard
FOR PC ONLY
The mObridge Update Wizard allows you to configure and update mObridge
devices to suit different vehicles via four different methods:
USB Cable – via PC
USB Drive
Operating system requirements: PC running Windows XP Onward
The wizard can be downloaded from http://mobridge.us/node/13371
Download and save the file to your computer, open the file and follow the
installation instructions.
To open the Wizard go to Start All Programs mObridge mObridge
Update Wizard
/
Updating Via Android iPhone
For Bluetooth Enabled mObridge devices only. Your mObridge android app will
automatically know when updates are available. When asked if you would like
to update, simply click 'yes' and the update will automatically install when you
connect to your Bluetooth in the vehicle.
mObridge Android/iPhone App its available through the Playstore and iTunes.
10
2016 FIBERDYNE SYSTEMS PTY LTD
Installation Notes MINI
Please see MINI vehicle compatibility chart for your mObridge model on our website.
HEAD UNIT
OR CCC UNIT
OTHER MOST
DEVICES*
LIGHT OUT LIGHT IN
LIGHT OUT LIGHT IN LIGHT'S DIRECTION OF TRAVEL LIGHT OUT LIGHT IN
Also what you see
LIGHT IN LIGHT OUT
*
OPTIONAL EQUIPMENT
TV Tuner, Navigation etc
CD CHANGER**
LIGHT IN & OUT
** has to be "looped out" of the MOST
ring if iPod functionality is required.
Arrows point in the direction of the light.
Installation Notes Porsche
Please see Porsche vehicle compatibility chart for your mObridge model on our website.
CDR23/24
OR PCM UNIT
OTHER MOST
DEVICES*
LIGHT OUT LIGHT IN
LIGHT OUT LIGHT IN LIGHT'S DIRECTION OF TRAVEL LIGHT OUT LIGHT IN
Also what you see
LIGHT IN LIGHT OUT
*
OPTIONAL EQUIPMENT
TV Tuner, Navigation etc
CD CHANGER**
LIGHT IN & OUT
** has to be "looped out" of the MOST
Arrows point in the direction of the light. ring if iPod functionality is required.
07
2016 FIBERDYNE SYSTEMS PTY LTD
Updating via USB Drive
Download the relevant update file from www.mobridge.us/support or the
relevant product page, and then place the file onto your USB Drive. Follow
these instructions:
01
Turn the vehicle ignition ON
02 Make sure the radio is ON
03 Plug the USB drive into the mObridge device
Installation will automatically start
04 Wait 10 minutes before removing the USB device
05 Turn the vehicle off and remove the key form the ignition
06 Wait 5 minutes for the MOST bus system to go into 'sleep' mode
07 Turn the vehicle ignition back ON and verify the correct operation of
the audio device.
If all works correctly then the installation is a success!
11
2016 FIBERDYNE SYSTEMS PTY LTD
DA1 Installation Notes
Please see vehicle compatibility chart for you're your particular vehicle on our mObridge website.
HEAD UNIT
OR CCC UNIT
OTHER MOST
DEVICES*
LIGHT OUT LIGHT IN
LIGHT OUT LIGHT IN LIGHT'S DIRECTION OF TRAVEL LIGHT OUT LIGHT IN
Also what you see
LIGHT IN LIGHT OUT
*
OPTIONAL EQUIPMENT
TV Tuner, Navigation etc
CD CHANGER**
LIGHT IN & OUT
** has to be "looped out" of the MOST
ring if iPod functionality is required.
Arrows point in the direction of the light.
DA2 Installation Notes
Please see vehicle compatibility chart for you're your particular vehicle on our mObridge website.
CDR23/24
OR PCM UNIT
OTHER MOST
DEVICES*
LIGHT OUT LIGHT IN
LIGHT OUT LIGHT IN LIGHT'S DIRECTION OF TRAVEL LIGHT OUT LIGHT IN
Also what you see
LIGHT IN LIGHT OUT
*
OPTIONAL EQUIPMENT
TV Tuner, Navigation etc
CD CHANGER**
LIGHT IN & OUT
** has to be "looped out" of the MOST
Arrows point in the direction of the light. ring if iPod functionality is required.
08
2016 FIBERDYNE SYSTEMS PTY LTD
WWW.MOBRIDGE.US
For comprehensive User and Installation guides,
please download your relevant documentation from
WWW.MOBRIDGE.US/USER-MANUALS
