- Page 1 DA-G2 MOST150 OPTICAL MERCEDES B R I D G I N G M E D I A , C O M M U N I C A T I O N & L I F E S T Y L E W I T H Y O U R V E H I C L E...
-
Page 3: Table Of Contents
DISCLAIMER WELCOME OVERVIEW Vehicle Compatibility Kit Contents DA-G2.Entry MOST150 Optical Kit DA-G2.Standard MOST150 Optical and DA-G2.Pro MOST150 Optical Kits Technical Specifications HARDWARE INSTALLATION System Layout DA-G2.Entry MOST150 DA-G2.Standard MOST150 and DA-G2.Pro MOST150 Installation Guide Wiring Harness Remote Wakeup DIP Switches LED Status GRAPHICAL INTERFACE OPERATION Software Update... -
Page 4: Disclaimer
D I S C L A I M E R mObridge makes every effort to try and keep the support and installation documentation up to date. We do not reimburse or bear costs arising from installations should installation issues occur. mObridge can be contacted via email and also via its worldwide distribution network. -
Page 5: Welcome

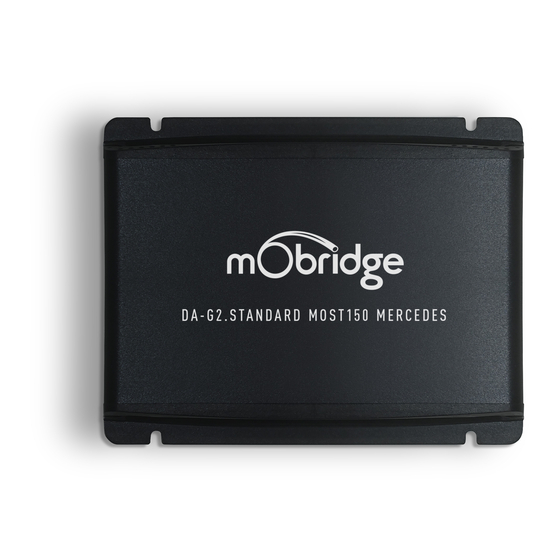

The mObridge MOST150 DA-G2 series are some of the most advanced DSP aftermarket audio integration interfaces available for MOST150 based vehicles and come with an easy to use Windows and macOS Graphical Interface for setting up and tuning the DA-G2 systems. -
Page 6: Overview
O V E R V IE W VEHICLE COMPATIBILIT Y The mObridge DA-G2 MOST150 unit is compatible with any Mercedes-Benz vehicles equipped with an NTG5.x head unit. Please check our website for the most up to date compatibility www.mobridge.us/support. Y E A R... -
Page 7: Kit Contents
KIT CONTENTS DA-G2.Entry MOST150 Kit The mObridge DA-G2.Entry MOST150 kit contains the following items: DA-G2 MOST150 unit Female 2+0 MOST connector for harness extension Power, Ground & Remote wiring harness Free software download from mObridge DSP PC MOST ‘T’ piece harness Application on our website www.mobridge.us... -
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS I N P U T Digital Input MOST150 Optical O U T P U T Digital Outputs TOSLINK (24bit 48kHz) Frequency Response (Digital) 20Hz - 24KHz Analog Outputs 10 Channels (RCA) Output Voltage (Peak) 7.2V Output Voltage (RMS) 3.6V Analog Output Type Single-Ended... -
Page 9: Hardware Installation
H ARD W AR E I NS TA L LA TIO N SYSTEM L AYOUT | DA-G2.ENTRY MOST150 TOSlink Fiber Optic From other MOST Components (if applicable) Aftermarket Amplifier From OEM MOST radio or amplifier (removed) FOR DA-G2 INSTALLATIONS, THE FACTORY AMPLIFIER MUST BE DISCONNECTED (IF EQUIPPED) EQ | Processor Analog RCA... -
Page 10: G2.Standard Most150 And Da-G2.Pro Most150
SYSTEM LAYOUT | DA-G2.STANDARD MOST150 & DA-G2.PRO MOST150 FOR DA-G2 INSTALLATIONS,THE FACTORY AMPLIFIER MUST BE DISCONNECTED (IF EQUIPPED) From other MOST Components (if applicable) Fiber Optic Aftermarket Amplifier From OEM MOST radio or amplifier (removed) Channel 1 Channel 2 Channel 3 Channel 4 Channel 5 Channel 6... -
Page 11: Installation Guide
DA-G2 MOST150 to the MOST loop. * NOTE: with options (b) and (c), you must reprogram the system to use the external amplifier for the DA-G2 MOST150 to operate properly. -
Page 12: Dip Switches
There are 6 dip switches on the MOST150 DA-G2 unit. If the vehicle has a Burmester amplifier, then the DA-G2 MOST150 requires the dip switches to be changed to the Burmester setting to be compatible on MOST150 as shown in the table below. -
Page 13: Software Update
Windows and macOS. The mObridge DSP can be downloaded from support on our website The mObridge DA-G2 MOST150 unit will need to be www.mobridge.us/support connected in the car and powered up for the unit to be updated. Once it has connected to... - Page 14 Once the DA-G2 MOST150 is connected via the GUI we can just click on the ‘Connected” in the top right-hand corner and this will bring us to the update page as seen below (FIG 02). 0.00Hz 0.00Hz Default Default Preset 01...
-
Page 15: Speaker Mapping
SPEAKER MAPPING Once the DA-G2 MOST150 unit is connected to the mObridge DSP application, you will see the below screen (FIG 03). Default Preset 01 0.00Hz C O N N E C T E D C O N F I G U R A T I O N... -
Page 16: Saving Setups & Presets
‘Input SAVING SETUPS & PRESETS The DA-G2 MOST150 has four different presets and these can be tuned individually. The channel mapping will remain across all four presets and will also apply The DA-G2 MOST150 will automatically save setups upon shutdown of the MOST system. - Page 17 You can save a backup of all of your presets by simply clicking the ‘File Button’ on the top menu bar and then ‘Save As’ as shown in the screen on the previous page (FIG 04). This will save a backup of your setup across all four presets and this file can be used to load in saved settings.
- Page 18 Please be receiver is connected. aware that mObridge does not have access to OEM vehicle data bases. When fitting a DA Consult the dealer or an experienced radio/TV product to the vehicle some features such as technician for help.
