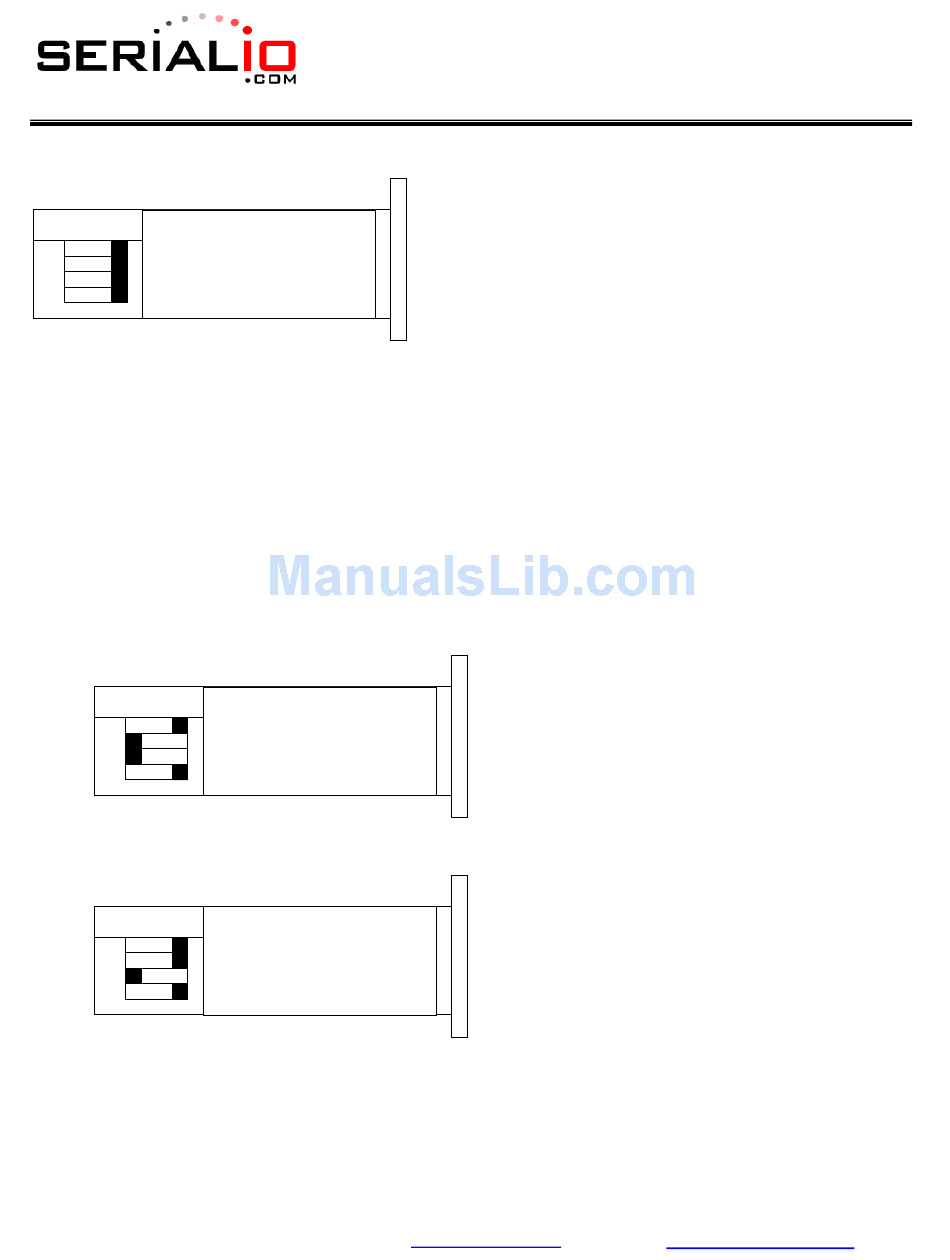

10 BlueSnap Configuration Switches

ON - OFF BOTTOM SIDE
4- Default baud(9600/ 115k)
3- AUTO MASTER
2 - AUTO DISCOVER
1 – FACTORY DEFAULTS
1- FACTORY DEFAULTS- Set this switch ON, power up unit, and toggle the switch from ON to OFF 3 times to return the unit
to factory settings.
2-AUTO DISCOVER MODE – In Slave mode, sets a special class of device which is used by a remote Master to auto connect.
IF Switch 3 also SET, the device performs a search, stores, and connects to a remote slave which has this switch 2 set .
3- AUTO MASTER MODE- BlueSnap acts as master, auto-connect to a stored remote address. First set the BT address of the
device to connect to using the SR command. or, have BlueSnap auto discover and connect by via Switch 3 AND Switch 2.
4- DEFAULT BAUD RATE - OFF = 115K (factory setting), ON = 9600. Overridden by software configuration.

Instant Cable Replacement Example

MASTER
ON - OFF
SLAVE
ON - OFF
1. Set switches as shown above.
2. Power up both devices
3. Master finds and store slave address, and auto connects.
4. Set Switch 2 on both Master and Slave back to OFF.
Cedar Park, TX, USA
BlueSnap Commands Version 4.81SIO,
BOTTOM SIDE
4- Default baud(9600/ 115k)
3- AUTO MASTER
2 - AUTO DISCOVER
1 – FACTORY DEFAULTS
BOTTOM SIDE
4- Default baud(9600/ 115k)
3- AUTO MASTER
2 - AUTO DISCOVER
1 – FACTORY DEFAULTS
•
